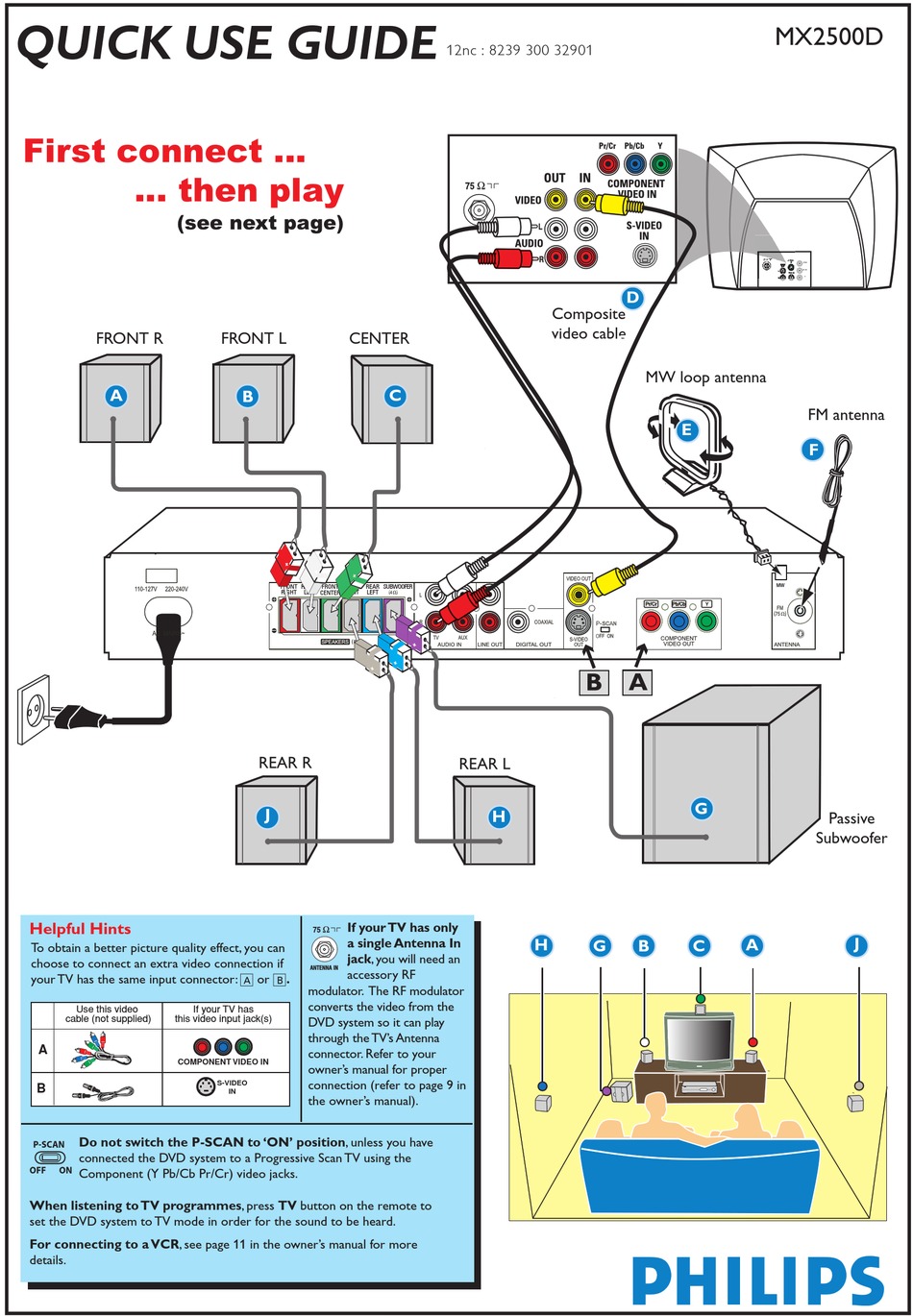

QUICK USE GUIDE
First connect ...
... then play
(see next page)
FRONT R
A
Helpful Hints
To obtain a better picture quality effect, you can
choose to connect an extra video connection if
your TV has the same input connector: A or B.
Use this video
cable (not supplied) this video input jack(s)
A
COMPONENT VIDEO IN
B
Do not switch the P-SCAN to 'ON' position, unless you have
P-SCAN
connected the DVD system to a Progressive Scan TV using the
OFF ON
Component (Y Pb/Cb Pr/Cr) video jacks.
When listening to TV programmes, press TV button on the remote to
set the DVD system to TV mode in order for the sound to be heard.
For connecting to a VCR, see page 11 in the owner's manual for more
details.
FRONT L CENTER
B
FRONT FRONT FRONT REAR REAR
RIGHT LEFT CENTER RIGHT
REAR R
J
If your TV has only
a single Antenna In
jack, you will need an
ANTENNA IN
accessory RF
modulator. The RF modulator
converts the video from the
If your TV has
DVD system so it can play
through the TV's Antenna
connector. Refer to your
owner's manual for proper
S-VIDEO connection (refer to page 9 in
IN
the owner's manual).
