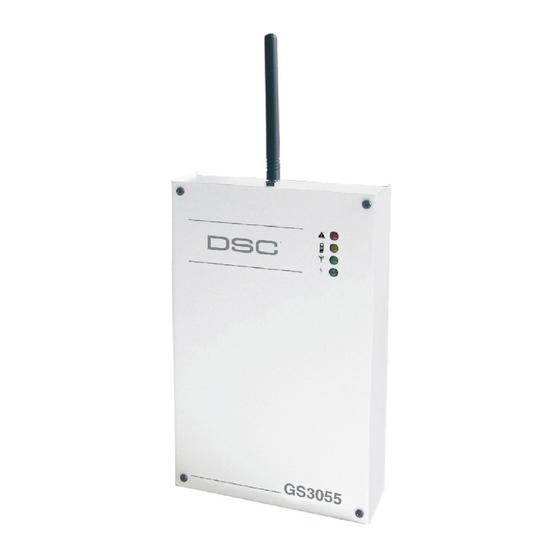

- Page 1 GS3055-I GSM-GPRS INTERFACE INSTALLATION MANUAL WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer.
-
Page 2: Table Of Contents
FEATURES ........................ 1 Technical Specifications ..................... 1 Ratings ........................1 Description ......................... 2 IDENTIFICATION OF PARTS ..................3 INSTALLING THE GS3055-I ..................4 CONNECTING THE GS3055-I ..................4 STATUS LEDS ......................5 OPERATING PRINCIPLES ..................6 Simulated Land Line Mode ..................6 Sequence ........................ -
Page 3: Introduction
• 4 input lines • GPRS/Internet communication with Sur-Gard System III / II TECHNICAL SPECIFICATIONS The input voltage to the GS3055-I can be drawn from the Control Panel or provided by an external UL Listed power supply rated for the application. RATINGS... -
Page 4: Description
Description This GS3055-I manages transmissions to a central station and can simulate the land line in the event of trouble (land line down) or even substitute the land line completely in areas where the GSM service is provided and where the land line is not available. -
Page 5: Identification Of Parts
IDENTIFICATION OF PARTS The numbers in square brackets [ [ [ [ [ ] ] ] ] ] in this manual refer to the main parts of the GS3055-I (see Fig.1 below) described in this section. LOCK OPEN PGM1 PGM2... -
Page 6: Installing The Gs3055-I
INSTALLING THE GS3055-I CONNECT 24 Enrollment Information Only authorized dealers can enroll a GS3055-I with CONNECT 24. Dealer application forms and additional information on the CONNECT 24 Voice Response Unit can be found at the CONNECT 24 web site www.connect24.com .connect24.com... -
Page 7: Status Leds
. This needs to be added to the GS3055-I cur . This needs to be added to the GS3055-I cur . This needs to be added to the GS3055-I curr r r r r ent when deter ent when deter... -
Page 8: Operating Principles
The GS3055-I will not switch during ongoing calls Sequence •... -
Page 9: Activating The Outputs
The GS3055-I has 4 open collector outputs capable of a maximum of 50mA. Internal events on the GS3055-I can trigger the outputs to turn on an LED or activate an input on the host panel. The default settings are as follows:... -
Page 10: Appendix
APPENDIX... -
Page 12: Installation Manual
Subpart "B" of Part 15 of FCC Rules, which are DSC c/o APL Logistics, 757 Douglas Hill Rd., Lithia Springs, GA 30122 designed to provide reasonable protection against such interference in any Additional Information residential installation.
