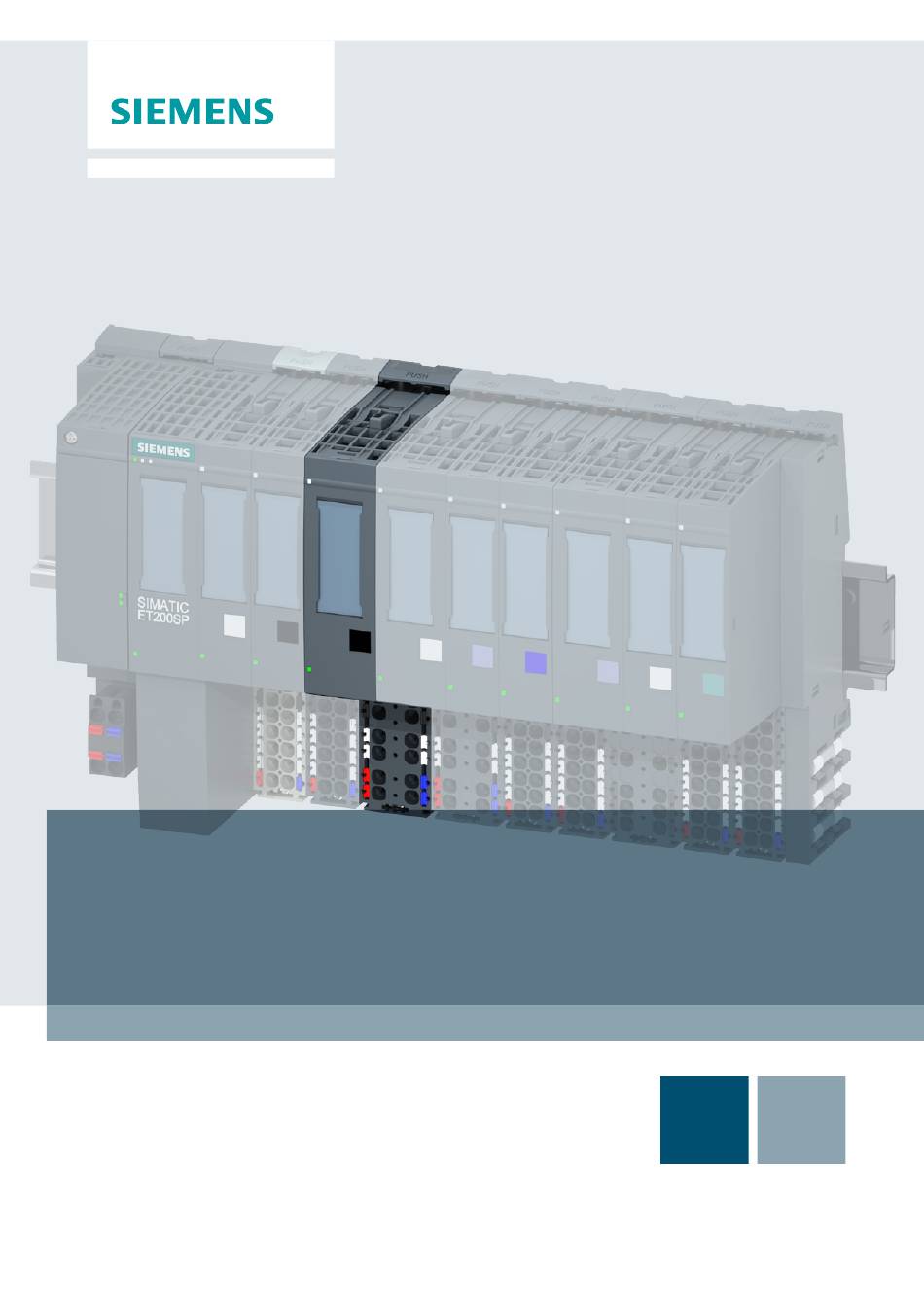

- Page 1 SIMATIC ET 200SP Digital output module DQ 4x24..230VAC/2A ST (6ES7132-6FD00-0BB1) Manual Edition 02/2014 Answers for industry.
- Page 2 ___________________ DQ 4x24..230VAC/2A ST Preface ___________________ Guide to documentation ___________________ Product overview SIMATIC ___________________ Wiring ET 200SP Parameter ___________________ DQ 4x24..230VAC/2A ST assignment/addressing digital output module ___________________ (6ES7132-6FD00-0BB1) Interrupts/diagnostics alarms Manual ___________________ Technical specifications ___________________ Parameter data record 02/2014 A5E32043575-AA...
- Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 4: Preface
Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. -
Page 5: Table Of Contents
Table of contents Preface ..............................3 Guide to documentation .......................... 5 Product overview ............................ 7 Properties ............................7 Wiring ..............................9 Terminal assignment ........................9 Block diagram ..........................11 Parameter assignment/addressing ......................12 Parameters ..........................12 Explanation of parameters ......................13 Address space .......................... -
Page 6: Guide To Documentation
Documentation for digital output module DQ 4×24..230VAC/2A ST Topic Documentation Key content System description System manual ET 200SP distributed Application planning • I/O system Installation • (http://support.automation.siemens.co Wiring • m/WW/view/en/58649293) Commissioning • Designing interference- Function manual Designing Basics • free controllers... - Page 7 Guide to documentation SIMATIC manuals All of the current manuals for SIMATIC products are available for download free of charge from the Internet (http://www.siemens.com/simatic-tech-doku-portal). DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA...
-
Page 8: Product Overview
Product overview Properties Order number 6ES7132-6FD00-0BB1 View of the module Figure 2-1 View of the DQ 4×24..230VAC/2A ST module DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA... - Page 9 The following accessories must be ordered separately: ● Labeling strips ● Color identification labels ● Reference identification label You can find additional information on the accessories in the ET 200SP Distributed I/O System (http://support.automation.siemens.com/WW/view/en/58649293) system manual. DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA...
-
Page 10: Wiring
Wiring Terminal assignment General pin assignment NOTICE Dangerous voltage. Risk of death or serious injury. Prior to working on the system and module, always disconnect them from the power supply. Note Limiting overvoltage You must ensure overvoltage is limited to 1 kV for the encoder supply. Note Power limitation To limit power, each input voltage must have a fuse with a maximum rating of 10 A tripping... - Page 11 Wiring 3.1 Terminal assignment Table 3- 1 Pin assignment for DQ 4×24..230VAC/2A ST Pin assignment for DQ 4×24..230VAC/2A ST (6ES7132-6FD00-0BB1) Terminal Assign- Terminal Assign- Description BaseUnit Color identification label ment ment (terminals 1 to 12) DQn: Output signal, • channel n L1: Encoder supply 24 to 230 •...
-
Page 12: Block Diagram
Wiring 3.2 Block diagram Block diagram Block diagram Figure 3-1 Block diagram DQ 4×24..230VAC/2A ST DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA... -
Page 13: Parameter Assignment/Addressing
Parameter assignment/addressing Parameters DQ 4×24..230VAC/2A ST parameters The following table lists the configurable parameters. The effective range of the configurable parameters depends on the type of configuration. The following configurations are possible: ● Distributed operation on PROFINET IO in an ET 200SP system ●... -
Page 14: Explanation Of Parameters
Determines whether a channel is enabled or disabled. Reaction to CPU STOP Determines the behavior of the module in the event of a CPU STOP. See also ET 200SP distributed I/O system (http://support.automation.siemens.com/WW/view/en/58649293) DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA... -
Page 15: Address Space
Parameter assignment/addressing 4.3 Address space Address space Configuration options with the DQ 4×24..230VAC/2A ST The following configurations are possible: ● Configuration 1: Without value status ● Configuration 2: With value status Evaluating the value status An additional byte is allocated in the input address space if you enable the value status for the digital module. -
Page 16: Interrupts/Diagnostics Alarms
Interrupts/diagnostics alarms Status and fault displays LED displays The figure below shows the LED displays (status and fault displays) of the DQ 4×24..230VAC/2A ST. ① DIAG (green/red) ② Channel status (green) ③ PWR (green) Figure 5-1 LED display DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA... - Page 17 Interrupts/diagnostics alarms 5.1 Status and fault displays Meaning of the LEDs The tables below explain the meaning of the status and fault displays. LED DIAG Table 5- 1 LED DIAG fault display LED DIAG Meaning Backplane bus supply of the ET 200SP not OK Off ...
-
Page 18: Load Voltage Status
Interrupts/diagnostics alarms 5.2 Load voltage status Load voltage status Load voltage status The firmware of the module cannot detect the status of the load voltage. If the "Load voltage status" function tied to the server module is used, a "1" is always displayed in the status bit for a slot with the DQ 4×24..230VAC/2A ST. -
Page 19: Technical Specifications
Technical specifications Technical specifications DQ 4×24...230VAC/2A ST technical specifications 6ES7132-6FD00-0BB1 General information Usable BaseUnits BU type B1 Product function I&M data Yes; I&M0 to I&M3 Engineering with STEP 7 TIA Portal can be configured/integrated V13 / V13 as of version STEP 7 can be configured/integrated as of version V5.5 SP3 / V5.5 SP4 PROFIBUS as of GSD version/GSD revision GSD as of revision 5... - Page 20 Technical specifications 6.1 Technical specifications 6ES7132-6FD00-0BB1 Switching capacity of outputs With resistive load, max. With lamp load, max. 100 W Output voltage for signal "1", min. 20.4 V Output current for signal "1" rated value for signal "1" permissible range, min. 10 mA For signal "1"...
- Page 21 Between the channels and the backplane bus Insulation Insulation tested with 2545 V DC 2 s (routine test) Dimensions Width 20 mm Weights Weight, approx. 50 g Dimensional drawing See the manual ET 200SP BaseUnits (http://support.automation.siemens.com/WW/view/en/59753521) DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA...
-
Page 22: Parameter Data Record
Parameter data record Parameter assignment and structure of parameter data record The data records of the module have an identical structure, regardless of whether you configure the module with PROFIBUS DP or PROFINET IO. Parameter assignment in the user program You can change the parameters of the module in RUN. - Page 23 Index Structure of data record 128 Figure A-1 Structure of data record 128 Header information The figure below shows the structure of the header information. Figure A-2 Header information DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA...
- Page 24 Index Parameters The figure below shows the structure of the parameters for channels 0 to 3. You enable a parameter by setting the corresponding bit to "1". Figure A-3 Structure byte x to x+1 for the channels 0 to 3 DQ 4x24..230VAC/2A ST digital output module (6ES7132-6FD00-0BB1) Manual, 02/2014, A5E32043575-AA...
