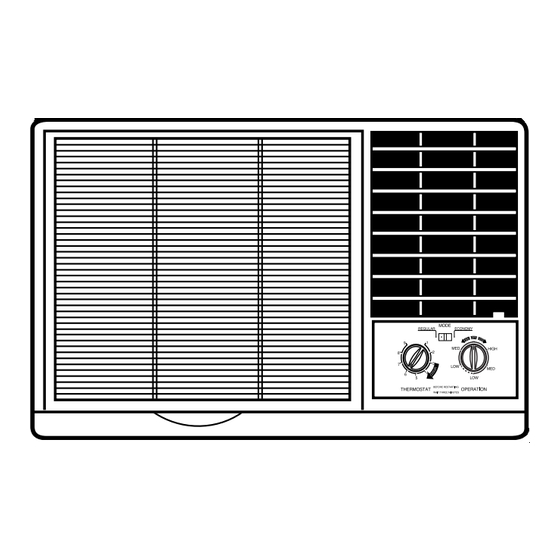

Room Air Conditioner
OWNER'S MANUAL
Please read the operating instructions and safety precautions
carefully and thoroughly before installing and operating your room
air conditioner.
MODEL : LW-C1230XL
Website: http://www.LGEservice.com
E-mail: http://www.LGEservice.com/techsup.html

Advertisement

Table of Contents
loading

Related Manuals for Goldstar LW-C1230XL

Summary of Contents for Goldstar LW-C1230XL

  • Page 1 Website: http://www.LGEservice.com E-mail: http://www.LGEservice.com/techsup.html Room Air Conditioner OWNER'S MANUAL Please read the operating instructions and safety precautions carefully and thoroughly before installing and operating your room air conditioner. MODEL : LW-C1230XL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FEATURES ............................2 OPERATING ............................3 FUNCTION ........................... 3 VENTILATION ..........................4 TO CONTROL AIR DIRECTION ....................4 HOW TO SECURE THE DRAIN PIPE ..................5 AIR FILTER CLEANING ....................... 5 ELECTRICAL DATA ........................... 6 BEFORE CALLING FOR SERVICE ....................6 INSTALLATION INSTRUCTIONS ......................

  • Page 3: Operating

    OPERATING • WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. • CAUTION When the air conditioner has been performing its cooling operation and is turned off or set to the fan position, wait at least 3 minutes before resetting to the cooling operation again.

  • Page 4: Ventilation

    VENTILATION The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions. When fresh air is necessary in the room, set the ventilation lever to the OPEN position. The damper is opened and room air is exhausted. Part £...

  • Page 5: How To Secure The Drain Pipe

    HOW TO SECURE THE DRAIN PIPE In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the DRAIN CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Drain pipe Drain cap AIR FILTER CLEANING The air filter should be checked at least twice a month to see if cleaning is necessary.

  • Page 6: Electrical Data

    ELECTRICAL DATA Line Cord Plug Use Wall Receptacle Power Supply Use 20 AMP time delay fuse or circuit Do not, under any breaker. circumstances, cut or remove the grounding prong from the plug. Power supply cord with Standard 250V, 3-wire grounding 3-prong grounding plug receptacle rated 20A, 250V AC BEFORE CALLING FOR SERVICE...

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS SELECT THE BEST LOCATION 2. Install the unit a little slanted so the back is slightly lower than the front(about "). 1. To prevent vibration and noise, make sure the This will help force condensed water to flow to unit is installed securely and firmly the outside.
  • Page 8 SUGGESTED TOOL REQUIREMENTS SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL PREPARATION OF CHASSIS Shipping screws 1. Remove the screws which fasten the cabinet at both sides and at the back. 2. Slide the unit out from the cabinet by gripping the base pan handle and pulling forward while bracing the cabinet.
  • Page 9 3. Loosely assemble the sill support using the OUTDOOR INDOOR parts in Fig. 3. Sill Support ¤Ł Nut ¤Œ Fig. 3 Bolt ¤Ø 4. Select the position that will place the sill support near the outer most point on sill (See Fig.

  • Page 10: Front Of The Cabinet. Push The Grille In Until It Snaps Into Place.(See Fig

    10. Slide the unit into the cabinet.(See Fig. 7) CAUTION: For security purpose, reinstall screws(Type A) at cabinet's sides. Power cord Screw(Type A) Fig. 7 Screw(Type A) 11. Cut the foam-strip ¤ to the proper length and insert between the upper window sash and the lower window sash.

  • Page 11: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this air conditioner. Electrical Information For Your Safety The complete electrical rating of your new room Do not store or use gasoline or other flammable air conditioner is stated on the quality label. vapors and liquids in the vicinity of this or any Refer to the rating when checking the electrical other appliance.
  • Page 12 GOLDSTAR AIR CONDITIONER LIMITED WARRANTY LG Electronics U.S.A., Inc. will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the date of original purchase. This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S.
  • Page 13 Printed in Korea P/NO : 3828AR3924S...
