PSB241.doc
Title: TR 4500/ TR 3900 - Rewaxing Procedure with Waxing Bottle
Date:
May 12, 2000
Bulletin No.
635-0241
Revision Letter:
A
Date of Last Revision
N/A

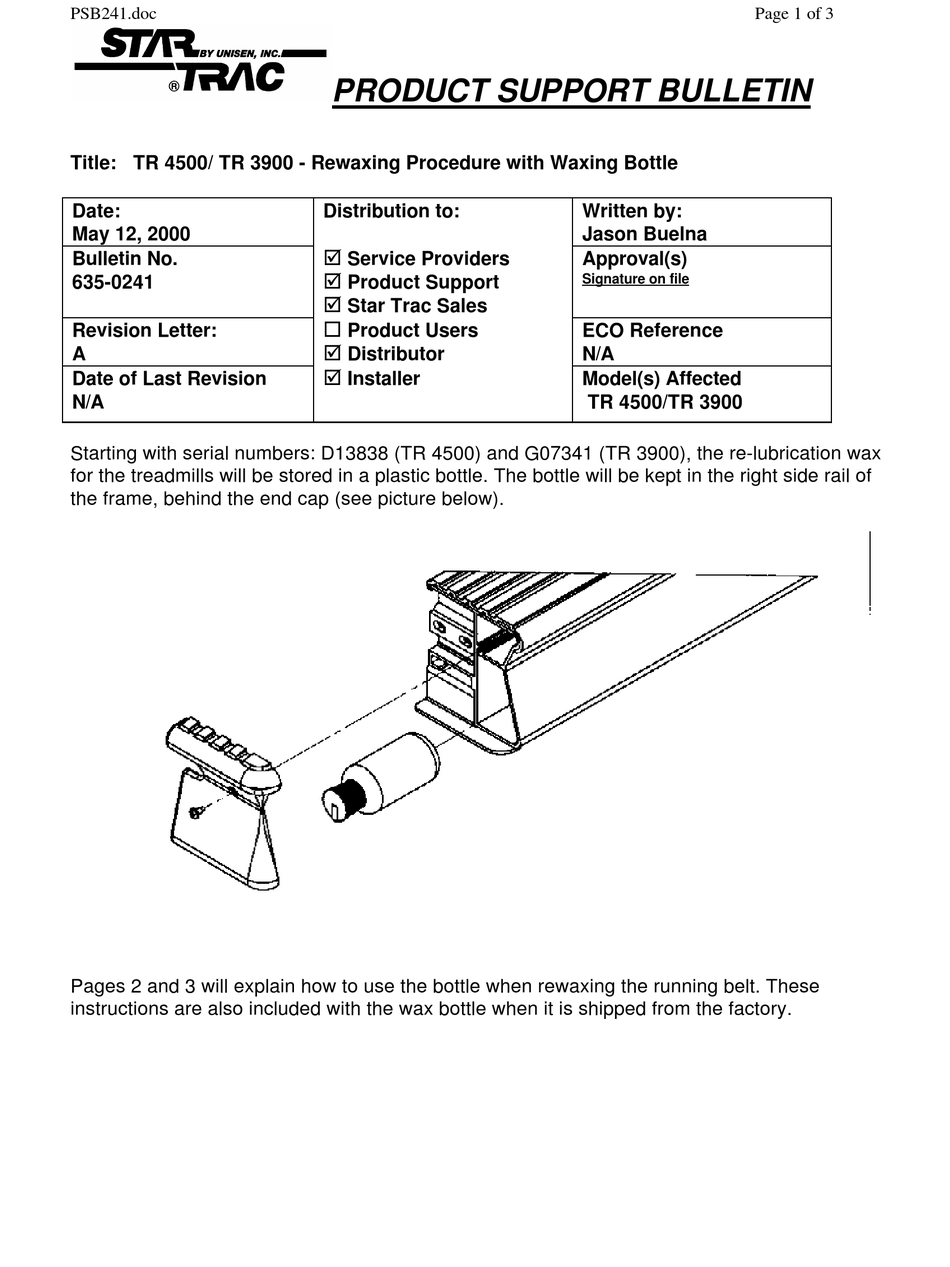

Starting with serial numbers: D13838 (TR 4500) and G07341 (TR 3900), the re-lubrication wax
for the treadmills will be stored in a plastic bottle. The bottle will be kept in the right side rail of
the frame, behind the end cap (see picture below).
Pages 2 and 3 will explain how to use the bottle when rewaxing the running belt. These
instructions are also included with the wax bottle when it is shipped from the factory.
PRODUCT SUPPORT BULLETIN
Distribution to:
þ
Service Providers
þ
Product Support
þ
Star Trac Sales
¨
Product Users
þ
Distributor
þ
Installer
Page 1 of 3
Written by:
Jason Buelna
Approval(s)
Signature on file
ECO Reference
N/A
Model(s) Affected
TR 4500/TR 3900
Advertisement
Related Manuals for Star Trac TR 3900
Summary of Contents for Star Trac TR 3900
- Page 1 Model(s) Affected TR 4500/TR 3900 Starting with serial numbers: D13838 (TR 4500) and G07341 (TR 3900), the re-lubrication wax for the treadmills will be stored in a plastic bottle. The bottle will be kept in the right side rail of the frame, behind the end cap (see picture below).
- Page 2 8. CLEANUP: Power OFF the treadmill. Remove any excess wax with diluted cleaner (409) and towel. TIP: Blow away extra wax first (like dust), then wipe. 9. CALL: If you need additional information or assistance, call Star Trac at 1-800-503-1221. SEE THE PAGE 2 PAGE FOR RE-WAX MESSAGE OR LED UPDATING INSTRUCTIONS.
- Page 3 The display will go back to “LST DCK” and to the right of those words will be the accumulated distance. 6. Press the “STOP” key to exit the mode. 7. The “REWAX BELT” message should be gone. CALL STAR TRAC AT 1-800-503-1221 IF YOU NEED ADDITIONAL ASSISTANCE.
