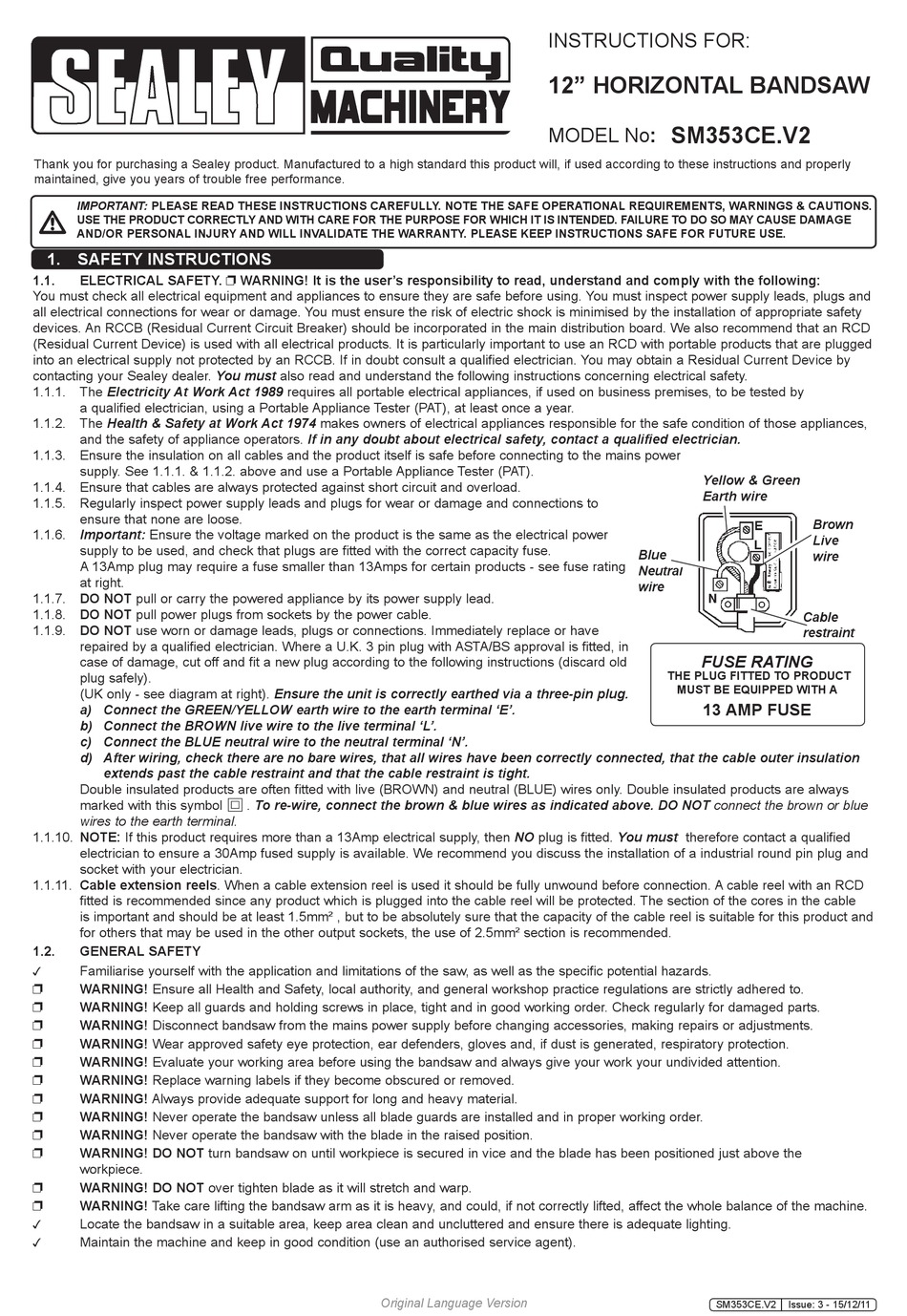

Sealey Quality MACHINERY SM353CE.V2 Instructions

thank you for purchasing a sealey product. manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL SAFETY.  WARNING! It is the user's responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear or damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An rccB (residual current circuit Breaker) should be incorporated in the main distribution board. We also recommend that an rcD
(residual current Device) is used with all electrical products. It is particularly important to use an rcD with portable products that are plugged
into an electrical supply not protected by an rccB. If in doubt consult a qualified electrician. You may obtain a residual current Device by
contacting your sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. the Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified electrician, using a Portable Appliance tester (PAt), at least once a year.
1.1.2. the Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances,
and the safety of appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. see 1.1.1. & 1.1.2. above and use a Portable Appliance tester (PAt).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. regularly inspect power supply leads and plugs for wear or damage and connections to
ensure that none are loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power
supply to be used, and check that plugs are fitted with the correct capacity fuse.
A 13Amp plug may require a fuse smaller than 13Amps for certain products - see fuse rating
at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damage leads, plugs or connections. Immediately replace or have
repaired by a qualified electrician. Where a u.K. 3 pin plug with AstA/Bs approval is fitted, in
case of damage, cut off and fit a new plug according to the following instructions (discard old
plug safely).
(uK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the gREEN/YEllOW earth wire to the earth terminal 'E'.
b) Connect the bROWN live wire to the live terminal 'l'.
c) Connect the bluE neutral wire to the neutral terminal 'N'.
d) After wiring, check there are no bare wires, that all wires have been correctly connected, that the cable outer insulation
extends past the cable restraint and that the cable restraint is tight.
Double insulated products are often fitted with live (BroWn) and neutral (BLuE) wires only. Double insulated products are always
marked with this symbol
wires to the earth terminal.
1.1.10. NOTE: If this product requires more than a 13Amp electrical supply, then NO plug is fitted. You must therefore contact a qualified
electrician to ensure a 30Amp fused supply is available. We recommend you discuss the installation of a industrial round pin plug and
socket with your electrician.
1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an rcD
fitted is recommended since any product which is plugged into the cable reel will be protected. the section of the cores in the cable
is important and should be at least 1.5mm² , but to be absolutely sure that the capacity of the cable reel is suitable for this product and
for others that may be used in the other output sockets, the use of 2.5mm² section is recommended.
1.2. GENERAL SAFETY
familiarise yourself with the application and limitations of the saw, as well as the specific potential hazards.

WARNING! Ensure all Health and safety, local authority, and general workshop practice regulations are strictly adhered to.

WARNING! Keep all guards and holding screws in place, tight and in good working order. check regularly for damaged parts.

WARNING! Disconnect bandsaw from the mains power supply before changing accessories, making repairs or adjustments.

WARNING! Wear approved safety eye protection, ear defenders, gloves and, if dust is generated, respiratory protection.

WARNING! Evaluate your working area before using the bandsaw and always give your work your undivided attention.

WARNING! replace warning labels if they become obscured or removed.

WARNING! Always provide adequate support for long and heavy material.

WARNING! never operate the bandsaw unless all blade guards are installed and in proper working order.

WARNING! never operate the bandsaw with the blade in the raised position.

WARNING! DO NOT turn bandsaw on until workpiece is secured in vice and the blade has been positioned just above the

workpiece.
WARNING! DO NOT over tighten blade as it will stretch and warp.

WARNING! take care lifting the bandsaw arm as it is heavy, and could, if not correctly lifted, affect the whole balance of the machine.

Locate the bandsaw in a suitable area, keep area clean and uncluttered and ensure there is adequate lighting.

maintain the machine and keep in good condition (use an authorised service agent).

. To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue
Original Language Version
InstructIons for:
12" HORIZONTAL BANDSAW
SM353CE.V2
moDEL no:
Yellow & green
Earth wire
blue
Neutral
wire
FuSE RATINg
THE PLUG FITTED TO PRODUCT
MUST BE EQUIPPED WITH A
13 AMP FUSE
sm353cE.V2
brown
live
wire
Cable
restraint
Issue: 3 - 15/12/11
