40GS-KLS Series
GAS SHORT STATIONARY FLOOR KETTLE
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA
Manufacture Service Questions: 866-518-3977
PART NUMBER 170096 REV A (04/11)

Advertisement

Table of Contents
loading

Summary of Contents for Blodgett 40GS-KLS Series

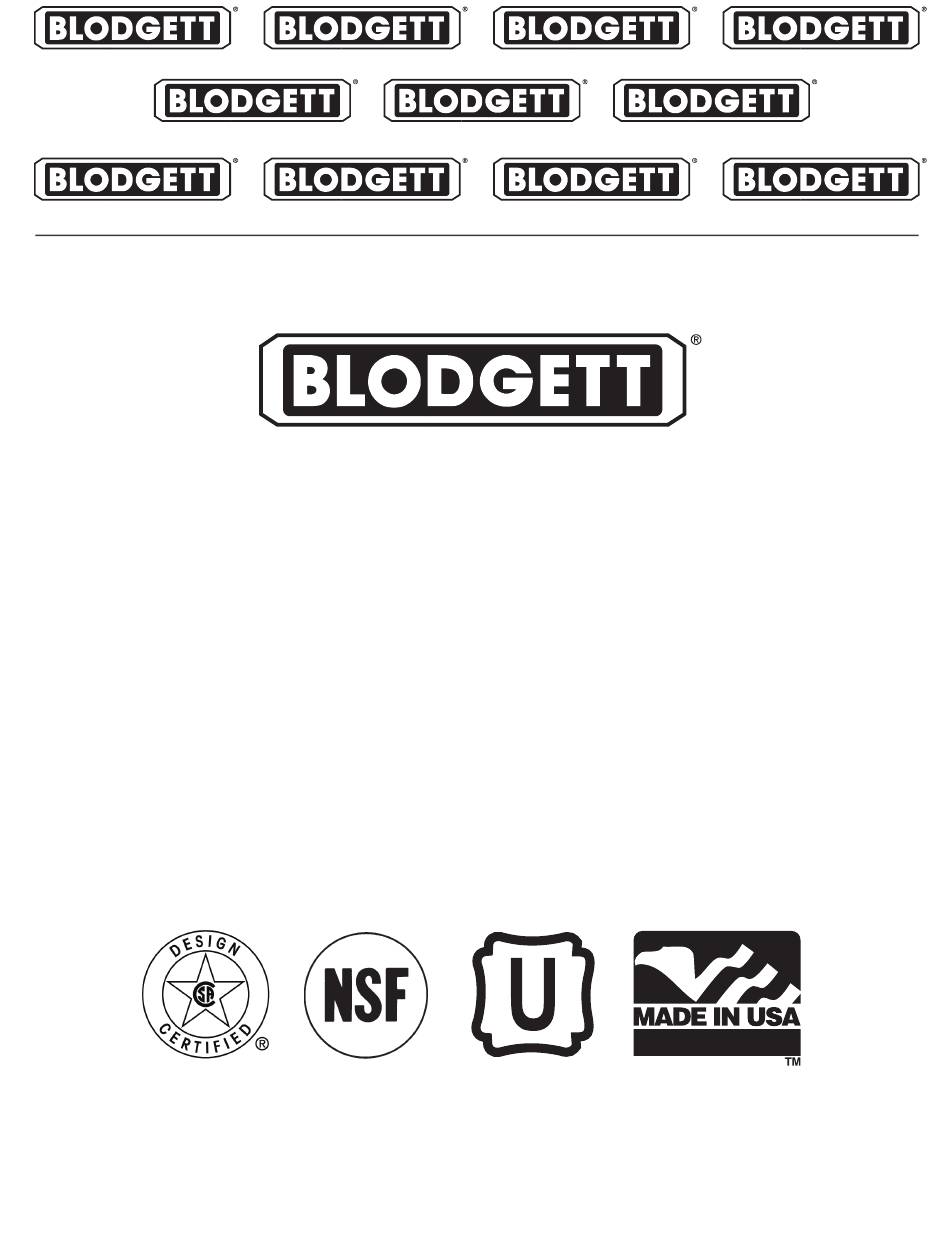

  • Page 1 40GS-KLS Series GAS SHORT STATIONARY FLOOR KETTLE INSTALLATION - OPERATION - MAINTENANCE BLODGETT OVEN COMPANY www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Manufacture Service Questions: 866-518-3977 PART NUMBER 170096 REV A (04/11)
  • Page 2 THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE vAPORS AND LIqUIDS IN THE vICINITY OF THIS OR ANY OTHER APPLIANCE. POST IN A PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED IN THE EvENT USER SMELLS GAS.
  • Page 3: Important Operator Warnings

    IMPORTANT - READ FIRST - IMPORTANT WARNING: FAILURE TO DISCONNECT POWER BEFORE SERvICING COULD RESULT IN ELECTROCUTION AND DEATH. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL. ANY OTHER USE COULD RESULT IN SERIOUS PERSONAL INjURY OR DAMAGE TO THE EqUIPMENT AND WILL vOID WARRANTY.
  • Page 4 IMPORTANT - READ FIRST - IMPORTANT WARNING: FAILURE TO PERIODICALLY CHECK PRESSURE RELIEF vALvE OPERATION COULD RESULT IN PERSONAL INjURY AND/OR DAMAGE TO EqUIPMENT. WARNING: WHEN TESTING, AvOID EXPOSURE TO THE STEAM BLOWING OUT OF THE PRESSURE RELIEF vALvE. DIRECT CONTACT COULD RESULT IN SEvERE BURNS. WARNING: TO AvOID INjURY, READ AND FOLLOW ALL PRECAUTIONS STATED ON THE LABEL OF THE WATER TREATMENT COMPOUND.
  • Page 5: Table Of Contents

    Table of Contents Important Operator Warnings ............. page 1-2 References..................page 3 Equipment Description............... page 4-5 Inspection & Unpacking ..............page 6 Installation .................. page 7-8 Initial Start-Up................page 9 Operation ................page 10-11 Sequence of Operation ..............page 12 Maintenance................
  • Page 6: Equipment Description

    Equipment Description FIRING RATE, BTU/HR Blodgett 40GS-KLS steam kettles are stainless steel, floor mounted kettles with a self- MODEL Ignition Natural Propane contained steam source heated by gas. A closed steam jacket covers the lower 2/3 of the kettle. Heat from the gas burner boils water in the jacket to produce steam under pressure.
  • Page 7 Equipment Description For kettles, options include: Larger (3 inch) draw-off * Solid disc strainer or strainer with 1/8 inch perforations Water Fill faucet Basket Kettle brush kit Gallon etch marks* Flanged feet * Factory installed options Kettle Kettle Jacket Kettle Model Inside Overall Width...
  • Page 8: Inspection & Unpacking

    Inspection & Unpacking WARNING The unit arrives completely assembled, except for the TDO valve, flue stack and flue THIS UNIT MUST BE INSTALLED BY elbow which are usually packed separately and shipped inside the kettle.. The unit PERSONNEL WHO ARE QUALIFIED TO is strapped on a skid in a heavy box.
  • Page 9: Installation

    Installation The unit should be installed in a ventilated room for efficient performance. items WARNING which may obstruct or restrict the flow of air for combustion and ventilation must be THIS UNIT MUST BE INSTALLED BY removed. The area directly around the appliance must be cleared of all combustible PERSONNEL WHO ARE QUALIFIED TO materials.
  • Page 10 Installation 10. The internal gas lines of the unit were cleaned and closed off with a gas cock before the unit was shipped from the factory. Free all external gas lines of lint, dirt, metal chips, sealant, grease, oil, and other contaminants, before you connect the lines to the kettle.
  • Page 11: Initial Start-Up

    Initial Start-Up Now that the kettle has been installed, you should test it to ensure that it is operating correctly. Remove literature and packing materials from inside and outside of the unit. Install the TDO valve handle. Put a small amount of water into the kettle. Verify that kettle water level is normal and that kettle is holding vacuum in jacket.
  • Page 12: Operation

    Operation WARNING Controls ANY POTENTIAL USER OF THE EQUIPMENT Operator controls for the kettle are: MUST BE TRAINED IN SAFE AND CORRECT Manual gas valve which controls the supply of gas from the main line to OPERATING PROCEDURES. the unit. WARNING On-Off (toggle) switch.
  • Page 13 Operation CAUTION To Stop Kettle Heating DO NOT OVERFILL THE KETTLE WHEN Turn the thermostat dial to OFF. COOKING, HOLDING OR CLEANING. KEEP Turn the toggle switch OFF. LIQUIDS A MINIMUM OF 2-3” (5-8 cm) For a prolonged shut-down: BELOW THE RIM TO ALLOW FOR STIRRING, Follow the procedure above.
  • Page 14: Sequence Of Operation

    Sequence of Operation The following “action-reaction” outline is provided to help understand how the kettle works. When the power switch is turned on, it starts the spark igniter and opens the automatic valve for the pilot burner. The spark ignites a pilot flame, which heats the sensor.
  • Page 15: Maintenance

    Maintenance WARNING NOTICE: Contact an authorized representative when repairs are required. WHEN USING THE EQUIPMENT OR TESTING, AVOID ANY EXPOSURE TO THE A Maintenance & Service Log is provided at the back of this manual. Each time STEAM BLOWING OUT OF THE SAFETY maintenance is performed on your kettle, enter the date on which the work was done, VALVE.
  • Page 16 Maintenance WARNING Jacket Filling TO AVOID INJURY, READ AND FOLLOW ALL Every day, before you turn on the unit, make sure the water level is approximately PRECAUTIONS STATED ON THE LABEL OF in the center of the water gauge glass. The jacket was filled at the factory with the THE WATER TREATMENT COMPOUND.
  • Page 17 Maintenance Component Replacement When component replacement involves breaking a gas pipe connection, check the new connection with soap solution or an appropriate leak detector. DO NOT USE A FLAME TO TEST FOR LEAKS. Internal wiring is marked as shown on the circuit schematic drawings (inside control housing and in this manual).
  • Page 18: Cleaning

    Cleaning WARNING Suggested Tools KEEP WATER AND SOLUTIONS OUT OF Cleaner, such as Klenzade HC-10 or HC-32 from ECOLAB, Inc CONTROLS AND BURNERS. NEVER SPRAY OR Long- and short-handled kettle brushes in good condition HOSE THE CONTROL CONSOLE, ELECTRICAL Brush suitable for cleaning the draw-off port CONNECTIONS, ETC.
  • Page 19 Cleaning NOTICE 10. The outside of the unit may be polished with a recognized stainless steel NEVER LEAVE A SANITIZER IN CONTACT cleaner like “Zepper” from Zep Manufacturing Company. WITH STAINLESS STEEL SURFACES LONGER THAN 30 MINUTES. LONGER CONTACT CAN CAUSE CORROSION. 11.
  • Page 20: Troubleshooting

    Troubleshooting Your kettle will operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. If the actions suggested do not solve the problem, call your qualified Service Representative. If an item on the list is followed by a X , the work should be done by a qualified service representative.
  • Page 21 Troubleshooting WHAT TO CHECK SYMPTOM X indicates items which must be performed by an authorized technician. Spark is present but the Auth Service a. That the pilot valve is securely connected to terminals. X pilot will not light. Rep Only b.
  • Page 22: Parts List

    Parts List Description Part # HARDWARE SPARK IGNITION 139192 NAMEPLATE CLASS II 1” X 4-1/2” 003479 LONG PLATE, CAUTION 1-3/8 X 2-1/4” 008350 CHAIN SINGLE, JACK LINK #16 600” 009009 LONG SCREW, SHEET METAL PAN HD #12 008769 X 1/2” LG BRACKET, FAUCET MOUNTING 16 GA 009054 X 4-3/4”...
  • Page 23 Parts List Description Part # BURNER AND SENSOR ASSEMBLY 139195 (NATURAL GAS) BURNER AND SENSOR ASSEMBLY 140062 (PROPANE) ASM.BURNER MANIFOLD (NATURAL GAS) 139831 ASM. BURNER MANIFOLD (PROPANE) 140061 PILOT BRACKET 139181 ASM. PILOT BURNER (NATURAL GAS) 102258 ASM. PILOT BURNER (PROPANE) 104392 TUBE PILOT 139833...
  • Page 24 Parts List OM-40GS-KLS...
  • Page 25 Parts List OM-40GS-KLS...
  • Page 26 Parts List Description Part No. Description Part No. GAS VALVE, PIPING ASSY 139197 ELECTRICAL MOUNTING ASSEMBLY 139060 WATER LEVEL ELECTRODE 074665 ASM., ELECTRICAL PANEL 139187 ELECTRICAL COMPONENTS ASSEMBLY 139060 WATER LEVEL CONTROL BOARD 122192 PC BOARD MOUNTING POST 099901 IGNITION MODULE BOX ASSEMBLY 127334 FUSE BLOCK 077854...
  • Page 27: Electrical Schematic

    Electrical Schematic OM-40GS-KLS...
  • Page 28: Service Log

    Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Service Performed Performed By OM-40GS-KLS...
  • Page 29 Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Service Performed Performed By OM-40GS-KLS...
  • Page 30 OM-40GS-KLS...
  • Page 31 OM-40GS-KLS...
  • Page 32 BLODGETT OVEN COMPANY www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: 866-518-3977 PART NUMBER 170096 REV A (04/11)
