Page 1: Parts List

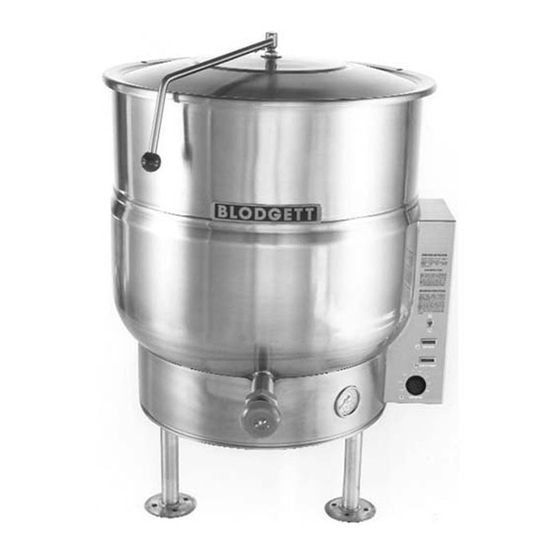

MODELS: KLT-E 20, 30, 40, 60, 80, 100 KLS-E 20, 30, 40, 60, 80, 100 KPS-E 20, 30, 40, 60, 80, 100 Revised June 18, 2007 BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com... - Page 2 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS FIGURE 1...
- Page 3 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NO. 40098 Hex Bolt, 5/16 - 18 x 3/4 inches 41367 Element Assembly, 208V, 12 kW 41368 Element Assembly, 220/380V, 12 kW 41369 Element Assembly, 240/416V, 12 kW 41370 Element Assembly, 480V, 12 kW 42221 Element Assembly, 600V, 12 kW...
- Page 4 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NO. 41006 Dial 40994 Bezel 41887 Thermostat 40151 “O” Ring 40907 Pressure Gauge 41609 Pressure Gauge Mounting Plate 43413 Hex Bolt, 5/16 - 18 x ½ inches 41565 Bottom Cover, (42473), KLT-20 41568 Bottom Cover, (43120), KLT-30 41571...
- Page 5 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NO. 42828 Copper Tube, 1/4 x 35", 100 Gal. 40943 Contactor, 208, 220, 240V - 12, 15, 18 kW 40943 Contactor, 380, 220/380, 416, 240/416, 480, 600V, -12, 15, 18 kW 40920 Contactor, 208, 220, 240V- 24 kW 40920...
- Page 6 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NO. 40548 Air Vent Assembly 41598 Control Box Cover (41256), 20 Gal. 41599 Control Box Cover (41257), 30 Gal. 41600 Control Box Cover (41258), 40 Gal. 41601 Control Box Cover (41259), 60 Gal. 41602 Control Box Cover (41260), 80 Gal.
- Page 7 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS TILT CONSOLE PARTS FIGURE 2...
- Page 8 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 41554 40101 41236 41095 40082 40266 40113 40132 40249 40123 40126 40258 41090 40108 40206 41586 42124 42125 41585 42013 40840 DESCRIPTION Hand Wheel Set Screw 3/8 -16 x ½ inches Tilt Shaft Segment Gear &...
- Page 9 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 40103 40100 41591 40816 40938 40742 42711 41071 40734 40733 42742 * 32. 40076 42342 41091 41092 * NOT SHOWN DESCRIPTION Bolt 3/8-16 x 1 inch Lock Washer 3/8 inch Block Bearing Micro Switch Bracket Micro Switch...
- Page 10 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 43254 40245 40371 40076 PARTS LIST FIGURE 3 DESCRIPTION Adjustable Flanged Foot Console Box Console Cover Screw 10 - 32 x ½ QUANTITY...
- Page 11 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS SPRING ASSIST HINGE ASSEMBLY FIGURE 4...
- Page 12 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 42112 41543 41546 43106 41100 41526 ** 6. 41535 41536 41537 41528 41529 41530 43107 41520 40098 40259 42713 ** 12. 41512 41513 41514 41515 41516 41517 ** SELECT AS REQUIRED. DESCRIPTION HINGE ASSEMBLY Lock Pin...
-
Page 13: Hinge Assembly
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 40259 ** 2. 42158 42159 42161 40109 43389 40111 41512 41513 41514 41515 41516 41517 * * SELECT AS REQUIRED HINGE ASSEMBLY FIGURE 5 DESCRIPTION Knob Handle Assembly, 20 Gallon Kettle Handle Assembly, 30 Gallon Kettle Handle Assembly, 40 Gallon Kettle Bolt... -
Page 14: Draw-Off Valve
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 40553 41809 40662 40559 40560 40562 40561 43246 DRAW-OFF VALVE FIGURE 6 DESCRIPTION 1 - ½" DRAW-OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC Handle, Stainless Steel Gland Nut Bonnet “O”... - Page 15 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS ITEM PART NUMBER 40554 41809 40662 40563 40564 40566 40565 42481 ITEM PART NUMBER 40556 40567 40568 40569 40570 40572 40571 43248 DESCRIPTION 2" DRAW-OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC Handle, Stainless Steel Gland Nut Bonnet...
- Page 16 PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS KLT, KLS, KPS SPRING ASSIST COVER ASSEMBLY FOR FIELD INSTALLATION ON KLT MODELS PART NUMBER 40701 40702 40703 40704 40705 40706 MODEL KLT-20 KLT-30 KLT-40 KLT-60 KLT-80 KLT-100...
