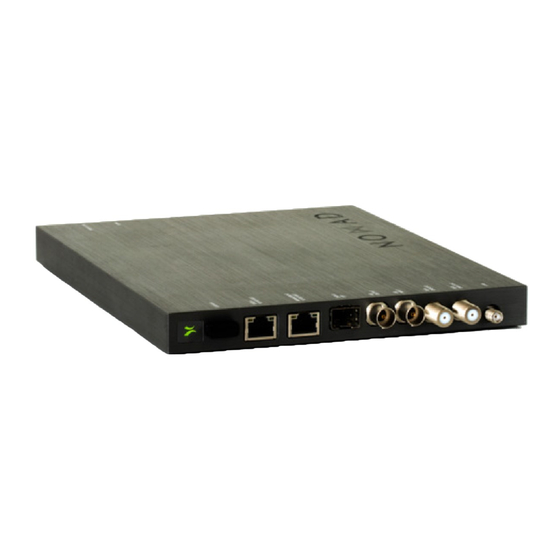

Bridge Technologies Nomad Quick Start Manual

QUICK START GUIDE
This guide provides details for quick installation of your NOMAD. For further
information download the User Manual and refer to section 4.1.
www.bridgetech.tv - click Login
user name: customer
password: xmas4u
Health and safety
(refer to User Manual)
- NOMAD is intended for installation in restricted access areas.
- Disposal should be handled according to all national laws and regulations.
- Prevent the system from overheating, do not operate it in an area that exceeds
the maximum ambient temperature of 45 degrees Celsius.
- Do not place other objects on top of the NOMAD.
- Air needs to flow freely underneath the unit. Check that the feet of the unit
are attached.
- NOMAD requires short-circuit (overcurrent) protection. Ensure that the
protective device is rated no greater than 120 VAC, 15 A; 240 VAC, 16 A.
- Observe occupational health and safety rules when handling.
Serial number
The serial number can be found at the bottom of the unit and on the shipping
box. It is also available via the web GUI under About License.
Register the NOMAD online at: http://nomadportable.com/NOMAD-register.html
Technical support
Contact your Bridge Technologies Partner/Reseller or refer to your support
agreement.
Warranty/Software Upgrades/Training
Contact your Bridge Technologies Partner/Reseller.
General enquiries
For other general enquiries please contact: support@bridgetech.tv
Initial Configuration
There are 3 alternative ways of performing an initial configuration of NOMAD:
NOTE: Settings take effect immediately after applying. For this reason, it is
recommended to check settings carefully before applying, as you may lose
wireless connection to your NOMAD due to incorrect settings. If this happens
you have a wired network interface and a USB serial port as backup.
Powering up the unit
Connect the power supply to the main source and the power supply to the probe.
Only use the included power supply and do not use if damaged. The diodes
should then light up and the unit will boot. From power-up until access
via the management interface it will take approx. 2 minutes.
NOMAD Portable Quick Start Guide v1.1
1
DVBCommunity - cообщество профессионалов ЦТВ
https://dvbcommunity.ru/
In the box: NOMAD
1. Via the built-in NOMAD wireless management network (Go to 1.)
2. Preconfigured IP address of the probe management port (Go to 2.)
3. Via serial console emulated over USB (Go to 3.)
POWER ON
C I R C O 1 3 p t
In the box: Power cord & supply USBA-A Cable
t r a c k i n g 3 1 8
