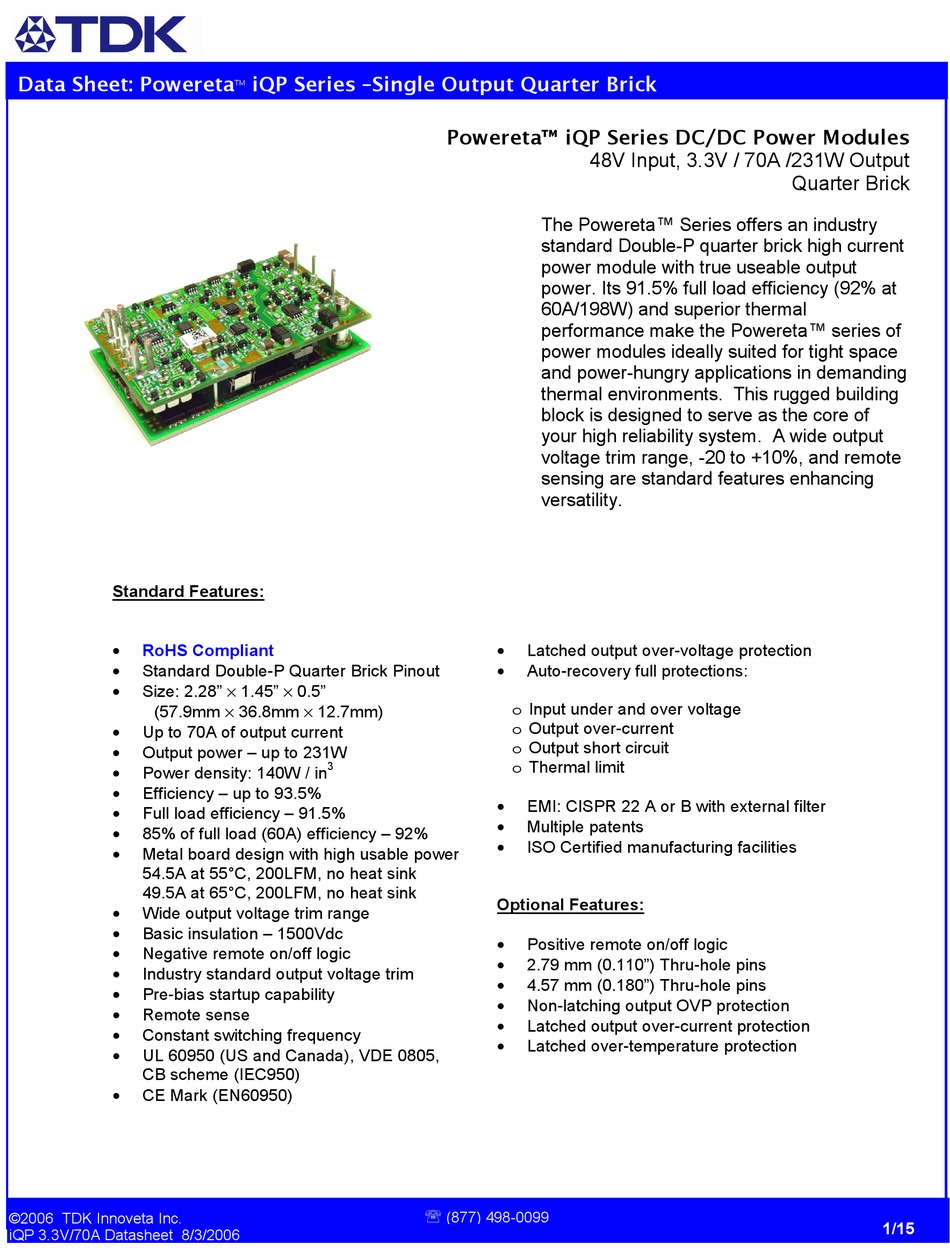

Data Sheet: Powereta
Standard Features:
•
RoHS Compliant
•
Standard Double-P Quarter Brick Pinout
•
Size: 2.28" × 1.45" × 0.5"
(57.9mm × 36.8mm × 12.7mm)
•
Up to 70A of output current
•
Output power – up to 231W
•
Power density: 140W / in
•
Efficiency – up to 93.5%
•
Full load efficiency – 91.5%
•
85% of full load (60A) efficiency – 92%
•
Metal board design with high usable power
54.5A at 55°C, 200LFM, no heat sink
49.5A at 65°C, 200LFM, no heat sink
•
Wide output voltage trim range
•
Basic insulation – 1500Vdc
•
Negative remote on/off logic
•
Industry standard output voltage trim
•
Pre-bias startup capability
•
Remote sense
•
Constant switching frequency
•
UL 60950 (US and Canada), VDE 0805,
CB scheme (IEC950)
•
CE Mark (EN60950)
©2006 TDK Innoveta Inc.
iQP 3.3V/70A Datasheet 8/3/2006
iQP Series –Single Output Quarter Brick
TM
3
Powereta™ iQP Series DC/DC Power Modules
48V Input, 3.3V / 70A /231W Output
The Powereta™ Series offers an industry
standard Double-P quarter brick high current
power module with true useable output
power. Its 91.5% full load efficiency (92% at
60A/198W) and superior thermal
performance make the Powereta™ series of
power modules ideally suited for tight space
and power-hungry applications in demanding
thermal environments. This rugged building
block is designed to serve as the core of
your high reliability system. A wide output
voltage trim range, -20 to +10%, and remote
sensing are standard features enhancing
versatility.
•
Latched output over-voltage protection
•
Auto-recovery full protections:
o Input under and over voltage
o Output over-current
o Output short circuit
o Thermal limit
•
EMI: CISPR 22 A or B with external filter
•
Multiple patents
•
ISO Certified manufacturing facilities
Optional Features:
•
Positive remote on/off logic
•
2.79 mm (0.110") Thru-hole pins
•
4.57 mm (0.180") Thru-hole pins
•
Non-latching output OVP protection
•
Latched output over-current protection
•
Latched over-temperature protection
℡
