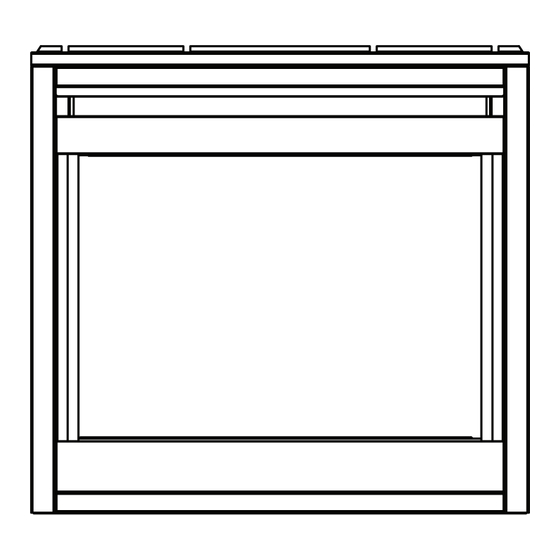

Napoleon ASCENT B42 Quick Start Manual

ASCENT 42 DIRECT VENT GAS FIREPLACE
TM

Specifications

Model BTU
B42 25,000
Overview
Dimensions
Width
Actual Framing Actual
42 42 1/2 34 1/16
See the section "MINIMUM
ENCLOSURE CLEARANCES"
for drywall (or other combus-
tible material).
See the section "MINIMUM
MANTEL CLEARANCES".
See the section
"NON-COMBUSTIBLE
FINISHING".
Side
Wall
See the section
"RATING PLATE
INFORMATION".
34 1/16"
866mm
1 13/16"
46mm
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Height Depth
Framing Actual Framing
34 3/4 18 5/16 18 9/16
7 3/16"
182mm
GAS
INLET
18 5/16"
465mm
Glass
23 11/16 X 37 11/16
See the section
"VENTING" and
"INSTALLATION".
See the section
"FRAMING".
11 13/16"
299mm
11 5/16"
288mm
42"
1067mm
5"
127mm
8"
203mm
05/2015
