INSTALLATION
INSTRUCTIONS

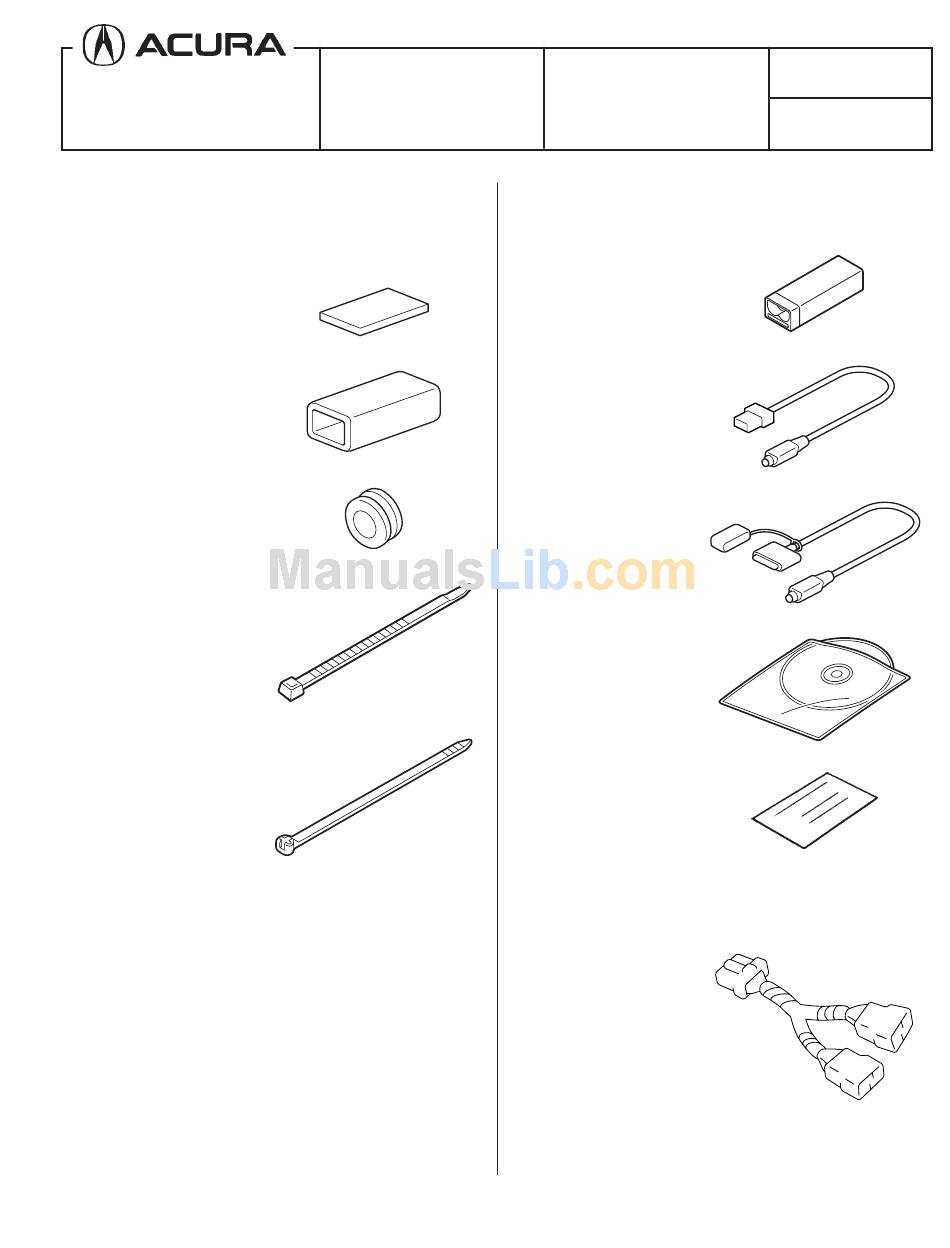

PARTS LIST
Attachment Kit (sold separately)
P/N 08A28-1H1-800
4 Cushion tapes
Holder cushion
Grommet
8 Wire ties
2 Long wire ties
© 2007 American Honda Motor Co., Inc. - All Rights Reserved.
®
iPod
is a registered trademark of Apple Computer, Inc.
Accessory
ACURA MUSIC LINK
(FOR iPod
®
)
Acura Music Link Kit (sold separately)
P/N 08A28-1H2-101
Acura Music Link unit
Bus cable
Music Link harness
CD-ROM
(for home computer use only)
Quick reference guide
Y-Harness Adapter (sold separately)
P/N 08A31-0F1-000
Y-harness adapter
BII 32726-34939 (0703)
Application
BII 32726-34939
2007 MDX
08B28-STX-2000-91
Publications No.
Issue Date
MARCH 2007
1 of 7
Advertisement
Related Manuals for Acura Music Link 08A28-1H1-800
Summary of Contents for Acura Music Link 08A28-1H1-800
- Page 1 ® iPod is a registered trademark of Apple Computer, Inc. Accessory ACURA MUSIC LINK (FOR iPod ® Acura Music Link Kit (sold separately) P/N 08A28-1H2-101 Acura Music Link unit Bus cable Music Link harness CD-ROM (for home computer use only)
-
Page 2: Installation
Flat-tip screwdriver Ratchet 10 mm Socket 10 mm Combination wrench Tape measure Felt-tip pen Isopropyl alcohol Shop towel Masking tape Illustration of the Acura Music Link Installed on the Vehicle ACURA MUSIC LINK UNIT CABLE Y-HARNESS AUDIO UNIT ADAPTER INSTALLATION... - Page 3 Remove the right side dashboard cover (four retaining tabs). RETAINING TABS (2) Remove the right dashboard trim (one self-tapping screw, ten clips, and three retaining tabs). RIGHT DASHBOARD SELF-TAPPING TRIM SCREW RETAINING TABS (3) © 2007 American Honda Motor Co., Inc. - All Rights Reserved. Using a flat-tip screwdriver and a shop towel, remove the driver's side center trim (five clips and three retaining tabs).
- Page 4 MUSIC LINK FELT-TIP PEN HARNESS MARK 700 mm 4 of 7 12. Insert the Acura Music Link unit into the holder cushion. BOLTS (4) HOLDER CUSHION AUDIO UNIT 5N14071S 13. Plug the bus cable DIN connector (black) and the Music Link harness DIN connector (white) into the Music Link unit.
- Page 5 14. Secure the Acura Music Link unit to the steering hanger beam with two long wire ties as shown. AUDIO UNIT LONG WIRE OPENING TIES WIRE TIE CABLE LONG FRONT WIRE STEERING HANGER BEAM ACURA MUSIC LINK UNIT 15. Route the bus cable to the audio unit opening and secure the bus cable to the vehicle harness with one wire tie.
- Page 6 20. Bundle up the excess Music Link harness, and secure it to the vehicle harness with one wire tie. VEHICLE HARNESS MUSIC LINK HARNESS (Bundle up.) 21. Get the Y-harness adapter. Plug the bus cable 14-pin connector and vehicle 14-pin connector into the Y-harness adapter 14-pin connector.
- Page 7 24. Reinstall the damper rod and cover. Be careful not to pinch the Music Link harness when closing the glove box. DAMPER GLOVE BOX MUSIC LINK HARNESS 25. Check that all wire harnesses are routed properly and all connectors are plugged in. 26.
