INSTALLATION
INSTRUCTIONS

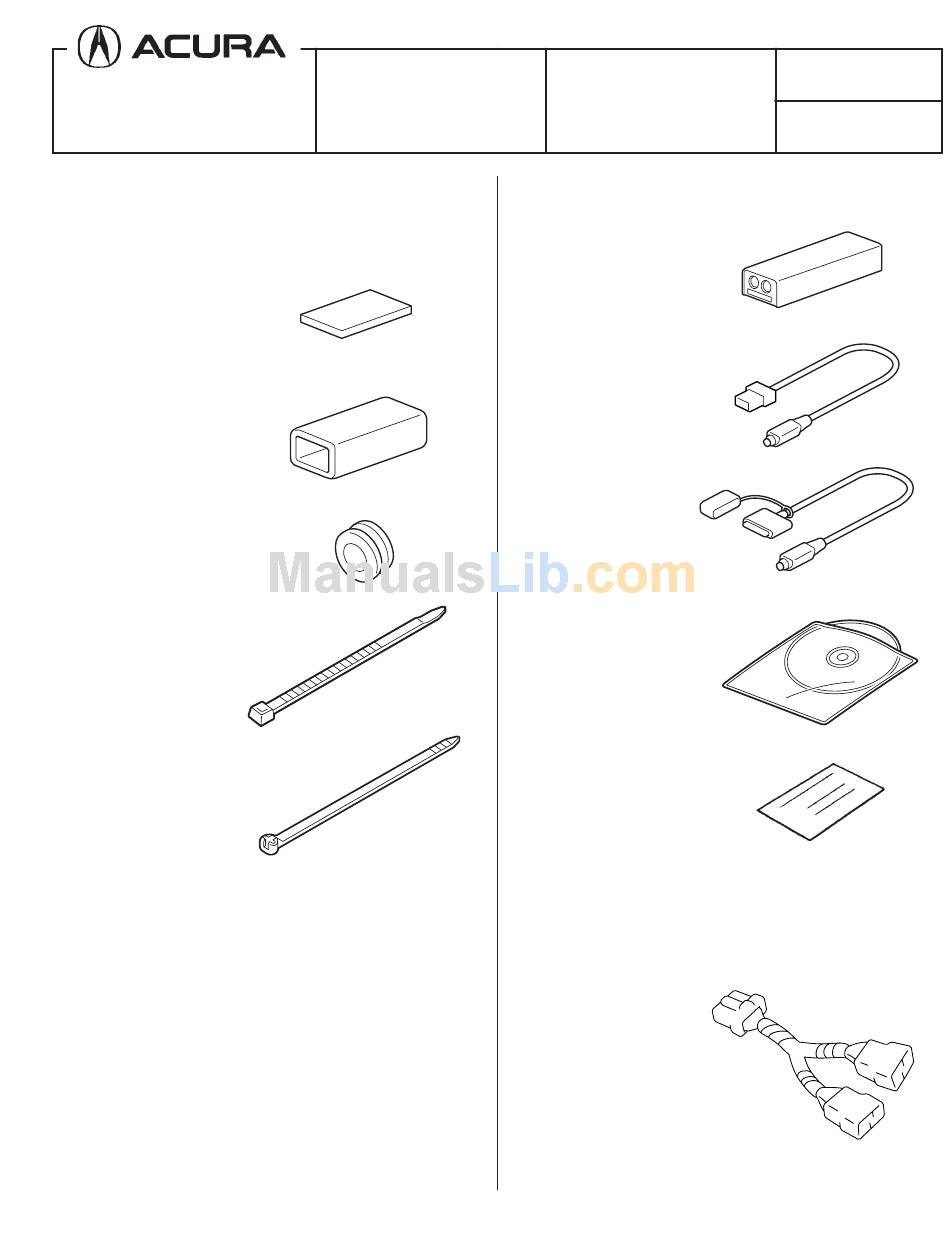

PARTS LIST
Acura Music Link Adapter (sold separately)
P/N 08A28-1H1-800
4 Cushion tapes
Holder cushion
Grommet
(Not used)
8 Wire ties
2 Long wire ties
© 2007 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
ACURA MUSIC LINK™
(FOR iPod
)
®
Acura Music Link Adapter Kit (sold separately)
P/N 08A28-1H2-100
Acura Music Link unit
Bus cable
Music Link harness
CD-ROM
(for home computer
use only)
Quick reference guide
Y-Harness Adapter (sold separately)
P/N 08A31-0F1-000
Y-harness adapter
BII 32604-34945 (0703)
Application
2007 RDX
08B28-STK-2000-91
Publications No.
BII 32604-34945
Issue Date
MARCH 2007
1 of 6
Advertisement
Related Manuals for Acura Music Link 08B28-STK-2000-91
Summary of Contents for Acura Music Link 08B28-STK-2000-91
- Page 1 2 Long wire ties © 2007 American Honda Motor Co., Inc. - All Rights Reserved. Accessory ACURA MUSIC LINK™ (FOR iPod ® Acura Music Link Adapter Kit (sold separately) P/N 08A28-1H2-100 Acura Music Link unit Bus cable Music Link harness CD-ROM...
-
Page 2: Installation
TOOL AND SUPPLIES REQUIRED #2 Phillips screwdriver Diagonal cutters Ratchet 10 mm Socket Shop towel Illustration of the Acura Music Link Installed on the Vehicle MUSIC LINK UNIT CABLE INSTALLATION Client Information: The information in this installation instruction is intended for use only by... - Page 3 Lift up the shift lever trim (six retaining tabs). SHIFT LEVER TRIM RETAINING TABS (6) Remove the left center console side trim (three clips). LEFT CENTER CONSOLE SIDE TRIM CLIPS (3) © 2007 American Honda Motor Co., Inc. - All Rights Reserved. Open the center console, then remove the beverage holder (six clips).
- Page 4 10. To prevent scratching the shift lever and trim, cover them with a shop towel. SHIFT LEVER SHOP TOWEL 11. Remove the audio unit (four bolts) and disconnect the five vehicle connectors. NOTE: The antenna connector release is on the side of the connector.
- Page 5 14. Apply a cushion tape around the bus cable DIN connector (black) and Music Link harness DIN connector (white). Secure the Music Link unit to the front side of the vehicle frame using two long wire ties. If the Music Link unit is not in front of the frame there will not be clearance for the radio.
- Page 6 19. Bundle the excess bus cable, and wrap one wire tie around the bus cable. VEHICLE HARNESS WIRE TIE WIRE TIE MUSIC LINK GLOVE BOX HARNESS OPENING 20. Secure the bus cable and Music Link harness to the vehicle harness using two wire ties. 21.
