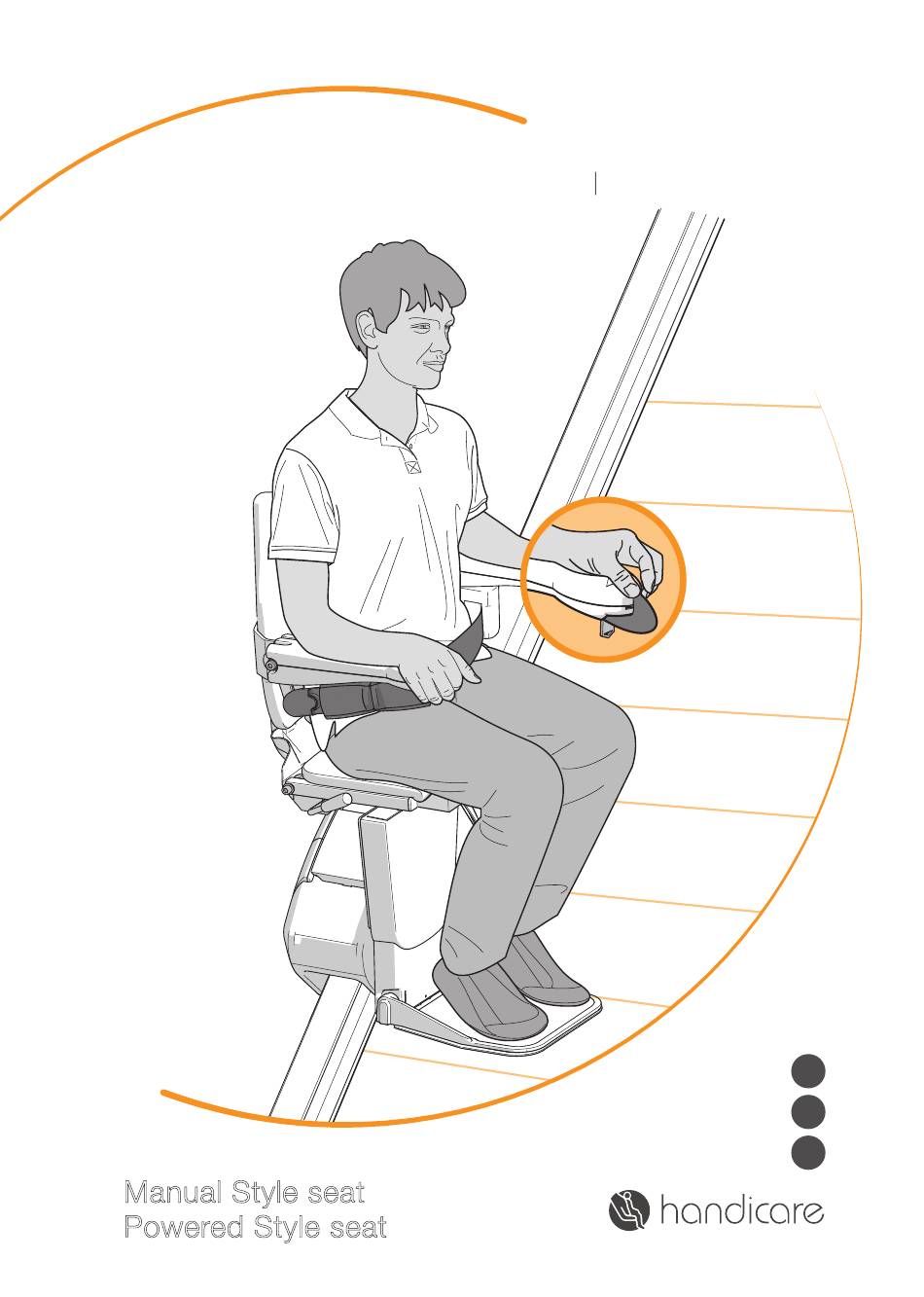

HANDICARE 1100
Manual Style seat
Powered Style seat
U S E R M A N U A L
EN
US
CA

Advertisement

Table of Contents
loading

Related Manuals for Handicare 1100

Summary of Contents for Handicare 1100

  • Page 1 HANDICARE 1100 U S E R M A N U A L Manual Style seat Powered Style seat...
  • Page 2 FOREWORD CONTENT USER MANUAL Thank you for choosing a Handicare stairlift. This manual is for the HANDICARE 1100 lift OPTIONS type, and includes instructions for the standard features and optional upgrades. IMPORTANT INFORMATION FAULT FINDING ATTACHMENTS A. Reminders B. Emergency operation C.
  • Page 3 STYLE SEAT OPTIONS Powered Swivel Powered Footrest The illustration above shows the features [1]Diagnostic Display [2]Joystick used to operate the STYLE seat. The [3]Stop button STYLE seat can be upgraded with the Powered Swivel seat, the Powered [4]Seat belt Footrest, options to create even more [5]Key switch seat comfort and user-friendliness.
  • Page 4 FOLD DOWN Fold down the armrests and seat. SIT DOWN Sit down on the seat. USER MANUAL 3...
  • Page 5 UNFOLD FOOTREST Fold down the footplate. page 11 > OPTIONAL POWERED FOOTREST PLACE FEET Place your feet on the footplate. Ensure that both feet are completely on the plate. 4 USER MANUAL...
  • Page 6 SAFETY FIRST CLICK! Fasten the seat belt securely, ensuring that it clicks into the holder. Put the key in the switch and turn it ninety degrees clockwise. Check that the chair is in the locked position. RIDE Move and hold the joystick in the desired direction of travel. The display shows a “8/9”, the lift gradually starts to move.
  • Page 7 STOP BUTTON In an emergency, press the stop button once. The lift stops straight away. To release the lift, press the stop button again. SWIVEL CLICK! The lift stops automatically at the end of the rail. You should now swivel the seat manually, making it easier to get on and off.
  • Page 8 FOLD FOOTREST Fold up the footplate. page 11 > OPTIONAL POWERED FOOTREST LOOSEN BELT Unfasten the seat belt. USER MANUAL 7...
  • Page 9 STAND UP Stand up from the seat. FOLD UP CLICK! Fold up the armrests and seat {A}. Push the handle, located to the left or right under the seat, downwards {B}. Swivel the seat until you hear a 'click'. The seat is now in the locked position.
  • Page 10 PARK Press and hold the up or down button on the remote control until the lift reaches a stop point. Upon arrival, the lift stops automatically. USER MANUAL 9...
  • Page 11 OPTIONS POWERED SWIVEL page 10 POWERED FOOTREST page 11 POWERED SWIVEL CLICK! The POWERED SWIVEL SEAT option let you swivel the seat automatically to face the direction you are going to walk. To do this, push and hold the joystick in the direction of travel.
  • Page 12 POWERED FOOTREST To operate a POWERED FOOTREST press the switch under the armrest. Always ensure the footplate is in the down position during travel. USER MANUAL 11...
  • Page 13 IMPORTANT INFORMATION Handicare 1100 28 March 2019 Serial no. unit: Project: J. Hopman Date: 12 USER MANUAL...
  • Page 14 FOREWORD Your Handicare 1100 stairlift is a sophisticated product for indoor use only that has been specifically developed to carry one person ( Inclination stairs>30 : max. 140 kg/22 stone/308 lbs. Inclination stairs>45 : max. 130 kg/20½ stone/286 lbs) sitting on the seat.
  • Page 15 Neither Handicare nor its authorised dealers may be held responsible for the suitability of the structures which surround and support the installation.
  • Page 16 Installation and servicing should only be carried out by dealers or installers/service engineers authorised by the manufacturer in accordance with local regulations. The wall mounted remote controls operate on a radio frequency; Handicare is unable to accept responsibility for system inoperability in the unlikely event of interference from signals external to this stairlift.
  • Page 17 TECHNICAL SPECIFICATIONS 100-240 V ~ Supply voltage Speed max. 0.15 m/s Frequency 50/60 Hz Ambient temperature 0 - 40 °C Current 1.0 A Relative humidity 20 - 80% Power consumption 0-36 watt Usage 10 rides per day Fuses 20 A Max.load ( ) 140 kg Noise...
  • Page 18 FAULTFINDING DIAGNOSTIC DISPLAY page 17 page 18 EMERGENCY STOP page 18 ARMREST page 19 CHAIR POSITION page 19 BATTERIES page 20 POWER page 20 OBSTACLE page 21 LOW POWER page 21 DIAGNOSTIC DISPLAY The stairlift is fitted with a diagnostic display that displays a code to help diagnose faults.
  • Page 19 C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “0”. Cause: the key-operated switch is in the off position. Solution: turn the key-operated switch ninety degrees clockwise. STOP BUTTON C A U S E S O L U T I O N...
  • Page 20 CHAIR POSITION CLICK! C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “-”. Cause: the seat is not locked and is in a swivelled position. Solution: swivel the seat using the handle located to the left or right under the seat, until it “clicks”...
  • Page 21 BATTERIES RED light C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the Light on the remote control shines red when the remote control is operated. Cause: the batteries in the remote control are flat.
  • Page 22 OBSTACLE C A U S E S O L U T I O N Problem: the lift travels in one direction only and the display shows a “4/6”. Cause: there is an obstacle between the lift and the stairs. Solution: move the lift in the opposite direction {A} and remove the obstacle {B}. LOW POWER 30 min.
  • Page 23 ATTACHMENTS REMINDERS page 22 EMERGENCY OPERATIONS page 23 DIAGNOSTIC CODES page 24 REMINDERS [A]Clean the rail regularly with a vacuum cleaner with a soft brush. [B]Any dirt on the rail can easily be removed with a slightly damp cloth. Under no circumstances should you use cleaning product when cleaning the rail. [C]Clean the stairlift regularly with a damp cloth.
  • Page 24 EMERGENCY OPERATION >SEAT CLICK! [B.1]If the powered swivel is not functioning it can be swivelled manually. Do this only in an emergency. [B.2]Press the release button. [B.3]Swivel the seat manually. [B.4]The seat must be returned to the start position.Do this before you use the lift again.
  • Page 25 DIAGNOSTIC If the mentioned action does not help, call Handicare. CODES Display Action Write down the diagnostic Display Action code when you call Handicare for help. CLICK! Charging, but the lift does Chair in swivel position not drive. Possibly the armrest is folded.
  • Page 26 Display Action Display Action Display Action 30 min. Low battery voltage Toggle activated: Toggle activated: - the lift rides up - the lift rides down F A U L T Display Action Display Action Display Action The main power relay not Motor problems The main control board has [ L0=n, L1=n, L2=n, L3=n, L4=n ]...
  • Page 27 Display Action Display Action Display Action Hardware fault Toggle activated: Toggle activated: - swivel up - swivel down [ Y0, YF, YI, Yr, Yb, YbF ] F A U L T USER MANUAL 26...
  • Page 28 St. Louis, MO 63043 United States of America Toll Free: 1.866.891.6502 Local: 314.692.9135 Fax: 314.692.7858 www.handicareusa.com customerservice.northamerica@handicare.com Handicare Canada 485 Millway Avenue Unit 2 Concord, ON L4K 3V4 Canada USER MANUAL T : 877.304.5438 *AA12066* F : 416.260.0256 www.handicare.ca AA12066 , rev.
