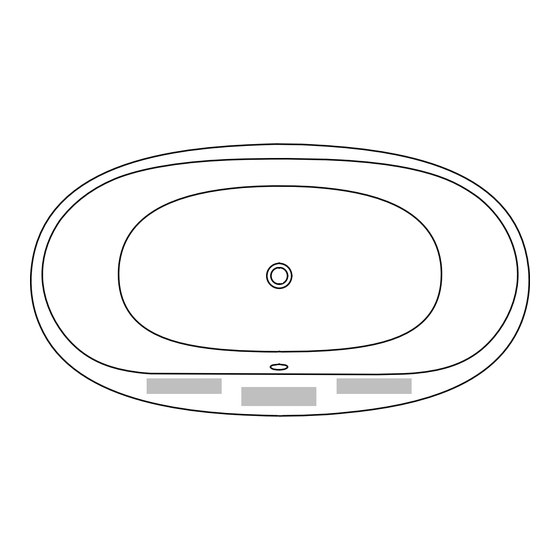

- Page 1 Installation and Care Guide Freestanding Bath with Airjets Retain serial number for reference: Conserver le numéro de série pour référence: Guarde el número de serie para referencia:__________________________ Français, page ″Français-1″ Español, página ″Español-1″ 1237791-2-G...
-
Page 2: Installation Instructions
Factory-installed components include a blower motor with power supply cord, check valve (some models), air piping, and user keypad. -G2M models also include transducers, an amplifier, and a power supply cord. Other than electrical wiring and plumbing, no assembly is needed. 1237791-2-G Kohler Co. -
Page 3: Tools And Materials
NOTICE: Adequate floor support must be provided. Note the model number on the components end of the bath, then visit the product page at www.kohler.com for additional information. NOTICE: Do not lift the bath by the piping or blower, or use the piping or blower for structural support of the bath. - Page 4 Before You Begin (cont.) Illustrations shown may not look like your actual product but they still apply to this installation. This bath conforms to CSA B45.5/IAPMO Z124. All dimensions are nominal. 1237791-2-G Kohler Co.
- Page 5 NOTICE: Before installing a rim-mount bath faucet, refer to the specification sheet on the bath product page at www.kohler.com for faucet area dimensions for your model. NOTICE: To accommodate the bath shroud, use flexible connections to attach the water supplies to a rim-mount faucet.
-
Page 6: Prepare The Site
Use the drain area cut-out in the shroud to trace the drain-hole area on the floor. Remove the shroud and set it out of the installation area. Refer to the bath specification sheet on the bath product page at www.kohler.com to determine any drain clearance requirements, and cut adequate floor clearance as needed. - Page 7 Apply silicone sealant to both sides of the drain and overflow gaskets. Apply slow-drying construction adhesive to the bottom of the shroud. Carefully position the shroud over the drain, aligning the hole with the traced mark on the floor. Kohler Co. 1237791-2-G...
- Page 8 Position the amplifier anywhere within the shroud (not recommended) or in a remote location. If installed within the shroud, the amplifier will need to remain plugged into the electrical outlet at all times. 1237791-2-G Kohler Co.
- Page 9 Fill the bath to a level at least 4″ (102 mm) above the top of the highest airjet. Operate the bath for 5 minutes and test the airjets. For additional information on bath operation, see the ″Operating Instructions″ section. Kohler Co. 1237791-2-G...
-
Page 10: Important Safety Instructions
WARNING: Risk of personal injury. Never drop or insert any object into any opening. Use this bath only for its intended purpose as described in this guide. Do not use attachments not recommended by Kohler Co. The bath must be connected only to a supply circuit that is protected by a Ground-Fault Circuit-Interrupter (GFCI)*. -
Page 11: Care And Cleaning
NOTE: To restore dull or scratched units: Apply white automotive polishing compound with a clean rag. Rub scratches and dull areas vigorously. Wipe off residue. Follow with a coat of white automotive paste wax. Do not wax areas where you walk or stand. Kohler Co. 1237791-2-G... -
Page 12: Troubleshooting
Cleaning information, call 1-800-456-4537. Troubleshooting NOTICE: This section is for general aid only. A Kohler Co. Authorized Service Representative or qualified electrician should correct any electrical problems. For warranty service, call 1-800-4KOHLER from within the USA and Canada, or 001-800-456-4537 from within Mexico. -
Page 13: One-Year Limited Warranty
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty. - Page 14 It is recommended that at the time of purchase, you verify that all accessories and components are complete in this package. This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the date of purchase as shown on the invoice or receipt.
- Page 15 Installation Guide Bath Fill Trim K–T954 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page“ Français-1” Español, página“ Español-1” 1009676-2-B...
- Page 16 Before installation, unpack the new faucet trim and inspect it for damage. Return it to the carton until installation. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.
- Page 17 Position the spout on the supply tube, and carefully press down until the spout contacts the finished deck. Align the spout as desired, and tighten the setscrews. Slide the escutcheon down the spout until it is flush with the finished deck. Kohler Co. 1009676-2-B...
- Page 18 Adjust the handles so the levers point away from the spout when closed. To adjust the alignment, remove the handle assembly and reposition the stem extension on the stem. Reinstall the handle assembly. Repeat until the desired alignment is achieved. 1009676-2-B Kohler Co.
- Page 19 Turn on the main water supply and check for leaks. Turn on the hot and cold valves and run water through the spout to remove debris. Check for leaks. Turn off the hot and cold valves. Reinstall the aerator assembly. Kohler Co. 1009676-2-B...
- Page 20 Installation and Care Guide Bath/Deck-Mount Valve K-300 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1” 1275145-2-A...
- Page 21 For wider installations, adjust all roughing-in dimensions and copper tube lengths accordingly. If the spout is to be installed more than 24″ (610 mm) from the valves, Kohler Co. recommends installing a Sioux Chief 652-AD vacuum breaker arrestor. Install the vacuum breaker arrestor close to the outlet ports of the valves.
- Page 22 Tools and Materials Plus: • Drill and Bits • Hole Saw • 1/2" Exterior Grade Plywood (Rim-Mount Installations) • 1/2" Nominal (5/8" OD) Copper Tubing Propane Torch Solder Rags • Common Tools and Materials Kohler Co. 1275145-2-A...
- Page 23 Plan for one spout supply hole and two valve body holes. Locate the valve body holes 4″ (102 mm) away from the spout supply tube centerline. For wider installations, adjust this measurement accordingly. 1275145-2-A Kohler Co.
- Page 24 1-13/16" (46 mm) Min 3-3/8" (86 mm) Max - 1/2" (13 mm) 1/4" (6 mm) Min Plywood Reinforcement Finished Deck Rim Mount 2. Determine the Valve Height Plan for the required valve height according to your installation. Kohler Co. 1275145-2-A...
- Page 25 Install 1/2″ (13 mm) exterior grade plywood if the finished deck or rim is less than 1/2″ (13 mm) thick, or if the faucet will be installed directly to the bath rim. 1275145-2-A Kohler Co.
- Page 26 Drill a 1-1/8″ (29 mm) spout hole. Do not exceed this hole size. Drill two 1-1/2″ (38 mm) valve body holes, one on either side of the spout hole. Do not exceed this hole size. Kohler Co. 1275145-2-A...
- Page 27 Insert the supply tube through the spout hole. From underneath, slide the plate (oriented with the tabs up) onto the supply tube. Secure the plate with the screws. Thread the washer and nut onto the supply tube. Wrench tighten the nut. 1275145-2-A Kohler Co.
- Page 28 Temporarily hold the valve bodies in place. For rough-deck installation proceed to ″Install the Tubing.″ Finished-Deck or Rim-Mount Only Cut one 2-3/8″ (60 mm) piece of copper tubing. Insert the copper tubing into the tee and the supply tube. Kohler Co. 1275145-2-A...
- Page 29 Thread the collars down the valve bodies so the exposed valve height is correct for your installation. Refer to the ″Determine the Valve Height″ section. Wrench tighten the mounting nuts to secure the valve bodies. Thread the sleeves down the valve bodies. Proceed to ″Solder the Connections.″ 1275145-2-A Kohler Co.
- Page 30 Thread the collars down the valve bodies so the exposed valve height is correct for your installation. Measure gap ″X″ as shown above. Cut a copper tube to a length of X plus 1″ (25 mm). Insert the copper tube into the supply tube and tee. Kohler Co. 1275145-2-A...
- Page 31 Valve Height 9. Secure the Valve Bodies Rough-Deck Installation Only Verify the required valve height determined earlier. Refer to the ″Install the Tubing″ section. Tighten the mounting nuts to secure the valve bodies. 1275145-2-A Kohler Co.
- Page 32 Ensure that the cold supply is on the right side when facing the front of the faucet. Solder the copper tubing connections. Finished-Deck or Rim-Mount Installation Remove and discard the plaster guard. Proceed to ″Check the Installation″ to complete the installation. Kohler Co. 1275145-2-A...
- Page 33 11. Install Tile (If Applicable) Rough-Deck Installation Only Install the plaster guards over both valves. Install the tile up to the plaster guards. Remove and discard the plaster guards. 1275145-2-A Kohler Co.
-
Page 34: Check The Installation
Cold Supply Supply 12. Check the Installation Close the hot valve by turning it clockwise. Close the cold valve by turning it counterclockwise. Turn on the water supplies, and check for leaks. Kohler Co. 1275145-2-A... -
Page 35: Check For Leaks
Make sure a 3/8″ pipe plug is securely installed in the supply tube. Open the hot valve by turning it fully counterclockwise. Open the cold valve by turning it fully clockwise. Check the complete installation for any leaks. Repair as needed. 1275145-2-A Kohler Co. - Page 36 If the Faucet should leak or drip during normal use, Kohler Co. will, free of charge, mail to the purchaser the cartridge necessary to put the Faucet in good working condition.
