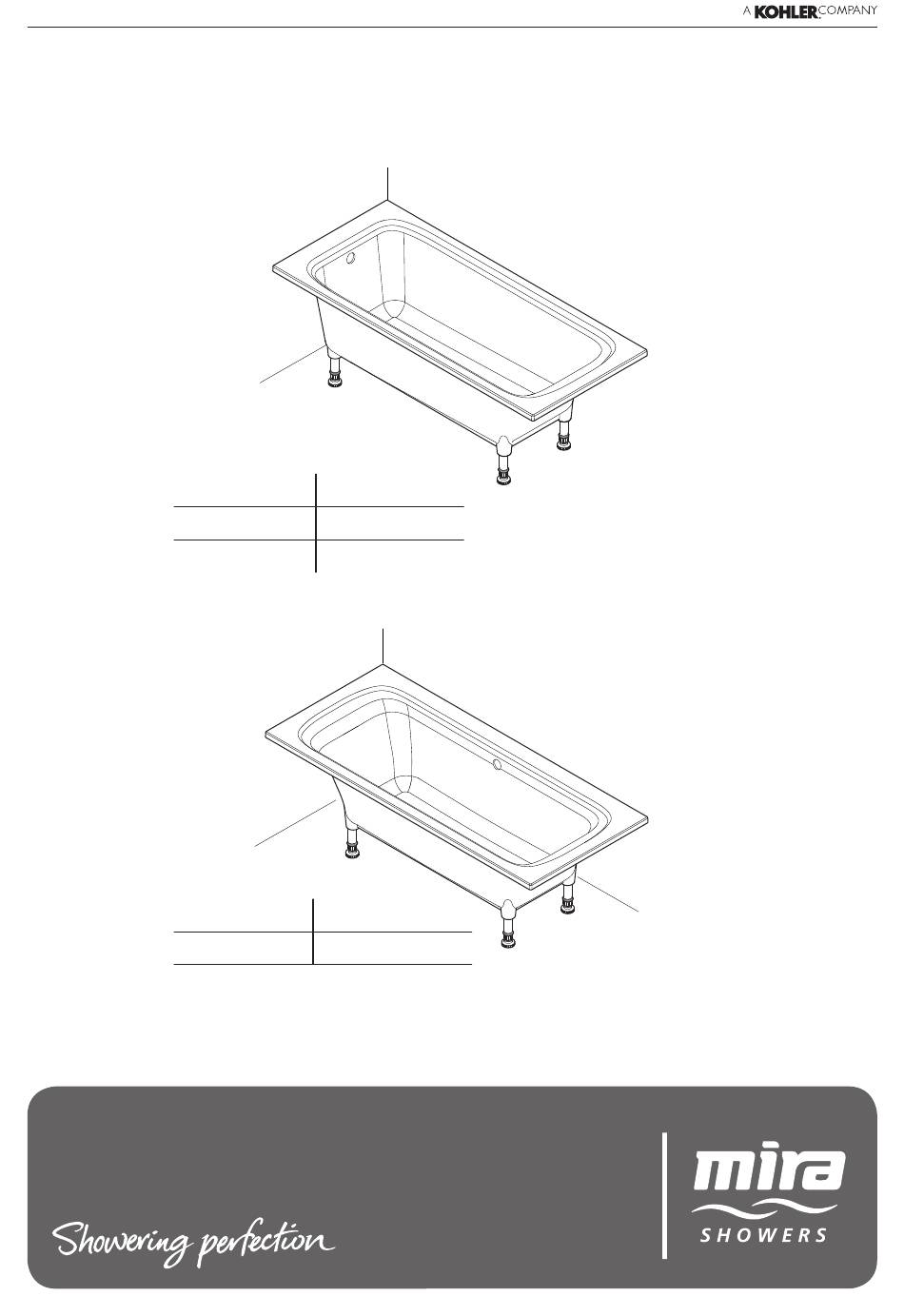

- Page 1 Mira Flight Drop-In Bath Size Part No. 170 x 70 cm 1842.350.WH 170 x 75 cm 1842.351.WH Size Part No. 180 x 80 cm 1842.352.WH Installation and User Guide These instructions must be left with the user 1367821-W2-A...
- Page 2 1367821-W2-A...
-
Page 3: Before You Begin
Before You Begin • Warning! Appropriate safety apparel eg. gloves and safety footwear must be worn. • Make sure that the bath is installed by a competent installer. • Shut off the main water supply. • Observe all local plumbing and building codes. •... -
Page 4: Pack Contents
Pack Contents Tools Required Ø 6mm 1367821-W2-A... -
Page 5: Installation
Installation 90° Install the adjustable feet on the underside of the bath. Note: Ensure the legs are fitted securely, adjust the legs to bring the bath level. 1367821-W2-A... - Page 6 + 0 mm ± 0 mm Refer to Panel Fixing Kit Position the bath and adjust the feet to level. Mark the position of the product. 1367821-W2-A...
- Page 7 Ø Mark and drill the fixing holes for the brackets. Install the brackets using the supplied wall plugs and screws. 11 mm Thick Note: Make sure that the overflow thread is suitable for an 11 mm thick bath Install the drain and overflow fittings according to the installation instructions packed with the drain.
- Page 8 Apply the sealant to wall sides of the product and place the product on the previously installed brackets. Caution! Baths are very heavy. Get assistance when moving or lifting the bath. 1367821-W2-A...
- Page 9 Connect the supply inlet pipes to the taps. 1367821-W2-A...
- Page 10 Note: Check for leaks Note: Check for leaks 1367821-W2-A...
- Page 11 Note: Fill the bath with water prior to sealing. Note: Some creaking may be noticed while the bath settles into position. Note: Before sealing do a final level check and lock feet in position with the locking nuts. 1367821-W2-A...
- Page 12 17 cm (1700 mm) 1842.360.WH 18 cm (1800 mm) 1842.361.WH Side Panel Install the side panel according to the installation instructions packed with the side panel. 70 cm (700 mm) 1842.362.WH 75 cm (750 mm) 1842.363.WH 80 cm (800 mm) 1842.364.WH End Panel Install the end panel according to the installation instructions packed...
-
Page 13: Spare Parts
Cleaning ☺ Spare Parts 1842.367 Single Leg Pack (x1) 1842.366 Multi Leg Pack (x6) and Fixing Kit 1367821-W2-A... - Page 14 Notes 1367821-W2-A...
- Page 15 CE mark label to be on all . Kohler Mira Ltd, Cromwell Road, Cheltenham, Gloucestershire GL52 5EP, UK. Kohler Mira Flight Bath Declaration of Performance: CE 0106 EN 14516:2006 + A1:2010 1367821-W2-A...
-
Page 16: Customer Support
