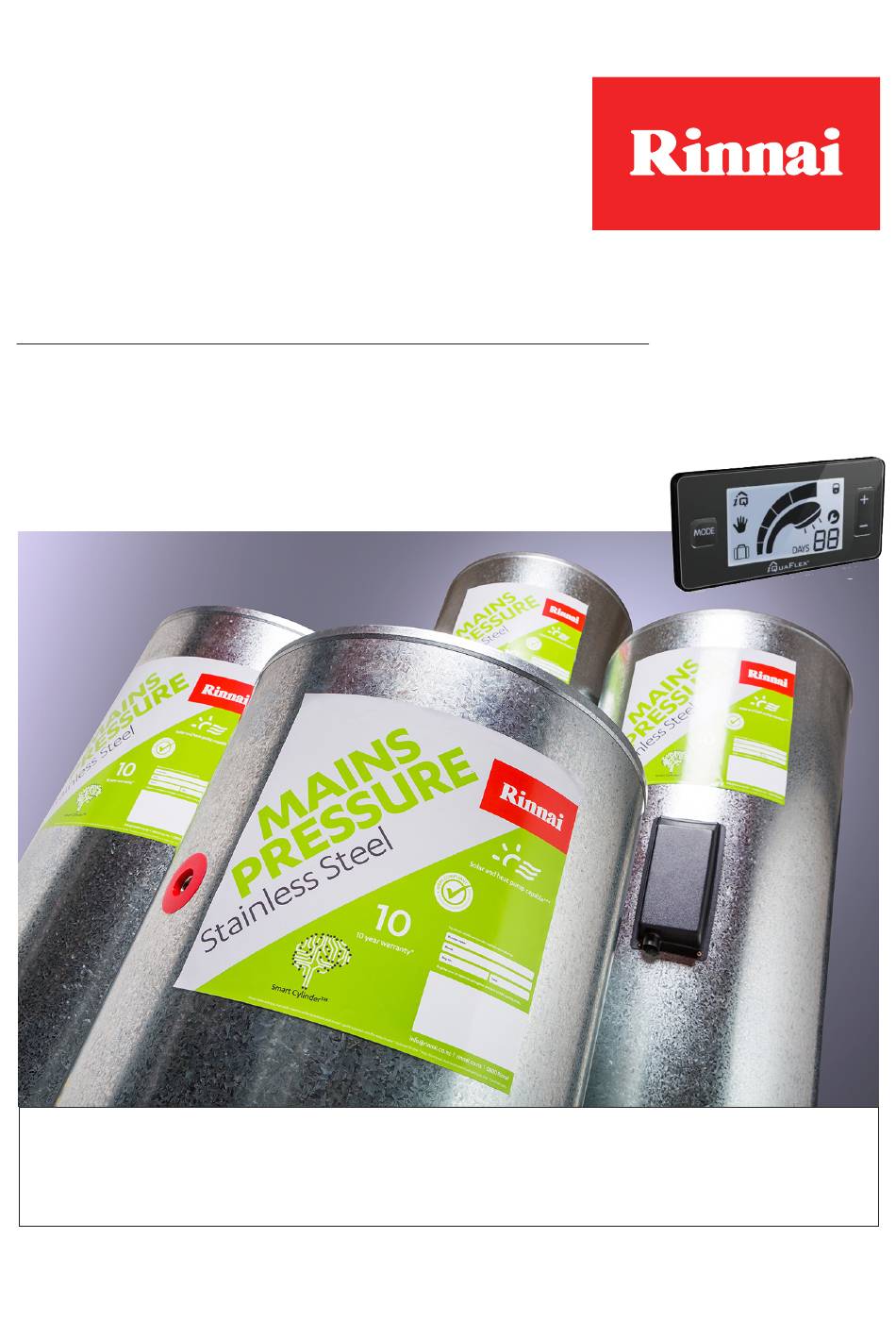

- Page 1 Owner and installer guide Rinnai Smart Cylinders™ Mains pressure indoor stainless steel Models: MS13555030S, MS18055030S, MS25055030S Installer Please leave this guide with the home owner as it contains important safety and warranty information.
- Page 2 For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624) Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
About your Rinnai Smart Cylinder ....4 Maintenance and servicing ....... 7 Troubleshooting ..........8 Installation Specification summary ........12 Dimensions ............13 Plumbing setup ..........14 Storage and delivery temperatures ....15 Water quality ........... 16 Electrical supply and connections ....17 Valves and fittings ........... -
Page 4: About Your Rinnai Smart Cylinder
Energy is saved as water is not fully heated when you don't need it. Your Rinnai Smart Cylinder comes factory preset to operate in automatic mode, at a level setting of three. We recommend staying with this setting to achieve a balance between running cost savings and ensuring you have enough hot water. - Page 5 Clause G12.3.9, Acceptable Solution G12/AS1 6.14.3 Legionella is a bacterium that can cause Legionnaires’ disease―a severe form of pneumonia Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 5...
- Page 6 Any work carried out by a temperature. non-licensed tradesperson is illegal and will void any • Automatic thermostat warranty. to maintain water temperature. 6 | Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17...
-
Page 7: Maintenance And Servicing
Insulated TPR valves will top of cylinder look like the image below Lift until water flows water from the drain line, lower gently heater To drain line Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 7... -
Page 8: Troubleshooting
Most hot water cylinders are controlled at peak times by your electricity supplier via a ripple relay. Contact your electricity supplier to determine if there have been any issues with the power supply. 8 | Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17... - Page 9 If you reset during normal operation it will lose all the water usage history as well as the memory setting and will default back to the preset factory setting of iQ automatic mode, level setting three. Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 9...
- Page 10 This page intentionally left blank...
-
Page 11: Installation
Installation Installation, servicing and repair shall be carried out only by authorised personnel. -
Page 12: Specification Summary
TPR valve. It must also be protected from freezing conditions. Protection against water: IPX1 Incoloy 825 curved element Cotherm thermostat with control 12 | Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17... -
Page 13: Dimensions
(all sizes) open loop solar or hot water heat pump systems. Hot water outlet ¾ “ female Side cold inlet Side cold inlet Element Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 13... -
Page 14: Plumbing Setup
Drip tray/catch pan (MUST be fitted) The Rinnai warranty does not cover any consequential loss from leaks to the cylinder, so it’s important a suitably drained drip tray/catch pan is fitted as per AS/NZS 3500.4:2015 5.4 and G12/AS1 6.11.3. -
Page 15: Storage And Delivery Temperatures
55 °C for all other buildings. To comply with these requirements, a temperature limiting device, such as a tempering or thermostatic mixing valve will be required on all installations. Clause G12.3.9, Acceptable solution G12/AS1 6.14.3 Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 15... -
Page 16: Water Quality
Most metropolitan water supplies fall within these limits. If you are unsure about water quality, please contact Rinnai and we will provide you with the details of an authorised agency able to test your water for compliance to Rinnai standards. If sludge or foreign matter is present in the water supply, a suitable filter should be incorporated in the water supply. -
Page 17: Electrical Supply And Connections
The appliance is intended to be connected to cables of fixed wiring which has a cross-sectional area of 1.5 mm - 2.5 mm Element Thermostat Terminal Block Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 17... -
Page 18: Valves And Fittings
4. Open the drain valve—make sure no damage will occur from discharged water. 5. Operate the TPR valve again. This allows air into the water heater and will result in the water draining. 18 | Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17... -
Page 19: 10 Year Limited Warranty
Rinnai reserves the right to make modifications and change specifications and its parts without notice. For the purposes of the Consumer Guarantees Act 1993, Rinnai only guarantees the availability of repair facilities and spare parts for the express warranty periods recorded in the Rinnai warranty summary table. - Page 20 Rinnai authorised service centre, travel costs shall be the owner’s responsibility. 10. Rinnai reserves the right to replace the cylinder for another type if upon inspection it is deemed another cylinder of a different construction is more suitable.
-
Page 21: Warranty Exclusions
Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17 | 21... -
Page 22: Warranty Examples In The Real-World
If damage is caused by a leaking cylinder that has not been installed with a drip tray the owner can seek compensation through the installer or consider claiming on insurance. 22 | Rinnai Smart Cylinder MP indoor stainless steel: Owner & installer guide: 20430-C 03-17... -
