LG TD-V10115E Owner's Manual

LG TD-V10115E Owner's Manual

Electric and gas dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

P/ No.: 3828EL2002C

Advertisement

Table of Contents
loading

Related Manuals for LG TD-V10115E

Summary of Contents for LG TD-V10115E

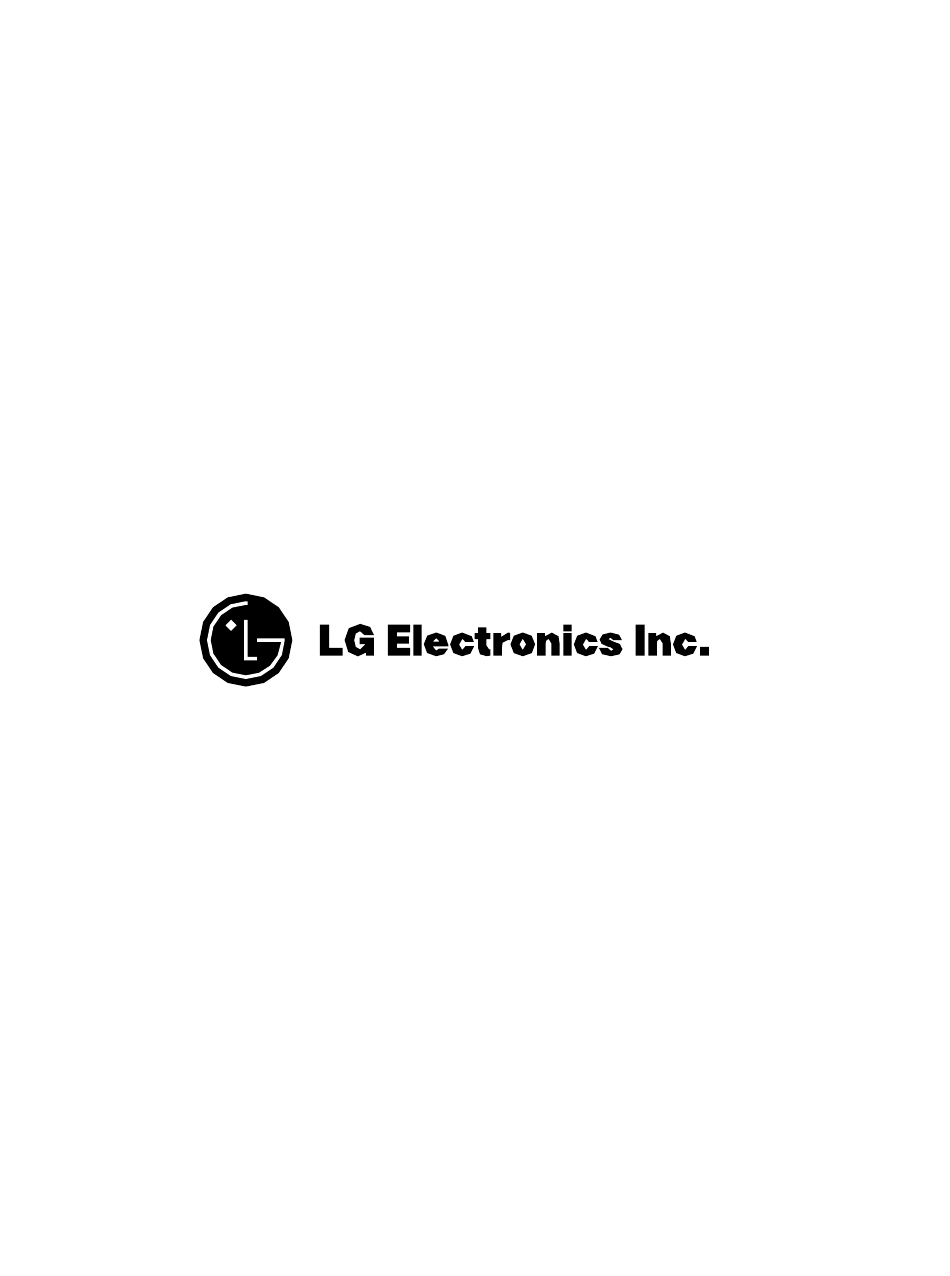

  • Page 1 P/ No.: 3828EL2002C...
  • Page 2 Owner's Manual Electric and Gas Dryer TD-V10115E TD-V10115G Thank you for buying a LG Dryer. Please read your manual carefully, as it provides instructions on safe Installation, Use and Maintenance. Record the Model and Serial Numbers, and retain the manual for future reference.

  • Page 3: Table Of Contents

    PRODUCT FEATURES OUTSTANDING PERFORMANCE Not to mention unmatched big capacity, you can benefit from good time efficiency, quiet operation and energy saving system. STAINLESS STEEL DRUM Stainless steel drum doesn’t generate any rust by nature so that rust-free drum keeps clothes away from stain all time. ARTISTIC DESIGN Modern front panel look and big crystal-clear glass door make your dryer look stylish.

  • Page 4: Part1. Specifications

    SPECIFICATIONS Part 1 Type : Electric and Gas Dryer : Please refer to the rating label regarding detailed information. Size : 27" (68.6 cm) x 29" (73.7 cm) x 43.7" (111cm)(inch) Capacity : IEC 7.3 cu.ft. (10.0kg) Weight : 126 Ibs (57.2 kg) Specifications are subject to change by manufacturer.

  • Page 5: Part2. Important Warranty And Safety Instructions

    You will need the complete Model and Serial Number when requesting Warranty Service. Proof of purchase date is required. Use the space below to record the model number and serial number of your new LG dryer. Model No. Serial No.

  • Page 6: Part2. Important Warranty And Safety Instructions

    IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS Part 2 IMPORTANT SAFETY INSTRUCTIONS WARNING! To help reduce any risk of electric shock, fire, or other personal or property injury when using your dryer, please exercise care and follow basic safety precautions, including the following: 1) Read all instructions before using the appliance.
  • Page 7 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS Part 2 WHAT TO DO IF YOU SMELL GAS: Do not try to light a match or cigarette, or turn WARNING! on any gas or electrical appliance. Do not touch any electrical switches. Do not Keep flammable materials and vapors, such use any phone in your building.
  • Page 8 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS Part 2 WARNING! To reduce the risk of fire or explosion, electric shock, property damage, personal injury, or death when using this appliance, please follow all instructions and information, including those in this manual and instructions and information provided by your gas supplier, including the following: •...

  • Page 9: Part3. Initial Steps For Installing Your Dryer

    INITIAL STEPS FOR INSTALLING YOUR DRYER Part 3 The following instructions will help guide you through the initial steps of setting up your dryer for use. Please note that every section of this manual provides important information regarding the preparation and use of your dryer, and it is important that you review this entire manual before proceeding with any installation or use.

  • Page 10: Part3. Initial Steps For Installing Your Dryer

    INITIAL STEPS FOR INSTALLING YOUR DRYER Parte 3 Once in position, adjust the leveling legs of the dryer until it is level from left to right and from front to back. The leveling leg must remain firmly on the floor and the dryer should not rock. The maximum slope of the dryer from left to right or from front to back should not exceed 2.5 cm (1 inch).
  • Page 11 INITIAL STEPS FOR INSTALLING YOUR DRYER Parte 3 REMOVE AND REVERSE THE PARTS OF DOOR REMOVE HANDLE REMOVE HINGES AND REHANG DOOR Remove the screws holding the handle and two Remove the hinges from the door and install them on spacers.
  • Page 12 INITIAL STEPS FOR INSTALLING YOUR DRYER Part 3 ALTERNATE EXHAUST DIRECTIONS Connecting the Exhaust STEP 3 and Venting System. Remove a screw and exhaust duct. WARNING! Use a heavy metal vent. Do not use a plastic vent. Do not use a metal foil vent. Failure to follow these instructions can result in death or fire.
  • Page 13 INITIAL STEPS FOR INSTALLING YOUR DRYER Part 3 Connection of Gas Supply Electrical Plug Connections STEP 4 STEP 5 (Gas dryer only). In addition to the following, Following are several warnings and instructions concerning making the electrical connection for electric please refer to manual section on Gas Requirements dryers.
  • Page 14 INITIAL STEPS FOR INSTALLING YOUR DRYER Part 3 Preparation of the Dryer. Dryer Airflow. STEP 6 STEP 8 Effective dryer operation requires appropriate dryer Prior to the first use of this appliance, use all-purpose airflow. The adequacy of the airflow can be cleaning products or a solution of detergent measured by evaluating the static pressure.
  • Page 15 INITIAL STEPS FOR INSTALLING YOUR DRYER Part 3 4) Electric dryers may be vented to the outside STEP 9 Additional Instructions using the back, left, right, or bottom panel. for Installation of Your 5) Gas dryers may be vented to the outside using the Dryer in a Manufactured back, left, or bottom panel.

  • Page 16: Part4. Electrical Requirements For Electric Dryer

    ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER Part 4 Following are additional instructions regarding electrical connections and requirements for electric dryers. Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regula- tions.
  • Page 17 ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER Part 4 If your local codes or ordinances do not allow the The dryer power connection of the dryer has 2 connection of a frame-grounding conductor to the types which defer based on power consumption. neutral wire, use the instructions under this section.

  • Page 18: Part5. Electrical Requirements For Gas Dryers

    ELECTRICAL REQUIREMENTS FOR GAS DRYERS Part 5 120~127Volt, 60 Hertz, with 3-Prong Grounding Plug Following are additional instructions regarding electrical connections and requirements for gas dryers. Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and all applicable local regulations.

  • Page 19: Part5. Electrical Requirements For Gas Dryers

    ELECTRICAL REQUIREMENTS FOR GAS DRYERS Part 5 Grounding Method with Ground insert space Terminal Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage . Grounding Method with Ground insert space Terminal If the AC current outlet has a ground terminal, then separate grounding Ground...

  • Page 20: Part6. Gas Requirements And Instructions

    GAS REQUIREMENTS AND INSTRUCTIONS Part 6 Following are important instructions and information concerning the requirements for the gas supply and service for gas dryers. Important Warning: The gas supply and service for a gas dryer must comply with all local codes and ordinances.

  • Page 21: Part7. Exhaust Requirements And Maintenance

    ABCDEFG EXHAUST REQUIREMENTS AND MAINTENANCE Parte # Part 7 Following are important instructions and information concerning the exhaust requirements for your dryer. Important Warning: To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building.

  • Page 22: Part7. Exhaust Requirements And Maintenance

    ABCDEFG EXHAUST REQUIREMENTS AND MAINTENANCE Parte # Part 7 Exhaust and Dryer Maintenance Cleaning the Lint Screen 1. Clean the lint filter either before drying each load WARNING! or after drying each load. Always make sure the lint filter is clean before starting a new load, Disconnect the dryer’s electric power because a clogged lint filter may increase drying prior to any cleaning or maintenance.

  • Page 23: Part8. Operating Your Dryer

    Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to person, read this entire manual, including the Important Safety Instructions, before operating this dryer. TD-V10115E TD-V10115G EST. TIME...

  • Page 24: Part8. Operating Your Dryer

    ABCDEFG OPERATING YOUR DRYER Parte # Part 8 Cycle Select Button 2. Manual Dry Cycles By dialing the knob, select the desired cycle based Use Manual Cycles to select a specific amount of on laundry types and conditions. drying time and a drying temperature. When a Manual Cycle is selected, the ESTIMATED TIME 1.
  • Page 25 ABCDEFG OPERATING YOUR DRYER Parte # Part 8 Child Lock Drying Time Control Use Time Dry Option to change Child Lock can be used to prevent your children from undesirable use Drying Time on your own. You on control panel while the dryer is can select the desired operation running.
  • Page 26 ABCDEFG OPERATING YOUR DRYER Parte # Part 8 Dryness Intensity Control Use this button to set dry level First, select sensor dry cycle. Select dry level to adjust how much you want to dry the load. As the cycle runs, the control senses the dryness of the load and adjusts the time automatically based on the selected dryness level.
  • Page 27 ABCDEFG OPERATING YOUR DRYER Parte # Part 8 Start Button 1. Before use 3. To use a sensor dry cycle Clean lint screen before or after each cycle. Select DRY LEVEL to adjust how dry you want the load. As the cycle runs, the control senses the Place laundry into dryer and shut door.
  • Page 28 ABCDEFG OPERATING YOUR DRYER Parte # Part 8 5. Pausing or restarting To pause the dryer at Note any time Drying will continue from where the cycle was interrupted if you close the door and press START within 10 minutes. If the cycle is Open the door or press START/PAUSE once.

  • Page 29: Part9. Troubleshooting Guide

    ABCDEFG TROUBLESHOOTING GUIDE Parte # Part 9 Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. 1. Problem : My Dryer Won’t Start Question What to Do Confirm that the dryer’s plug is securely and completely pushed into the laundry Is the dryer plugged in? room’s power outlet...

  • Page 30: Part9. Troubleshooting Guide

    ABCDEFG TROUBLESHOOTING GUIDE Parte # Part 9 4. Problem : There is Lint on my Clothes Question What to Do Is your lint filter full? Please refer to the manual section on cleaning the lint filter, and please confirm that the lint filter is clean.
  • Page 31 ABCDEFG TROUBLESHOOTING GUIDE Parte # Part 9 7. Problem : It takes too long for my clothes to dry Question What to Do Did you properly sort your loads of Separate heavy weight items from light weight items when creating loads. laundry? Heavy fabrics take longer to dry because they tend to retain more moisture.

This manual is also suitable for:

Td-v10115g
