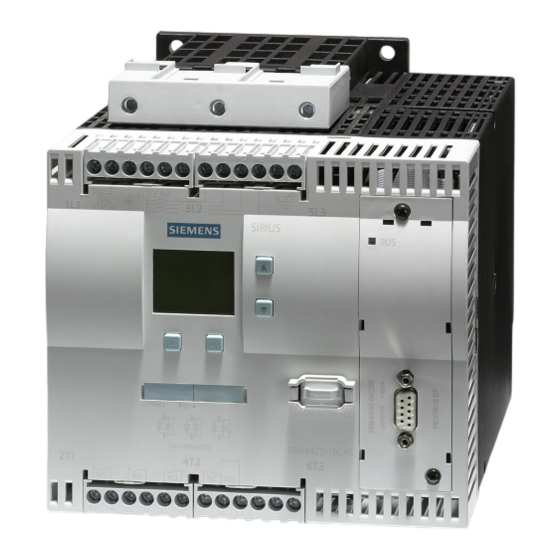

Siemens SIRIUS 3RW44 Getting Started

Industrial controls, function block library for simatic pcs 7, library v8.2
Hide thumbs Also See for SIRIUS 3RW44:
Table of Contents

Advertisement

Quick Links

Download this manual See also: System Manual, User Manual
Industrial Controls
Function Block Library SIRIUS Soft Starter 3RW44 for SIMATIC PCS 7
SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2
Getting Started
Edition
07/2016
Answers for industry.

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIRIUS 3RW44

Summary of Contents for Siemens SIRIUS 3RW44

  • Page 1 Industrial Controls Function Block Library SIRIUS Soft Starter 3RW44 for SIMATIC PCS 7 SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started Edition 07/2016 Answers for industry.
  • Page 3 ___________________ SIRIUS Soft Starter 3RW44 PCS 7 Preface Library V8.2 ___________________ Security information Product specific security ___________________ Industrial Controls information ___________________ Introduction SIRIUS Soft Starter 3RW44 SIRIUS Soft Starter 3RW44 PCS 7 ___________________ Library V8.2 Getting Started ___________________ References Getting Started ___________________ List of Abbreviations 07/2016...

  • Page 4: Edition

    Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 5: Table Of Contents

    Table of contents Preface ..............................7 Security information ..........................11 Product specific security information......................13 Introduction .............................. 15 Introduction ..........................15 Getting Started ............................17 Installation ..........................17 HW Config ..........................18 CFC ............................20 Operator Station ........................25 References .............................. 35 List of Abbreviations ..........................
  • Page 6 Table of contents SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 7: Preface

    Basic knowledge of creating a PCS 7 project is necessary. You will find information about this in the Process Control System PCS 7; Getting Started (V8.0 or higher with APL) documentation on the Internet (https://support.industry.siemens.com/cs/document/109485954). Conventions This documentation contains designations of the software interface elements. If you have...
  • Page 8 You can find further relevant details in the following manuals: – SIMATIC Process Control System PCS 7 PC Configuration and Authorization (V8.0) on the Internet (https://support.industry.siemens.com/cs/document/68157327/). – SIMATIC Process Control System PCS 7 Released Modules (V8.0) on the Internet (https://support.industry.siemens.com/cs/document/109736547/).
  • Page 9 Preface Creating a PCS 7 project This PCS 7 example project was created with the following hardware for the automation station (AS): Table 1- 2 Hardware - Automation station 1: Configuration direct on the master system Order number Description 6ES7 410-5HX08-0AB0 SIMATIC S7-400, CPU 410-5H with 1*DP and 2*PN interfaces 6ES7 407-0KA02-0AA0 SIMATIC S7-400, power supply PS 407 10A, AC 120/230V/10A standard PS...
  • Page 10 Preface SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 11: Security Information

    In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks.
  • Page 12 Security information SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 13: Product Specific Security Information

    PCS 7 to support a secure operation, such as: ● User rights ● Password protection of – WinCC For more information, click here (https://support.industry.siemens.com/cs/document/60119725). SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 14 Product specific security information SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 15: Introduction

    ● WinCC-Explorer ● WinCC Refer "Process Control System PCS 7 Getting Started (https://support.industry.siemens.com/cs/document/109485954)" for further details. You can find the manuals for your PCS 7 Version in the manual collection. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 16 Introduction 4.1 Introduction System ● Installed and compatible PCS 7 version ● Installed Soft Starter 3RW44 library ● PCS 7 Multiproject (created by Project-Wizard). Refer to Readme-File for this library for software details and steps to follow to migrate the existing project.

  • Page 17: Getting Started

    Getting Started Installation Installation The Setup program will guide you through the required steps. Use "< Back" and "Next >" buttons to navigate through the screens during the installation process. The installation program supports German and English. You can choose your language at the initial screen. The Library Soft Starter 3RW44 has two components: ●...

  • Page 18: Hw Config

    Getting Started 5.2 HW Config HW Config HW Config Open HW-Config and switch the hardware catalog profile to Standard: Below are the Soft Starter objects for: Communication Integration Catalog path PROFIBUS PROFIBUS DP > Switching Devices > Motor starter > Direct soft starter PROFIBUS DP >...
  • Page 19 Getting Started 5.2 HW Config Use Soft Starter ES to configure the Soft Starter device. It may be activated out of HW- Config by double clicking the module in slot 1 of the Soft Starter object. The Properties dialog opens. Switch to tab Parameter and click the button Parameter. Soft Starter ES opens.

  • Page 20: Cfc

    Master data library. Since this would be beyond the scope of this document, we recommend you to take a look in: Process Control System PCS 7 CFC for SIMATIC S7 Function manual (https://support.industry.siemens.com/cs/document/109736727). With the template stored in the Master data library, follow the below steps.
  • Page 21 Getting Started 5.3 CFC 3. Expand the Master data library node ("ProjName" + "_Lib" e.g.: GS_SoSt_Lib). You will find two nodes: – Blocks – Charts 4. Expand the Charts node. Now you will see the Direct_Soft_Starter template. 5. Drag the Direct_Soft_Starter object by pressing the left mouse button and drop the object in the Chart view.
  • Page 22 Since this is a short example, we will just hand over the devices input address as it is displayed in HW-Config. We recommend using the symbol table for large projects. Refer "SIMATIC Process Control System PCS 7 Engineering System (https://support.industry.siemens.com/cs/document/109485969)". 2. Right click on Input address of 3RW44 Soft Starter device and select Interconnection to Address.
  • Page 23 Getting Started 5.3 CFC SSMeas and SSStat If you want to use measurement and/or statistic values (SSMeas, SSStat) for the Soft Starter device, you need to switch to sheet view 2 in the CFC plan. There you will find the additional blocks for the mentioned functions.
  • Page 24 Getting Started 5.3 CFC Download The CFC-Template is now ready for download. Go to CPU > Download or hit CTRL+L or use in the toolbar. Result: Template set up is now complete and ready to use. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 25: Operator Station

    (OS). Compile the OS. You can find details on how to work with the Operator Station in the manual: SIMATIC Process Control System PCS 7 Operator Station. (https://support.industry.siemens.com/cs/document/109485970) Block Icons After activating WinCC you will find the block icon for the motor block: Activate Block icons This library is also shipped with block icon for SSOprtn.
  • Page 26 Getting Started 5.4 Operator Station 4. Check in the checkbox for Create block icon. 5. Confirm the Properties dialog by clicking OK. 6. Compile the OS and activate WinCC. Now you will find two block icons: MotRevL and SSOprtn. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 27 Getting Started 5.4 Operator Station The block icons in detail are: MotRevL SSOprtn Reversible Motor - Large Soft Starter Common Operation functions The block icons give a general feedback of the current device status to the user. Open a faceplate for detailed information about the device. Faceplates Standard faceplates of the block icons: APL - MotRevL...
  • Page 28 Getting Started 5.4 Operator Station SSOprtn SSMeas SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 29 Getting Started 5.4 Operator Station SSStat SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 30 Getting Started 5.4 Operator Station Faceplate-Views Each faceplate provides multiple views: Soft Starter Library MotRevL SSOprtn SSMeas SSStat Default Default Standard 1 Standard 1 • • • • Messages Messages Standard 2 Standard 2 • • • • Trend Limits AV Messages Messages •...
  • Page 31 Getting Started 5.4 Operator Station Navigation between faceplates 1. Open the Standard view of block MotRevL. 2. Click on the button Operation. SSOprtn faceplate opens. Click on navigation button to return to the calling faceplate. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 32 Getting Started 5.4 Operator Station 3. Click on the Measurements button to open the SSMeas faceplate. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 33 Getting Started 5.4 Operator Station SSStat 1. Open faceplate SSOprtn and switch to view Preview. 2. Click the Statistics button. The SSStat Faceplate opens. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
  • Page 34 Getting Started 5.4 Operator Station Note Use the navigation button at SSMeas or SSStat faceplate to return to the corresponding SSOprtn faceplate. SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 35: References

    ● SIMATIC Process Control System PCS 7 Operator Station. (https://support.industry.siemens.com/cs/document/109485970) ● SIMATIC Process Control System PCS 7 PC Configuration and Authorization (V8.0) on the Internet (https://support.industry.siemens.com/cs/document/68157327). ● SIMATIC Process Control System PCS 7 Released Modules (V8.0) on the Internet (https://support.industry.siemens.com/cs/document/109736547).
  • Page 36 References SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...

  • Page 37: List Of Abbreviations

    List of Abbreviations Abbreviations Overview Table 7- 1 Meaning of abbreviations Abbreviation Meaning Automation station Continuous Function Chart Electronic device description Generic Station Description Human machine interface HW Config "Hardware configuration" module in the SIMATIC Manager Object manager Operator station PCS 7 Process Control System 7 Central Processing Unit...
  • Page 38 List of Abbreviations 7.1 Abbreviations SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2 Getting Started, 07/2016, A5E36563533002A/RS-AA/001...
