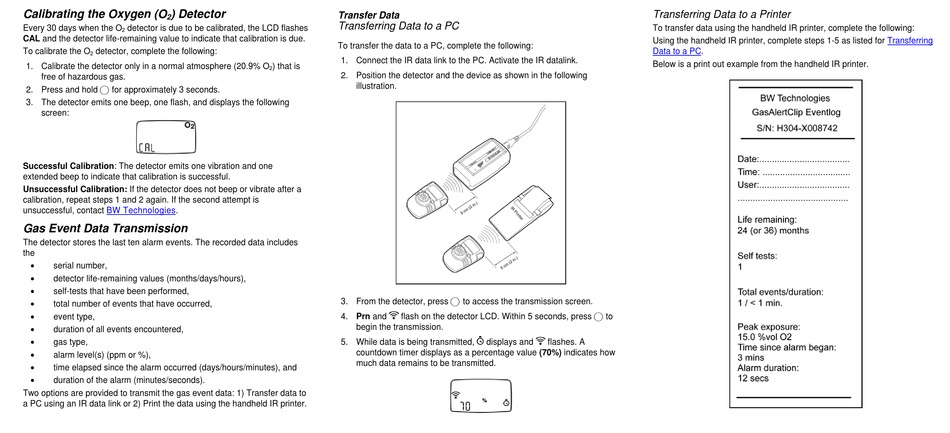

Calibrating the Oxygen (O
) Detector
2
Every 30 days when the O
detector is due to be calibrated, the LCD flashes
2
CAL and the detector life-remaining value to indicate that calibration is due.
To calibrate the O
detector, complete the following:
2
1. Calibrate the detector only in a normal atmosphere (20.9% O
free of hazardous gas.
2. Press and hold C for approximately 3 seconds.
3. The detector emits one beep, one flash, and displays the following
screen:
Successful Calibration: The detector emits one vibration and one
extended beep to indicate that calibration is successful.
Unsuccessful Calibration: If the detector does not beep or vibrate after a
calibration, repeat steps 1 and 2 again. If the second attempt is
unsuccessful, contact
BW
Technologies.
Gas Event Data Transmission
The detector stores the last ten alarm events. The recorded data includes
the
•
serial number,
•
detector life-remaining values (months/days/hours),
•
self-tests that have been performed,
•
total number of events that have occurred,
•
event type,
•
duration of all events encountered,
•
gas type,
•
alarm level(s) (ppm or %),
•
time elapsed since the alarm occurred (days/hours/minutes), and
•
duration of the alarm (minutes/seconds).
Two options are provided to transmit the gas event data: 1) Transfer data to
a PC using an IR data link or 2) Print the data using the handheld IR printer.
Transfer Data
Transferring Data to a PC
To transfer the data to a PC, complete the following:
1. Connect the IR data link to the PC. Activate the IR datalink.
) that is
2
2. Position the detector and the device as shown in the following
illustration.
3. From the detector, press C to access the transmission screen.
4. Prn and
flash on the detector LCD. Within 5 seconds, press C to
begin the transmission.
5. While data is being transmitted,
countdown timer displays as a percentage value (70%) indicates how
much data remains to be transmitted.
Transferring Data to a Printer
To transfer data using the handheld IR printer, complete the following:
Using the handheld IR printer, complete steps 1-5 as listed for
Data to a
Below is a print out example from the handheld IR printer.
Y
displays and
flashes. A
PC.
Transferring
