I n d u s t r i a l M o t h e r b o a r d

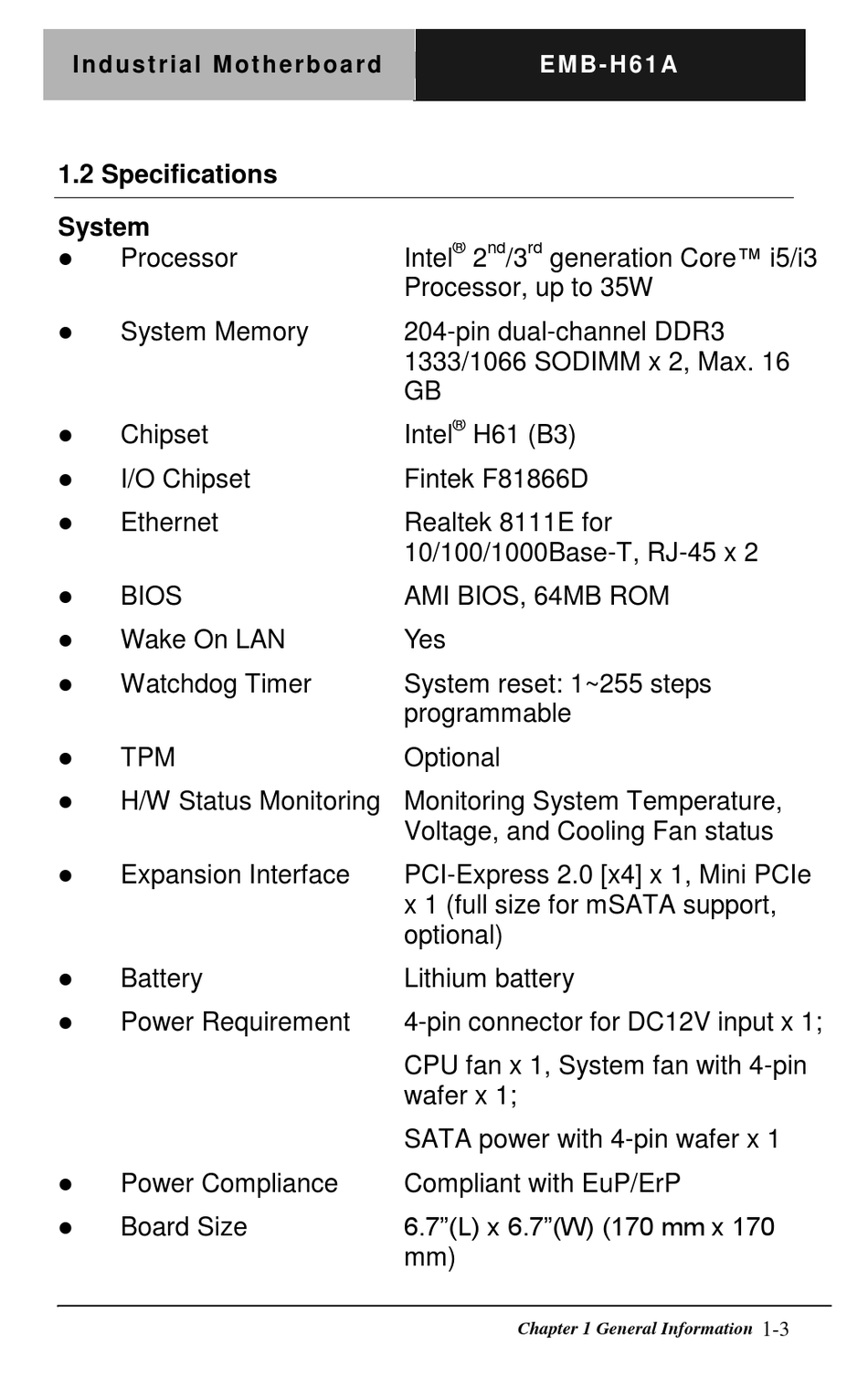

1.2 Specifications

System
 Processor
 System Memory
 Chipset
 I/O Chipset
 Ethernet

BIOS

Wake On LAN
 Watchdog Timer
 TPM
 H/W Status Monitoring Monitoring System Temperature,
 Expansion Interface
 Battery
 Power Requirement
 Power Compliance
 Board Size
E M B - H 6 1 A
® nd rd
Intel 2 /3 generation Core™ i5/i3
Processor, up to 35W
204-pin dual-channel DDR3
1333/1066 SODIMM x 2, Max. 16
GB
®
Intel H61 (B3)
Fintek F81866D
Realtek 8111E for
10/100/1000Base-T, RJ-45 x 2
AMI BIOS, 64MB ROM
Yes
System reset: 1~255 steps
programmable
Optional
Voltage, and Cooling Fan status
PCI-Express 2.0 [x4] x 1, Mini PCIe
x 1 (full size for mSATA support,
optional)
Lithium battery
4-pin connector for DC12V input x 1;
CPU fan x 1, System fan with 4-pin
wafer x 1;
SATA power with 4-pin wafer x 1
Compliant with EuP/ErP
6.7"(L) x 6.7"(W) (170 mm x 170
mm)
Chapter 1 General Information 1-3
