SCHEMATIC DIAGRAMS
Contents
Block diagram
Standard schematic diagrams
Printed circuit boards

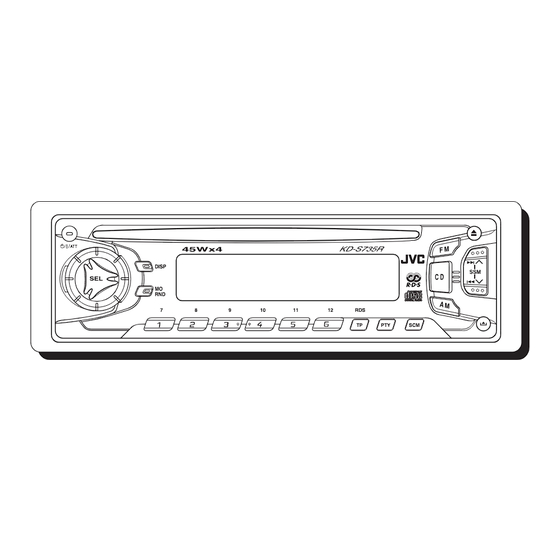

CD RECEIVER
KD-S735R
CD-ROM No.SML200212
45Wx4
DISP
MO
RND
7
8
9
COPYRIGHT
2002 VICTOR COMPANY OF JAPAN, LTD.
10
11
12
RDS
TP
PTY
SCM
COMPACT
DIGITAL AUDIO
E
EX
2-1
2-2
2-5~6
KD-S735R
Area Suffix
Continental Europe
Central Europe
No.49762SCH
Dec. 2002

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-S735R

Summary of Contents for JVC KD-S735R

  • Page 1 KD-S735R SCHEMATIC DIAGRAMS CD RECEIVER KD-S735R CD-ROM No.SML200212 45Wx4 DISP COMPACT DIGITAL AUDIO Area Suffix Continental Europe Central Europe Contents Block diagram Standard schematic diagrams Printed circuit boards 2-5~6 No.49762SCH COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD. Dec. 2002...

  • Page 2: Safety Precaution

    Safety precaution Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.

  • Page 3: Block Diagram

    KD-S735R Block diagram GEB10007A POWER 10V/9V/8V/5V REGULATOR IC961 ILL10V ACC5V LOADING MOTOR BTL DRIVER FEED MOTOR LOADING+ LOADING+ IC501 SPINDLE MOTOR LOADING- LOADING- FEED+ FEED+ REST SW FEED- FEED- SPINDLE+ SPINDLE+ SPINDLE- SPINDLE- REST SW SW1~SW4 SW1~SW4 DSP&DAC OUTFL FRONT L IC541 E.VOLUME...

  • Page 4: Standard Schematic Diagrams

    KD-S735R KD-S735R Standard schematic diagrams Main amp. section QAU0222-001 QNB0100-002 4.7u C189 1/50 R187 C191 IC301 A-GND C169 1/50 R167 1/50 LA4743K Q181 C171 2SD601A/R/-X 1/50 0.1/50 2SD601A/R/-X CH.L 1SS133-T1 1SS133-T1 C166 R162 0.0056 C351 R351 2.2/50 Q161 C163 CD.L 0.15...
  • Page 5 KD-S735R Mecha control section R586 R508 R584 R581 C582 4.7/25 R585 1.5K C584 R-CH 120P R507 8.2k C581 820P D501 DSK10C-T1 R504 IC581 R501 8.2k NJM4565M-WE R506 D502 IC501 DSK10C-T1 LA6567H-X C591 820P C595 100/10 R591 C594 C592 4.7/25 R595...
  • Page 6 KD-S735R KD-S735R LCD & Key switch section JS690 QSW0863-002 IC602 RPM6938-SV4 R661 R662 C681 0.022 CJ601 VCM0335-001 ILL10V LCD1 REMOCON QLD0194-001 ACC5V ENC1 ENC2 BUS2 LCDCL LCDDA LCDCE KEY0 BUS1 KEY1 KEY2 R605 R604 R603 R602 R601 Key0 3.9k 2.7k 1.8k...

  • Page 7: Printed Circuit Boards

    KD-S735R Printed circuit boards Main board (Forward side) IC961 R904 C901 Q321 CP961 D910 Q351 Q331 L961 C915 J801 Q341 R323 C309 C392 C393 C394 R333 R343 C891 R892 D911 C905 C907 C184 C912 C181 C911 C351 C904 C301 C391...
  • Page 8 KD-S735R Main board (Reverse side) L961 IC961 CP961 J301 J801 D911 C915 C801 R342 C313 C901 B302 B314 B313 R185 B316 B315 C184 C912 B901 C902 C907 B303 R186 C911 C181 C913 C188 R905 R321 C182 R906 R341 C933 C187...
  • Page 9 KD-S735R < M E M O >...
  • Page 10 KD-S735R VICTOR COMPANY OF JAPAN, LIMITED MOBILE ELECTRONICS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan 200212 (No.49762SCH)
