JVC KD-S73R Service Manual

Hide thumbs Also See for KD-S73R:

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
02
2003
49780
KD-S73R/KD-S71R
COMPACT
DIGITAL AUDIO
1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2
Disassembly method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
3
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
4
Description of major ICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27

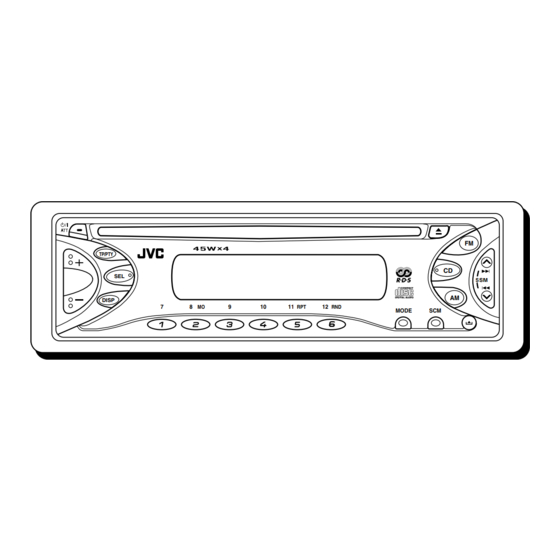

CD RECEIVER
TP/PTY
SEL
DISP
7
8
TABLE OF CONTENTS
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.
9
10
11
12
MO
RPT
RND
MODE
SCM
E ------- Continental Europe
EX ---------- Central Europe
KD-S73R/KD-S71R
FM
CD
SSM
AM
Area Suffix
No.49780
2003/02

Advertisement

loading

Related Manuals for JVC KD-S73R

Summary of Contents for JVC KD-S73R

  • Page 1 KD-S73R/KD-S71R SERVICE MANUAL CD RECEIVER 49780 2003 KD-S73R/KD-S71R TP/PTY DISP MODE Area Suffix E ------- Continental Europe COMPACT EX ---------- Central Europe DIGITAL AUDIO TABLE OF CONTENTS Important Safety Precautions ............1-2 Disassembly method .

  • Page 2: Important Safety Precautions

    KD-S73R/KD-S71R SECTION 1 Important Safety Precautions 1.1 Safety Precautions Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
  • Page 3 KD-S73R/KD-S71R 1.2 Preventing static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

  • Page 4: Disassembly Method

    KD-S73R/KD-S71R SECTION 2 Disassembly method 2.1 Main body 2.1.1 Removing the front panel assembly Front panel assembly (See Fig.1) (1) Push the detach button in the lower right part of the front panel assembly and remove the front panel assembly in the direction of the arrow.
  • Page 5 KD-S73R/KD-S71R 2.1.3 Removing the heat sink (See Fig.4) (1) Remove the two screws B and two screws C on the left side of the main body. Heat sink Fig.4 2.1.4 Removing the bottom cover (See Figs.5 and 6) • Prior to performing the following procedure, remove the front Joint c panel assembly, front chassis assembly and heat sink.
  • Page 6 KD-S73R/KD-S71R 2.1.6 Removing the main board Main board (See Fig.8) • Prior to performing the following procedure, remove the front panel assembly, front chassis assembly, heat sink, bottom cover and rear bracket. (1) Remove the two screws G attaching the main board.
  • Page 7 KD-S73R/KD-S71R 2.1.8 Removing the front board (See Figs.10 to 12) • Prior to performing the following procedure, remove the front panel assembly. (1) Remove the four screws J on the back side of the front panel assembly. (2) Release the eleven joints f.
  • Page 8 KD-S73R/KD-S71R 2.2 CD Mechanism Assembly 2.2.1 Removing the top cover (See Figs.1 and 2) (1) Remove the two screws A on the both side of the body. (2) Lift the front side of the top cover and move the top cover backward to release the two joints a.
  • Page 9 KD-S73R/KD-S71R 2.2.2 Removing the connector board Wires (See Figs.3 to 5) CAUTION: Before disconnecting the flexible wire from the pickup, solder the short-circuit point on the pickup. No observance of this in- struction may cause damage of the pickup. (1) Remove the screw B fixing the connector board.
  • Page 10 KD-S73R/KD-S71R 2.2.3 Removing the DET switch (See Figs.6 and 7) (1) Extend the two tabs c of the feed sw. holder and pull out the switch. (2) Unsolder the DET switch wire if necessary. DET switch Connector board Pickup Fig.6...
  • Page 11 KD-S73R/KD-S71R 2.2.4 Removing the chassis unit (See Figs.8 and 9) • Prior to performing the following procedure, remove the top Chassis unit cover and connector board. Suspension spring (L) Suspension spring (R) (1) Remove the two suspension springs (L) and (R) attaching the chassis unit to the frame.
  • Page 12 KD-S73R/KD-S71R 2.2.5 Removing the clamper assembly (See Figs.10 and 11) • Prior to performing the following procedure, remove the top cover. (1) Remove the clamper arm spring. Clamper arm spring (2) Move the clamper assembly in the direction of the arrow to release the two joints d.
  • Page 13 KD-S73R/KD-S71R 2.2.6 Removing the loading / feed motor assembly (See Figs.12 and 13) • Prior to performing the following procedure, remove the top cover, connector board and chassis unit. (1) Remove the screw C and move the loading / feed motor assembly in the direction of the arrow to remove it from the chassis rivet assembly.
  • Page 14 KD-S73R/KD-S71R 2.2.7 Removing the pickup unit Pickup unit (See Figs.14 to 18) • Prior to performing the following procedure, remove the top cover, connector board and chassis unit. (1) Remove the screw D and pull out the pu. shaft holder from the pu.
  • Page 15 KD-S73R/KD-S71R 2.2.9 Removing the trigger arm Joint k (See Figs.19 and 20) • Prior to performing the following procedure, remove the top cover, connector board and clamper unit. (1) Turn the trigger arm in the direction of the arrow to release Trigger arm the joint k and pull out upward.
  • Page 16 KD-S73R/KD-S71R 2.2.11 Removing the mode sw. / select lock arm Link plate Joint t (See Figs.22 and 23) Mode sw. • Prior to performing the following procedure, remove the top plate assembly. Select lock arm (1) Bring up the mode sw. to release from the link plate (joint t) and turn in the direction of the arrow to release the joint u.
  • Page 17 KD-S73R/KD-S71R 2.2.12 Reassembling the mode sw. / select lock arm Select lock arm spring (See Figs.24 to 26) REFERENCE: Hook w Reverse the above removing procedure. Joint v (1) Reattach the select lock arm spring to the top plate and set...
  • Page 18 KD-S73R/KD-S71R 2.2.13 Removing the select arm R / link plate Link plate Joint c' Joint r (See Figs.27 and 28) Select arm R Joint b' • Prior to performing the following procedure, remove the top plate assembly. (1) Bring up the select arm R to release from the link plate...
  • Page 19 KD-S73R/KD-S71R 2.2.15 Removing the loading roller assembly (See Figs.31 to 33) Loading roller assembly • Prior to performing the following procedure, remove the Roller guide clamper assembly and top plate assembly. spring (1) Push inward the loading roller assembly on the gear side and detach it upward from the slot of the joint g' of the lock arm rivet assembly.
  • Page 20 KD-S73R/KD-S71R 2.2.16 Removing the loading gear 5, 6 and 7 (See Figs.35 and 36) Loading gear bracket • Prior to performing the following procedure, remove the top cover, chassis unit, pickup unit and top plate assembly. Loading gear 6 (1) Remove the screw K attaching the loading gear bracket.
  • Page 21 KD-S73R/KD-S71R 2.2.17 Removing the gears Joint p' (See Figs.37 to 40) • Prior to performing the following procedure, remove the top Change plate cover, chassis unit, top plate assembly and pickup unit. rivet assembly • Pull out the loading gear 3. (See Fig.35.) (1) Pull out the feed gear.
  • Page 22 KD-S73R/KD-S71R 2.2.18 Removing the turn table / spindle motor Turn table (See Figs.41 and 42) • Prior to performing the following procedure, remove the top cover, connector board, chassis unit and clamper assembly. (1) Remove the two screws L attaching the spindle motor as- sembly through the slot of the turn table on top of the body.

  • Page 23: Adjustment

    FM 87.5MHz~108.0MHz 6. Digital tester MW 522kHz~1620kHz 7. Tracking offset meter 144kHz~279kHz 8. Test Disc JVC :CTS-1000 9. Extension cable for check EXTSH002-22P × 1 Dummy load Exclusive dummy load should be used for AM and FM. For FM dummy load,there is a loss of 6dB between SSG output and antenna input.The loss of 6dB need not be considered...
  • Page 24 KD-S73R/KD-S71R 3.2 Troubleshooting 3.2.1 Feed section Is the voltage output at Is the wiring for IC521 Is 5V present at IC581 Check CD 9V IC521 pin u 5V or 0V? (90) ~ (100) correct? pin 6? and 5V. Check the vicinity of IC521.
  • Page 25 KD-S73R/KD-S71R 3.2.5 Signal processing section No sound from either Compare the L-ch and R-ch Is the sound output from to locate the defective point. channel. both channels (L, R)? Check the vicinity of the Normal Is 9V present at IC101 pin Q981 audio power supply.
  • Page 26 KD-S73R/KD-S71R 3.3 Maintenance of laser pickup 3.4 Replacement of laser pickup (1) Cleaning the pick up lens Before you replace the pick up, please try to clean the lens Turn off the power switch and,disconnect the power cord with a alcohol soaked cotton swab.

  • Page 27: Description Of Major Ics

    KD-S73R/KD-S71R SECTION 4 Description of major ICs 4.1 HA13164A (IC901) : Regulator • Terminal layout 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 • Block diagram 100u 0.1u BATT.DET OUT ANT OUT Surge Protector 0.1u...
  • Page 28 KD-S73R/KD-S71R 4.2 LA4743K (IC301) : Power amp. • Block diagram 2200 F 0.022 F Vcc 1/2 Vcc 3/4 IN 1 OUT 1+ 0.22 F OUT 1- PWR GND1 Protective circuit OUT 2+ IN 2 OUT 2- 0.22 F PWR GND2...
  • Page 29 KD-S73R/KD-S71R • Pin layout • Pin function Pin No. Symbol Function Pin No. Symbol Function Header of IC FLIN Front Lch input Power GND RLIN Rear Lch input Outpur(-) for front Rch ONTIME Power on time control STDBY Stand by input...
  • Page 30 KD-S73R/KD-S71R 4.3 LA6579H-X (IC561) : 4-Channel bridge driver • Pin layout & Block diagram VIN1-A VIN1 VIN1_SW [H]: OP-AMP_A [L]: OP-AMP_B VIN1+A VIN1-B VCCP1 VIN1+B Signal system S-GND power supply VIN1-SW All outputs ON/OFF H : ON VO2+ MUTE MUTE...
  • Page 31 KD-S73R/KD-S71R • Pin function Pin No. Symbol Function VIN1-A CH1 input AMP_inverted input VIN1+A CH1 input AMP_non-inverted input VCCP1 CH1 and CH2 power stage power supply VO1+ Output pin(+)for channel 1 VO1- CH1 output pin (-) for channel 1 VO2+...
  • Page 32 KD-S73R/KD-S71R 4.4 LC75823W (IC601) : LCD driver • Pin Layout 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 •...
  • Page 33 KD-S73R/KD-S71R 4.5 SAA6579T-X(IC71):RDS detecter • Pin layout QUAL DATA Vref OSCO OSCI TEST SCOUT MODE • Block diagram ANTI- 57 kHz OSCILLATOR QUALITY BIT RECONSTRUCTION ALIASING BAND PASS GENERATOR FILTER FILTER (8th ORDER) DIVIDER BIPHASE COSTAS LOOP CLOCKED DIFFERENTIAL VARIABLE AND...
  • Page 34 KD-S73R/KD-S71R 4.6 TA2157FN-X(IC501):RF amp • Terminal layout • Block diagram PEAK 50 A BOTTOM PEAK 1.75k 240k 15pF x0.5 240k 15pF x0.5 180k 40pF RFGC (APC SW) (TE BAL) (AGC Gian) (TE BAL) VCTRLPIN Normal mode APC ON -50% +12dB...
  • Page 35 KD-S73R/KD-S71R • Pin function Pin No. Symbol Function 3.3V power supply pin Main-beam amp input pin Main-beam amp input pin Sub-beam amp input pin Sub-beam amp input pin Monitor photo diode amp input pin Laser diode amp output pin APC circuit ON/OFF control signal, laser diode (LDO) control signal input or bottom/peak detection frequency change pin.
  • Page 36 KD-S73R/KD-S71R 4.7 TC94A14FA (IC521) : DSP & DAC • Terminal layout & block daiagram Clock generator 1-bit Servo control Digital equalizer Address automatic circuit adjustment circuit Data CLV servo slicer 16 k Synchronous guarantee decoder Audio out Digital circuit output...
  • Page 37 KD-S73R/KD-S71R Symbol I/O Descroption TMAX O TMAX detection result output pin. TMAX Detection Result TMAX Output Longer than fixed period "PV " Within fixed period "HiZ" Shorter than fixed period "AV " LPFN I Inverted input pin for PLL LPF amp.
  • Page 38 KD-S73R/KD-S71R 4.8 TEA6320T-X (IC161) : E.volume • Pin layout OUTRR OUTLR OUTRF OUTLF MUTE Vref CD-CH TAPE TUNER • Block diagram VOLUME 2 MUTE 0 to 55 dB FUNCTION BALANCE ZERO CROSS FENDER REAR POWER DETECTOR SUPPLY VOLUME 1 BASS...
  • Page 39 KD-S73R/KD-S71R 4.9 NJM4565M-WE (IC571) : CD L.P.F. A OUTPUT B OUTPUT A INPUT A INPUT B INPUT B INPUT (No.49780)1-39...
  • Page 40 KD-S73R/KD-S71R 4.10 UPD178078GF-593 (IC701) : System CPU • Pin layout • Pin function Pin No. Symbol Function STEERING REMOTE Steering remote input No use VOL-DA I/O VOL IC communication line VOL-CLK VOL IC communication line No use LCD-DA LCD driver communication line...
  • Page 41 KD-S73R/KD-S71R Pin No. Symbol Function RESET System reset CD mecha switch REMOCON Remocon input No use TEL MUTING Tel muting input POWER Power control CD-ON CD power control MUTING Muting control 58~67 No use CD-RW RF gain control L = CD-RW, H = CD-DA...
  • Page 42 KD-S73R/KD-S71R VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan (No.49780) Printed in Japan 200302WPC...

This manual is also suitable for:

Kd-s71r
