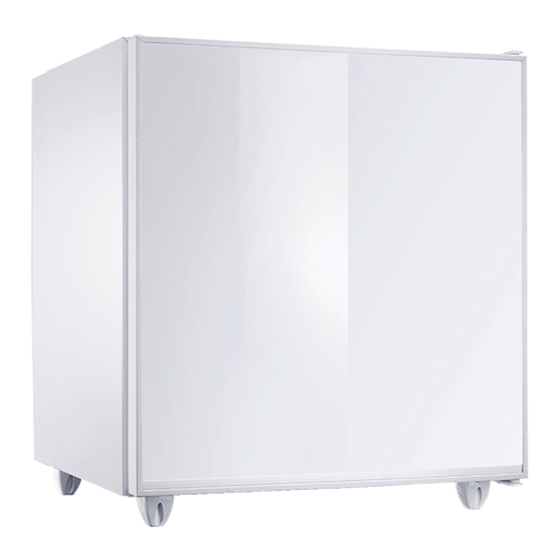

Dometic EA3280 Installation And Operating Manual
Refrigeration classic
Hide thumbs
Also See for EA3280:
- Operating instructions manual (8 pages) ,
- Operating instructions manual (8 pages) ,
- Manual (8 pages)
Related Manuals for Dometic EA3280
Summary of Contents for Dometic EA3280
- Page 1 REFRIGERATION CLASSIC EA3280 (A803E) Fridge Installation and Operating Manual..7...
- Page 2 EA3280 (A803E)
- Page 3 EA3280 (A803E) 40 mm...
- Page 4 EA3280 (A803E) 90°...
- Page 5 EA3280 (A803E)
- Page 6 EA3280 (A803E) 1 8 0 ° 1 8 0 °...
-
Page 7: Table Of Contents
EA3280 (A803E) Explanation of symbols Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. -
Page 8: Safety Instructions
Safety instructions EA3280 (A803E) NOTE Supplementary information for operating the product. Safety instructions General safety WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard • Do not operate the cooling device if it is visibly damaged. - Page 9 EA3280 (A803E) Safety instructions CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard • Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use Health hazard •...
-
Page 10: Intended Use
• Never immerse the cooling device in water. • Protect the cooling device and cables against heat and moisture. Intended use The fridge EA3280 (A803E) is suitable for cooling food. CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food you wish to cool. -
Page 11: Scope Of Delivery
EA3280 (A803E) Scope of delivery Scope of delivery Quantity Description Fridge Installation and operating manual Technical description The cooling device has a freezer compartment, which can be cooled down to a min- imum temperature of –18 °C. It requires 6 to 10 hours for the cooling device to reach its operating temperature. If the device is filled with foods and drinks, the cooling process can last between 8 and 18 hours. - Page 12 Installation EA3280 (A803E) NOTE • The cooling device should not be exposed to heat radiation from hot appliances (e.g. stoves). • The ventilation apertures at the top of the cooling device must not be covered up. The cooling device is designed for free-standing installation, but it can also be installed in a built-in cabinet.
- Page 13 EA3280 (A803E) Installation Installation in a built-in cabinet To install the cooling device follow these steps: ➤ Fix the cooling device in the built-in cabinet as shown (fig. 4 to fig. 6, page 3). ➤ Connect the connection cable to the AC mains supply.
-
Page 14: Operation
Operation EA3280 (A803E) Operation WARNING! Combustible liquids and gases must not be stored in the cooling device. The liquids or gases can explode and this explosion can result in serious injuries or even death. CAUTION! Health hazard! • Please ensure that the cooling capacity of the device is suitable for storing the food you wish to cool. - Page 15 EA3280 (A803E) Operation Energy saving tips • Choose a well ventilated location which is protected from direct sunlight. • Allow warm food to cool down first before placing it in the cooling device to keep cool. • Do not open the cooling device more often than necessary.
-
Page 16: Cleaning And Maintenance
Cleaning and maintenance EA3280 (A803E) Cleaning and maintenance WARNING! Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage • Never clean the cooling device under running water or in dish water. -
Page 17: Troubleshooting
EA3280 (A803E) Troubleshooting ✓ The defrost water runs into a collection container near the cooling unit. ➤ Wipe the device dry with a cloth. ➤ Reconnect the device from the AC mains supply. ✓ The cooling device can be refilled with foods and drinks. Wait until the following day before freezing ice cubes, to give the device sufficient time to reach its oper- ating temperature. -
Page 18: Disposal
Disposal EA3280 (A803E) Problem Possible cause Suggested remedy The devices cooling The cooling unit is not Check that the ventilation grids are not performance is poor. sufficiently ventilated. covered. Check that device has been installed in accordance with fig. 2, page 2. -
Page 19: Technical Data
EA3280 (A803E) Technical data Technical data EA 3280 (A803E) Gross capacity: 70 l Usable capacity: 65 l Energy efficiency class: Energy consumption (kWh/annum): 1,6 kWh/24 h Climate class: Ambient temperature: +16 °C to +32 °C Noise emission (sound power): 0 dB... - Page 20 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
