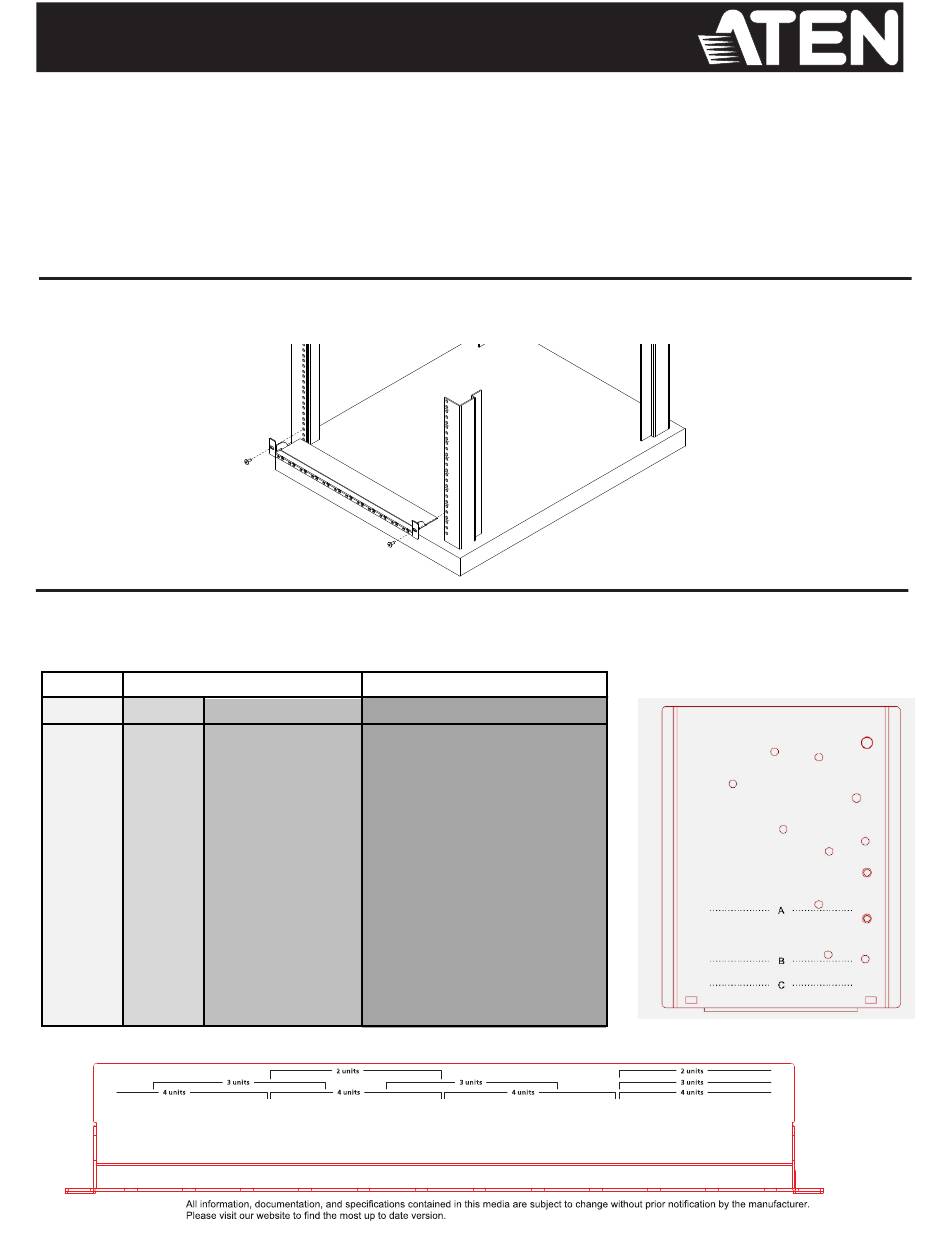

ATEN VE-RMK1U User Instructions

Video Extender Rack Mount Kit
VE-RMK1U
The VE-RMK1U kit provides a mounting frame and acces-
sories to install up to 4 ATEN Video Extenders in 1U of
rack space.
Installation:
1. Position the VE-RMK1U Frame on the front of the rack and align the holes in the mounting brackets
with the holes in the rack, then screw the mounting brackets to the rack. Rack screws are not provided.
2. Find the letter for your ATEN Video Extender in the table. Aligning the front of the video extender with
the letter on the mounting plate will position the holes needed to screw the video extender to the
mounting plate. The table's top row shows how many units can be installed in one VE-RMK1U Frame.
4 Units 3 Units
A B
CE100 VB802
VE560 VE150A
VE600A VE170
VE601 VE172R
VE602
VE800A
VE801
VE803
VE810
VE901
VE811
Mounting Positions on Frame
C
CE250A UC4854 CE350
CE700A VE802 CE370
CS72D VE812 CE600
CS72E VE814 CE602
UC2322 VE882 CE604
UC2324 VE892 CE610A
UC4852 VS182A CE624
VE1812 VS192 VE1832
VS194
CS724KM
VE2812T
VE814A
VE883
VE8900
VE816R
VE8950
VS481C
VS182B
VS184B
KE6900ST
2 Units
C
CE750
CE750A
CE770
CN8000A
CE800B
CN8000
CS74D
VS481A
VS481B
CS74E
VC880
User Instructions
Package Contents:
1 VE-RMK1U Frame
4 1U Mounting Plates
5 Plastic Captive Screws
6 Hexagon Head Screws
12 Countersunk Head Screws
Mounting Plate
