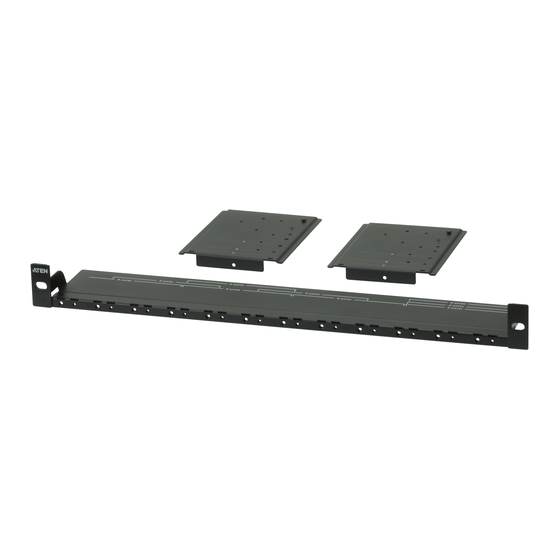

- Page 1 Video Extender Rack Mount Kit VE-RMK1U Installation Guide www.aten.com...
-
Page 2: User Information
VE-RMK1U Installation Guide User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 3: Package Contents
© Copyright 2019 ATEN® International Co., Ltd. Manual Date: 2019-04-12 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 4: Table Of Contents
VE-RMK1U Installation Guide Contents User Information ..........ii Package Contents . -
Page 5: Installation
Installation 1. Different ATEN devices use different sets of screw holes on the mounting plate to install. Use the table below to find out: Whether if your ATEN device is built-in with rack ears The alignment line that your ATEN device uses... - Page 6 VE-RMK1U User Manual 2. To install a device that is equipped with rack ears, go to the next step. To install a device that is not equipped with rack ears, go to step 4 (page 5). 3. Follow the steps below to rack mount a device that has rack ears.
- Page 7 VE-RMK1U User Manual c) Position the VE-RMK1U frame on the front of your rack, align the holes in the frame with the holes in the rack, and then secure the frame to the rack with self-prepared screws. d) Align your device and mounting plate assembly to one of the slots on the VE-RMK1U Frame.
- Page 8 Plastic Captive Screw Note: The maximum number of units that a VE-RMK1U Frame supports may vary across models. Refer to the table in step 1 for details. If you have any VE8900/8950 devices installed on the mounting plate,...
- Page 9 VE-RMK1U User Manual 4. Follow the steps below to rack mount a device that does not have rack ears. Example 1: A device that aligns to line A or B a) Align the device to line A or B in the illustrated orientation.
- Page 10 VE-RMK1U User Manual c) Position the VE-RMK1U frame on the front of your rack, align the holes in the frame with the holes in the rack, and then secure the frame to the rack with self-prepared screws. d) Align your device and mounting plate assembly to one of the slots on the VE-RMK1U Frame.
- Page 11 VE-RMK1U User Manual e) Secure the mounting plate to the frame with a plastic captive screw provided in the package. For a device that aligns to line A, you can install up to 4 units: Plastic Captive Screw For a device that aligns to line B, you can install up to 3 units:...
- Page 12 VE-RMK1U User Manual Example 2: A device that uses line C a) Align the device to its alignment line in the illustrated orientation. Example: CE610A Mounting Plate Front View CE610A Mounting Plate Top View Mounting Plate CE610A b) Secure the device to the mounting plate from the backside using the supplied countersunk head screws.
- Page 13 VE-RMK1U User Manual c) Position the VE-RMK1U frame on the front of your rack, align the holes in the frame with the holes in the rack, and then secure the frame to the rack with self-prepared screws. d) Align your device and mounting plate assembly to one of the slots on the VE-RMK1U Frame.
- Page 14 Secure the mounting plate to the frame with a plastic captive screw provided in the package. Plastic Captive Screw Note: The maximum number of units that a VE-RMK1U Frame supports may vary across models. Refer to the table in step 1 for details.
-
Page 15: Technical Support
VE-RMK1U User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 North America Email Support support@aten-usa.com... -
Page 16: Limited Warranty
