TV, VCR, and Cable Box
Cable Box
1
From
cable
1

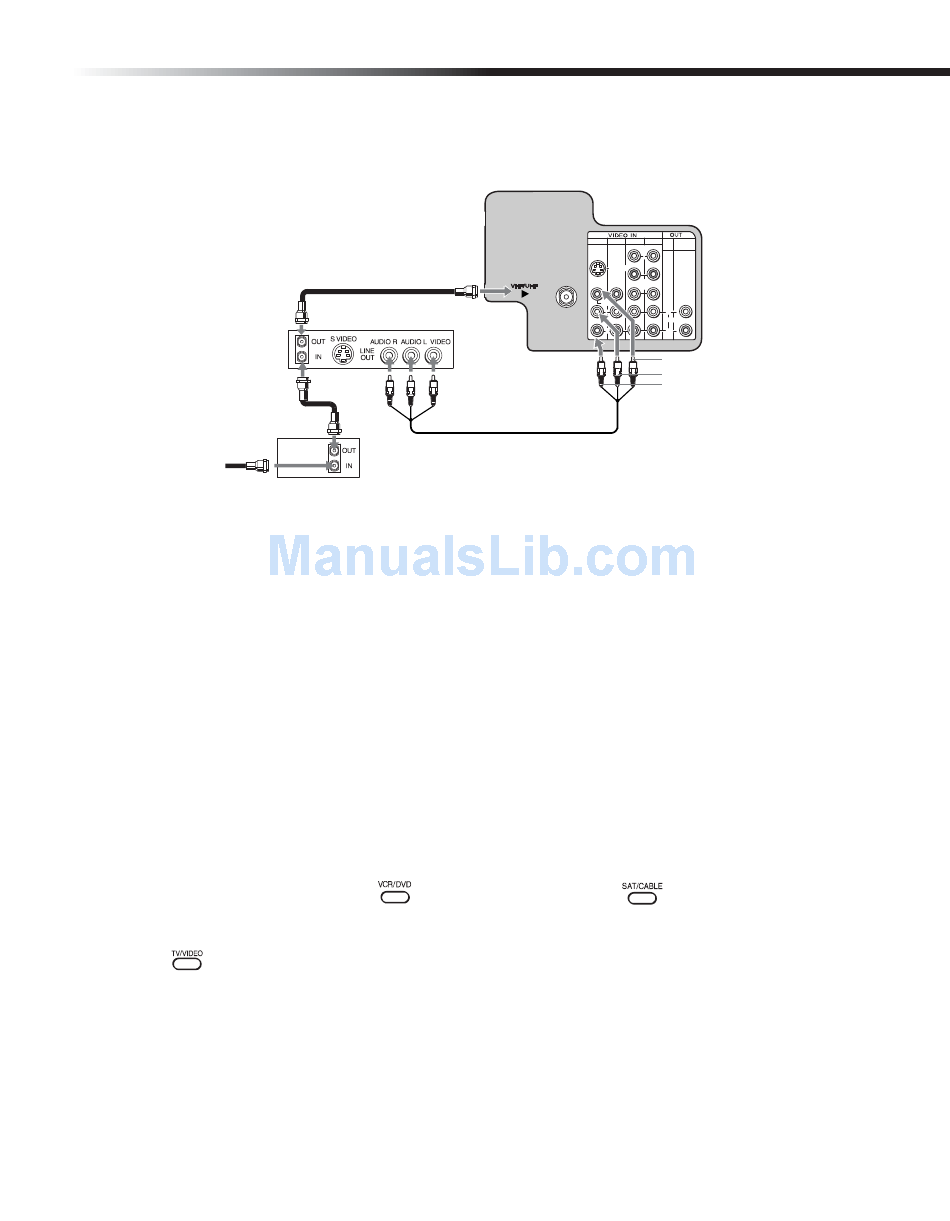

Connect the coaxial cable from your cable service to the IN jack on your cable box.
2
Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the IN jack
on your VCR.
3
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
4
If your VCR is equipped with video outputs, you can get better picture quality by
connecting audio/video cables (not supplied) from AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
Optional connection
❏
For better picture quality, use S VIDEO inserted of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
Using your TV with this connection
❏
Program your Sony remote control to operate your VCR or cable box (see page 5).
❏
To activate your remote, press
box. To do this, first program your remote control, then use the Channel Fix feature to set
your TV to channel 3 or 4 (see page 29).
❏
Press repeatedly to switch between VCR input (VIDEO input), VHF/UHF (local
channels or unscrambled), or cable box (cable system or scrambled channels).
3
VCR
2
to operate your VCR or
Rear of TV
1 3 4 5 AUDIO OUT
(VAR/FIX)
Y
S VIDEO
P B
P
R
VIDEO
L L
(MONO) (MONO)
R R
Video (yellow)
Audio L (white)
Audio R (red)
4
to operate your cable
Connecting Your TV
15
