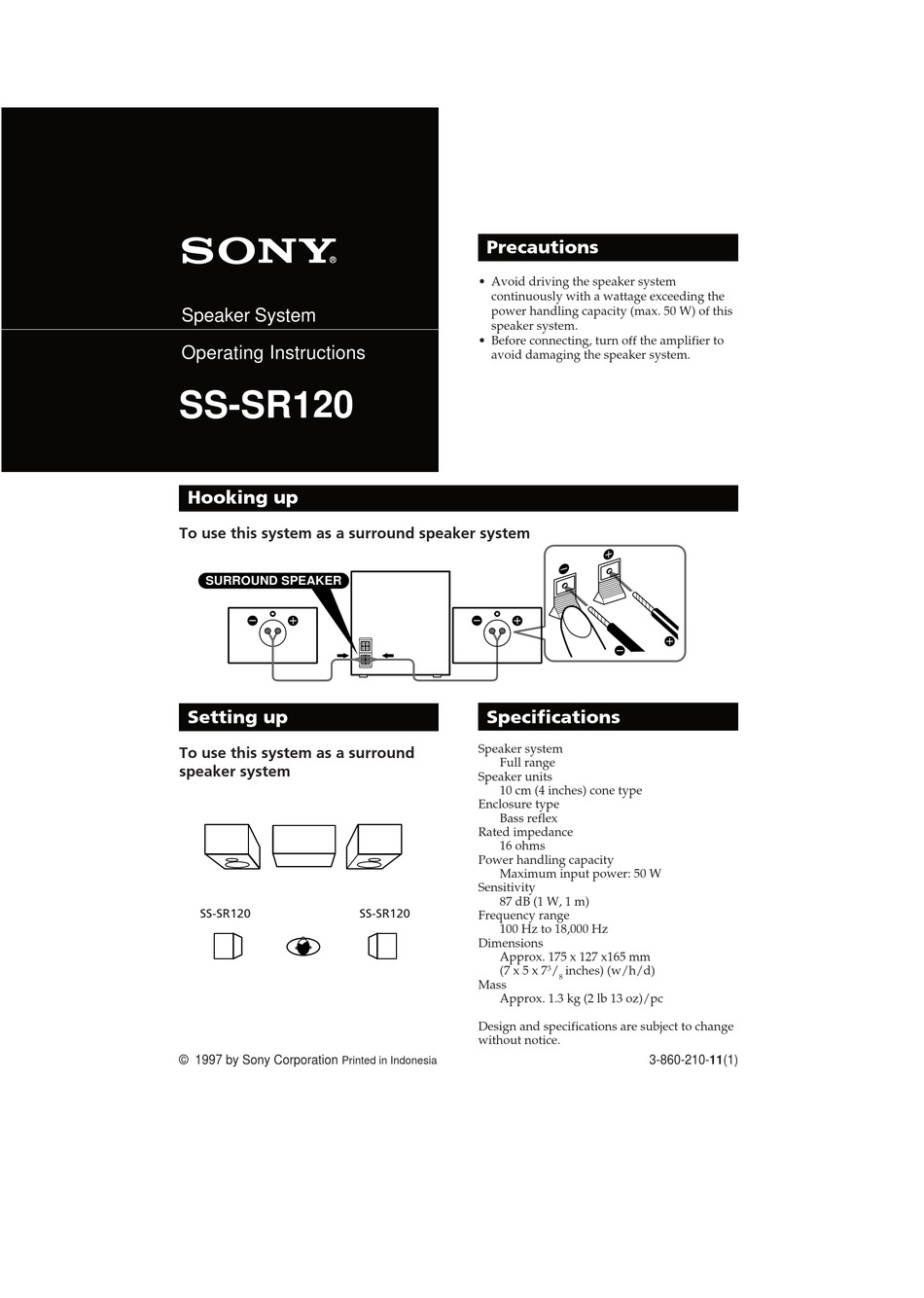

Speaker System
Operating Instructions
SS-SR120
Hooking up
To use this system as a surround speaker system
SURROUND SPEAKER
}
]
Setting up
To use this system as a surround
speaker system
SS-SR120
© 1997 by Sony Corporation
Printed in Indonesia
Precautions
• Avoid driving the speaker system
continuously with a wattage exceeding the
power handling capacity (max. 50 W) of this
speaker system.
• Before connecting, turn off the amplifier to
avoid damaging the speaker system.
}
]

Specifications

Speaker system
Full range
Speaker units
10 cm (4 inches) cone type
Enclosure type
Bass reflex
Rated impedance
16 ohms
Power handling capacity
Maximum input power: 50 W
Sensitivity
87 dB (1 W, 1 m)
SS-SR120
Frequency range
100 Hz to 18,000 Hz
Dimensions
Approx. 175 x 127 x165 mm
(7 x 5 x 7
Mass
Approx. 1.3 kg (2 lb 13 oz)/pc
Design and specifications are subject to change
without notice.
]
}
]
}
3
/
inches) (w/h/d)
8
3-860-210-11(1)
