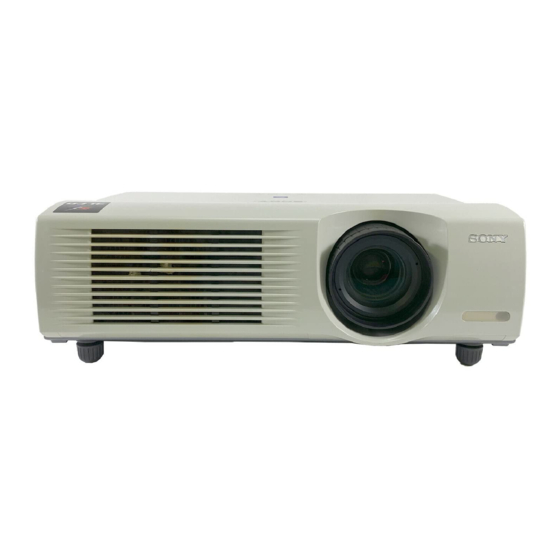

Sony VPL-PX41 Operating Instructions Manual

Sony operating instructions data projector vpl-px41
Hide thumbs Also See for VPL-PX41:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual , Quick Reference Manual
2-592-485-13 (1)
Data Projector
Operating Instructions
VPL-PX41
© 2005 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony VPL-PX41

Summary of Contents for Sony VPL-PX41

  • Page 1 2-592-485-13 (1) Data Projector Operating Instructions VPL-PX41 © 2005 Sony Corporation...
  • Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. THIS APPARATUS MUST BE EARTHED. WARNING This unit has no power switch. When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power cord to socket-...
  • Page 3 following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For the customers in Canada This Class A digital apparatus complies with Canadian ICES-003. Voor de klanten in Nederland •...

  • Page 4: Table Of Contents

    Table of Contents Overview Precautions ... 5 Notes on Installation and Usage ... 6 Unsuitable Installation ... 6 Usage in High Altitude ... 7 Unsuitable Conditions ... 7 Features ... 8 Location and Function of Controls ... 9 Front/Left Side ... 9 Rear/Right Side/Bottom ...

  • Page 5: Overview

    Overview Precautions On safety • Check that the operating voltage of your unit is identical with the voltage of your local power supply. • Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further.

  • Page 6: Notes On Installation And Usage

    Notes on Installation and Usage Unsuitable Installation Do not install the projector in the following situations. These installations may cause malfunction or damage to the projector. Poorly ventilated • Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.

  • Page 7: Usage In High Altitude

    Usage in High Altitude When using the projector at an altitude of 1,500 m or higher, turn on “High Altitude Mode” in the INSTALL SETTING menu. Failing to set this mode when using the projector at high altitudes could have adverse effects, such as reducing the reliability of certain components.

  • Page 8: Features

    • High brightness This projector is equipped with a high- efficiency optical system made possible by adopting Sony’s proprietary optical system. Because this projector utilizes a high N.A. LCD panel with a microlens and a 265W Ultra high pressure lamp, it can reproduce bright images at 3500 ANSI lumens.

  • Page 9: Location And Function Of Controls

    Location and Function of Controls Front/Left Side Rear/Right Side/Bottom a Handle b Zoom ring Adjusts the picture size. c Control panel For details, see “Control Panel” on page 11. d Connector panel For details, see “Connector Panel” on page 12. e AC IN socket Connects the supplied AC power cord.

  • Page 10: Security Lock

    Although the lamp goes out, the cooling fan keeps running. The power saving mode is canceled when a signal is input or any key is pressed. In power saving mode, any key does not function for the first 60 seconds after the lamp goes out.

  • Page 11: Control Panel

    Control Panel MENU ENTER RESET VOLUME INPUT (on/standby) key Turns on and off the projector when the projector is in standby mode. The ON/ STANDBY indicator lights in green when the power is turned on. When turning off the power, press the I / 1 key twice following the message on the screen, or press and hold the key for about one second.

  • Page 12: Connector Panel

    CONTROL S IN/PLUG IN POWER (DC 5V output) jack Connects to the control S out jacks of the Sony equipment. Connects to the CONTROL S OUT jack on the supplied Remote Commander when using it as a wired Remote Commander. In this case,...

  • Page 13: Remote Commander

    j INPUT D connectors • 5BNC input connectors (R/R-Y/P G/Y, B/B-Y/P , SYNC/HD, VD connectors) (BNC type): Connect to a high-resolution computer or VCR where signals are transmitted long distances; for example, when the projector has been hung from the ceiling.
  • Page 14 4 TILT/KEYSTONE key Adjusts the vertical trapezoidal distortion of the image manually. Use the arrow keys (M/m/</,) for adjustment. (Memory Stick) key This function is not provided in this projector. f FREEZE key This key freezes the projected image. Press again to unfreeze the image. g AIR SHOT key This function is not provided in this projector.
  • Page 15 Battery installation Push and slide to open the lid, then install the two size AA (R6) batteries (supplied) with the correct polarity. While pressing the lid, slide it. Be sure to install the battery from the side. Replace the lid. Notes on batteries •...

  • Page 16: Setting Up And Projecting

    Unit: m (ft) Screen size (inches) Minimum Distance (4.9) Maximum Distance (6.2) Note For details on ceiling installation, consult with qualified Sony personnel. Installing the Projector (7.5) (10.0) (12.5) (9.5) (12.5) (15.7) 11.6 (15.0) (19.0) (25.2)

  • Page 17: Connecting The Projector

    Connecting the Projector When you connect the projector, make sure to: • Turn off all equipment before making any connections. • Use the proper cables for each connection. • Insert the cable plugs firmly; loose connections may increase noise and reduce performance of picture signals.

  • Page 18: To Connect A Computer

    To connect a computer When you use a wireless mouse Right side CONTROL REMOTE CONTROL S VIDEO IN NETWORK RS-232C S VIDEO VIDEO (PLUG IN POWER) INPUT A INPUT B AUDIO AUDIO INPUT D OUTPUT R/R-Y/Pn B/B-Y/Ps SYNC/HD AUDIO USB cable (supplied) (Connect the USB cable to use a wireless mouse.) Stereo audio connecting cable (not supplied)

  • Page 19: Connecting With A Vcr

    To connect a Macintosh computer To connect a Macintosh computer equipped with video output connector of a type having two rows of pins, use a commercially available plug adaptor. When you connect a USB capable Macintosh computer using the USB cable to the projector, wireless mouse functions become available.
  • Page 20 To connect to a video GBR/Component equipment Right side INPUT D R/R-Y/Pn B/B-Y/Ps SYNC/HD AUDIO BNC cable (not supplied) a) Use a no-resistance cable. Notes • When you connect the unit to a video GBR output connector, select video GBR or component with the Input-D Signal Sel.

  • Page 21: Selecting The Menu Language

    Selecting the Menu Language You can select one of nine languages for displaying the menu and other on- screen displays. The factory setting is English. COMMAND PJ NETWORK MUTING AUDIO INPUT TILT/KEYSTONE LENS VOLUME MENU/ AIR SHOT FREEZE Plug the AC power cord into a wall outlet. Press the I / Press the MENU key.
  • Page 22 Press the M or m key to select the MENU SETTING menu, then press the , or ENTER key. The selected menu appears. Press the M or m key to select “Language,” then press the , or ENTER key. Press the M or m key to select a language, then press the < or ENTER key.

  • Page 23: Projecting

    Projecting COMMAND PJ NETWORK MUTING AUDIO INPUT TILT/KEYSTONE LENS VOLUME MENU/ AIR SHOT FREEZE Plug the AC power cord into a wall outlet, then connect all equipment. The ON/STANDBY indicator lights in red and the projector goes into standby mode. Press the I / The ON/STANDBY indicator lights in green.
  • Page 24 To input from Video equipment connected to the S VIDEO input connector Smart APA (Auto Pixel Alignment) adjusts the picture of the connected equipment so that it is projected clearly. Notes • If “Auto Input Search” is set to “On”, the projector searches for the signals from the connected equipment and displays the input channel where the input signals are found.
  • Page 25 To adjust the volume The volume can be adjusted in the on-screen menu. See “Volume” in the PICTURE SETTING menu on page 32. To mute the picture Press the PIC MUTING key on the Remote Commander. Press again to restore the picture.
  • Page 26 Note You will not be able to use the projector if you forget your password and the password administrator is not available. Be please aware that using the security lock can prevent valid usage in such cases. Press the MENU key and then, in the INSTALL SETTING menu, turn on the security lock setting.
  • Page 27 Enter the password. Enter the password that was set. Note If you call the customer service center because you have forgotten the password, you will need to be able to verify the projector’s serial number and your identity. (This process may differ in other countries.) Once your identity has been confirmed, we will provide you with the password.

  • Page 28: Effective Tools For Your Presentation

    Effective Tools for Your Presentation To enlarge the image (Digital Zoom function) You can select a point in the image to enlarge. This function works when a signal from a computer is input. Press the D ZOOM + key on the Remote Commander. The digital zoom icon appears the center of the image.

  • Page 29: Adjustments And Settings Using The Menu

    Adjustments and Settings Using the Menu Using the MENU The projector is equipped with an on-screen menu for making various adjustments and settings. The setting items are displayed in a pop-up menu or in a sub menu. If you select an item name followed by dots (...), a sub menu with setting items appear.

  • Page 30: The Picture Setting Menu

    Make the setting or adjustment on an item. • When changing the adjustment level: To increase the number, press the key. To decrease the number, press the m or < key. Press the ENTER key to restore the previous screen. •...
  • Page 31 Adjust Picture... When the video signal is input PICTURE SETTING Video ADJUST PICTURE S t a n d a rd C o n t r a s t : B r i g h t n e s s : C o l o r : H u e : S h a r p n e s s :...

  • Page 32: The Input Setting Menu

    DDE (Dynamic Detail Enhancer) Selects the reproduction format of the input video signals according to the video sources. Off: Plays back the video signal in an interlace format without converting. Progressive: Converts an interlace format video signal to a progressive format. Film: Reproduces the 2-2, 2-3 Pull-Down film sources with smooth picture movement.

  • Page 33: About The Preset Memory No

    “Shift.” Signal Memory No. SIZE Super Mac-2 SGI-1 Macintosh 19" Macintosh 21" Sony News PC-9821 1,280 × 1,024 WS Sunmicro Note When the aspect ratio of input signal is other than 4:3, a part of the screen is displayed in black.

  • Page 34: The Set Setting Menu

    Front: Activates the front detector only. Rear: Activates the rear detector only. Illumination Selects whether the SONY logo on the top of the projector lights when the projector is on. Normally, this setting is “On”. If you want complete darkness or if the illuminated logo...

  • Page 35: The Menu Setting Menu

    The MENU SETTING Menu The MENU SETTING menu is used for changing the settings of the projector. MENU SETTING Input A S t a t u s : L a n g u ag e : E n g l i s h M e nu Po s i t i o n : C e n t e r M e nu C o l o r :...

  • Page 36: The Information Menu

    Lamp Mode Sets the lamp brightness in the projection. High:Illuminates the projected image brightly. Standard:Reduces fan noise and power consumption. The brightness of the projected image will be lower compared with the “High” setting. Direct Power On/Off function If you will be using a circuit breaker to turn the power for the entire system on and off, set the direct power on function to “On”.

  • Page 37: Operation And Administration Using A Network

    Operation and Administration using a Network Accessing the Projector from a Computer You can check the present status of the projector on a computer display and control the projector from a computer. Also, the projector enables the sending of mail that contains messages on the time for replacement of the projector lamp, error occurrences, etc., to mail addresses that have...

  • Page 38: Controlling The Projector From A Computer

    Controlling the Projector from a Computer Click “Control.” You can perform various adjustments and settings of the projector on a computer display. The function of the buttons in the windows are the same as those on the remote control supplied with the projector. The present setting status is indicated If you change the setting using the remote control, click “Refresh”...
  • Page 39 “root” at the factory. It cannot be changed. Notes • When you change the password, input a new password after deleting the password (*****) that was set. • If you forget your password, consult with qualified Sony personnel. Setting Up the Projector...
  • Page 40 Settings for the Mail Report function You can do the following with the Mail Report function. • Periodically report the installation status of the projector, owner information, etc. You can specify the transmission days and times of e-mail messages (Regular report). •...
  • Page 41 Advertisement button, PJ Talk button and SNMP button. These settings are mainly for administrative use. For details, consult with qualified Sony personnel. Note You cannot use the following characters to enter the characters in the text box: “ ' ”, “ " ”, “...

  • Page 42: Maintenance

    Notes • If the lamp breaks, consult with qualified Sony personnel. • Pull out the lamp by holding the handle. If you touch the lamp, you may be burned or injured.
  • Page 43 Insert the new lamp all the way in until it is securely in place. Tighten the screws. Fold up the handle. Notes • Be careful not to touch the glass surface of the lamp. • The power will not turn on if the lamp is not secured properly.

  • Page 44: Cleaning The Air Filter

    Cleaning the Air Filter The air filter should be cleaned every 1500 hours. Remove dust from the outside of the ventilation holes with a vacuum cleaner. 1500 hours are approximate. varies depending on the environment or how the projector is used. When it becomes difficult to remove the dust from the filter with a vacuum cleaner, remove the air filter and wash it.
  • Page 45 • Be sure to attach the air filter cover firmly; the power will not be turned on if it is not closed securely. • The air filter has a face and a reverse side. The side of the filter with the larger filter holes should face the outside.

  • Page 46: Troubleshooting

    Troubleshooting If the projector appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If the problem persists, consult with qualified Sony personnel. Power Symptom Cause and Remedy The power is not turned on. • The power has been turned off and on with the I / 1 key at a short interval.
  • Page 47 Symptom Cause and Remedy “Please check INPUT-D • Setting for Input-D Signal Sel. in the SET SETTING menu is setting.” appears in spite of incorrect. inputting the correct signal c Select Computer, Video GBR or Component for Input-D Signal from INPUT D. On-screen display does not •...

  • Page 48: Messages List

    • The lamp becomes a high temperature. c Wait for 90 seconds to cool down the lamp and turn on the • The electrical system breaks down. c Consult with qualified Sony personnel. The TEMP/FAN indicator • The fan is broken.
  • Page 49 Message Meaning and Remedy Please replace the LAMP. • It is time to replace the lamp. c Replace the lamp. Caution Messages Use the list below to check the meaning of the messages displayed on the screen. Message Meaning and Remedy No Input •...

  • Page 50: Others

    Optical characteristics Projection system 3 LCD panels, 1 lens, projection system LCD panel 0.99-inch TFT SONY LCD panel with micro-lens array 2,359,296 pixels (1,024 × 768 pixels × 3) Lens 1.3 times zoom lens f 37.6 to 48.8 mm/F 1.7 to 2.3...
  • Page 51 10% to 90% Supplied accessories Remote Commander (1) Size AA (R6) batteries (2) HD D-sub 15-pin cable (2.0 m) (1) (1-791-992-31 (SONY)) USB cable A type - B type (1) (1-790-081-31 (SONY)) Lens cap (1) AC power cord (1) Air filter (for replacement) (one...

  • Page 52: Optional Accessories

    88 × 88 × 159 mm (W x H x D) Weight 1000 g Some of the items may not be available in some areas. For details, please consult your nearest Sony office. Pin assignment INPUT A, B connectors RGB input connector (HD D-sub 15- pin, female)
  • Page 53 Input C connector DVI connector (DVI-D, female) T.M.D.S. +5 V Power Data2 – T.M.D.S. Ground Data2 (return for +5 V, HSync, and Vsync) T.M.D.S. Hot Plug Data2/4 Detect Shield T.M.D.S. T.M.D.S. Data4 – Data0 T.M.D.S. T.M.D.S. Data4 Data0 + DDC Clock T.M.D.S.

  • Page 54: Input Setting Menu

    INPUT SETTING menu Item Input signal Video Com- Video or S ponent video (Y/C) Dot Phase – – – H Size – (for (for other than other than a 15 kHz a 15 kHz signal) signal) Shift – (for (for other than other than a 15 kHz...
  • Page 55 Preset signals Memory Preset signal Video 60 Hz Video 50 Hz 15k RGB/Component 60 Hz 15k RGB/Component 50 Hz HDTV 640 × 350 VGA mode 1 VGA VESA 85 Hz 640 × 400 PC-9801 Normal VGA mode 2 VGA VESA 85 Hz 640 ×...
  • Page 56 Memory Preset signal 1,280 × 1,024 SXGA VESA 43 Hz 46.433 SGI-5 SXGA VESA 60 Hz 63.974 SXGA VESA 75 Hz 79.976 SXGA VESA 85 Hz 91.146 1,600 × 1,200 UXGA VESA 60 Hz 75.000 480/60P 480/60P (Double frequency NTSC) 575/50P 575/50P (Double frequency...
  • Page 57 Warning on power connection Use the supplied power cord when you use the projector in your country/ region. Otherwise, use a proper power cord meeting the following specification. The United States, Canada Plug type VM0233 290B Female end VM0089 386A Cord type Rated Voltage &...

  • Page 58: Index

    Index Adjust Signal..33 Adjuster ...10 Adjusting memory of the settings 30 the picture ...25, 30 the picture size/shift ...33 Air filter ...44 APA (Auto Pixel Alignment) key ...11 Auto Input Search ...34 Background ...35 Battery installation ...15 Black Level Adj..31 Brightness ...31 Color ...31 Color System ...34...
  • Page 59 V Keystone ...35 Ventilation holes exhaust ...9 intake ...10 Volume ...32 Wide Mode ...32 Index...
  • Page 60 Sony Corporation...
