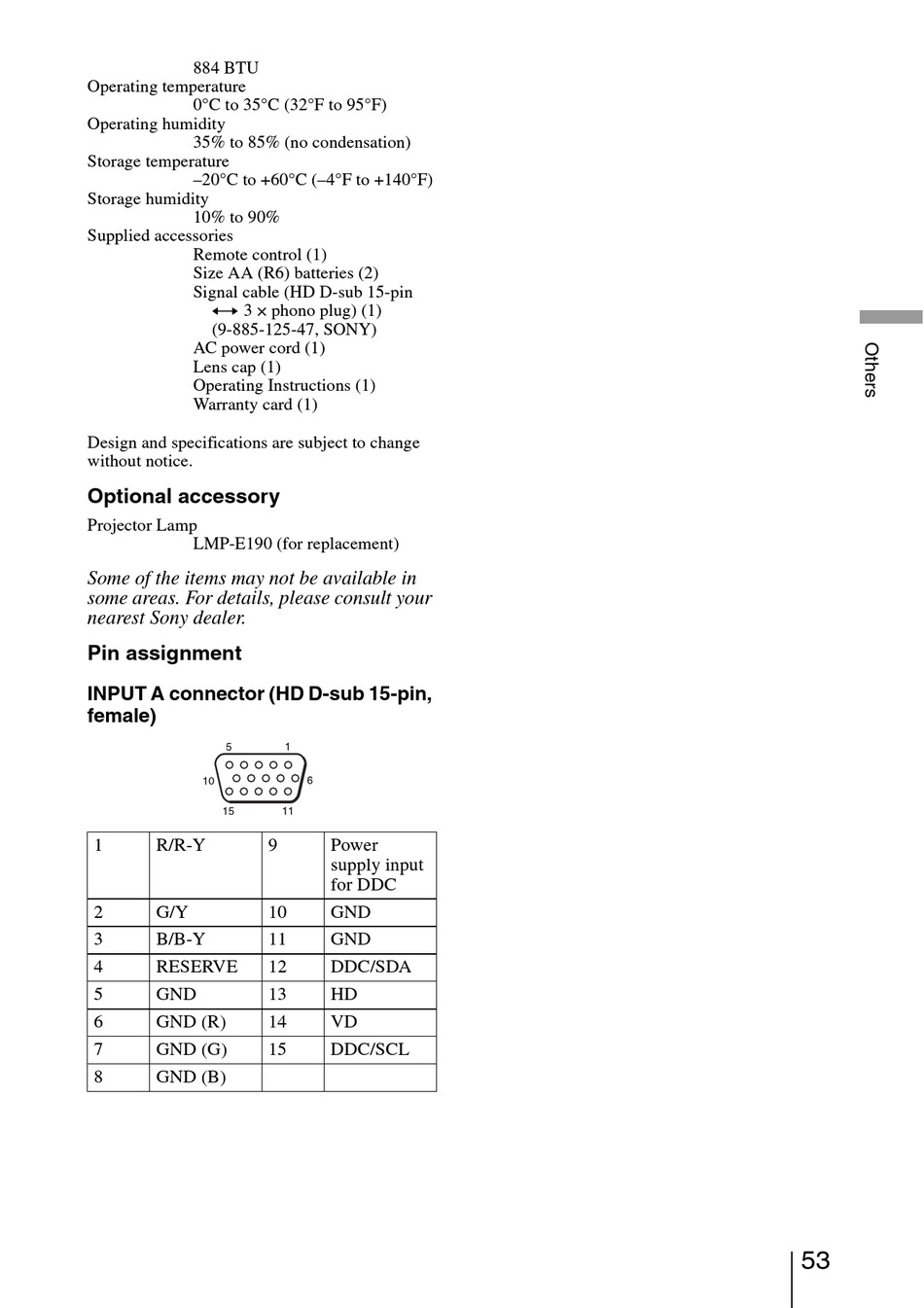

Sony VPL-BW5 Operating Instructions (VPL-BW5) Operating Instructions Manual page 53

884 BTU
Operating temperature
0°C to 35°C (32°F to 95°F)
Operating humidity
35% to 85% (no condensation)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
10% to 90%
Supplied accessories
Remote control (1)
Size AA (R6) batteries (2)
Signal cable (HD D-sub 15-pin
y 3 × phono plug) (1)
(9-885-125-47, SONY)
AC power cord (1)
Lens cap (1)
Operating Instructions (1)
Warranty card (1)
Design and specifications are subject to change
without notice.
Optional accessory
Projector Lamp
LMP-E190 (for replacement)
Some of the items may not be available in
some areas. For details, please consult your
nearest Sony dealer.
Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
1 R/R-Y
2 G/Y
3 B/B-Y
4 RESERVE
5 GND
6 GND (R)
7 GND (G)
8 GND (B)
9 Power
supply input
for DDC
10 GND
11 GND
12 DDC/SDA
13 HD
14 VD
15 DDC/SCL
53
