Notes
• When connecting equipment to the HDMI input of the projector, be sure to use equipment that
have acquired the HDMI logo.
• When connecting an HDMI cable to the projector, make sure the
HDMI input of the projector and the
position.
• If the picture from equipment connected to the projector with an HDMI cable is not clear, check
the settings of the connected equipment.
• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics control) Signal.

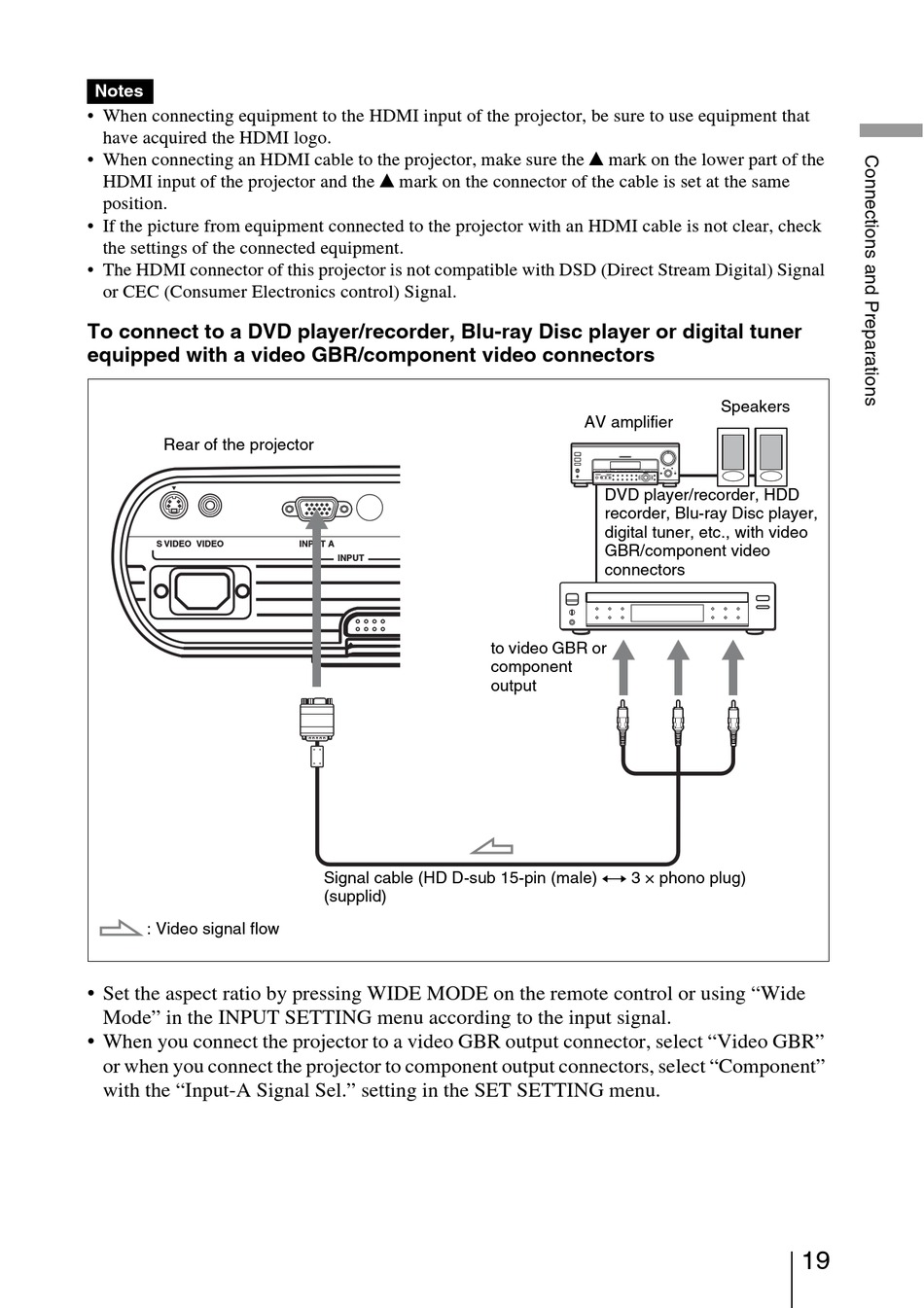

To connect to a DVD player/recorder, Blu-ray Disc player or digital tuner
equipped with a video GBR/component video connectors
Rear of the projector
S VIDEO VIDEO
: Video signal flow
• Set the aspect ratio by pressing WIDE MODE on the remote control or using "Wide
Mode" in the INPUT SETTING menu according to the input signal.
• When you connect the projector to a video GBR output connector, select "Video GBR"
or when you connect the projector to component output connectors, select "Component"
with the "Input-A Signal Sel." setting in the SET SETTING menu.
v
mark on the connector of the cable is set at the same
INPUT A
INPUT
Signal cable (HD D-sub 15-pin (male) y 3 × phono plug)
(supplid)
v
mark on the lower part of the
AV amplifier
DVD player/recorder, HDD
recorder, Blu-ray Disc player,
digital tuner, etc., with video
GBR/component video
connectors
to video GBR or
component
output
Speakers
