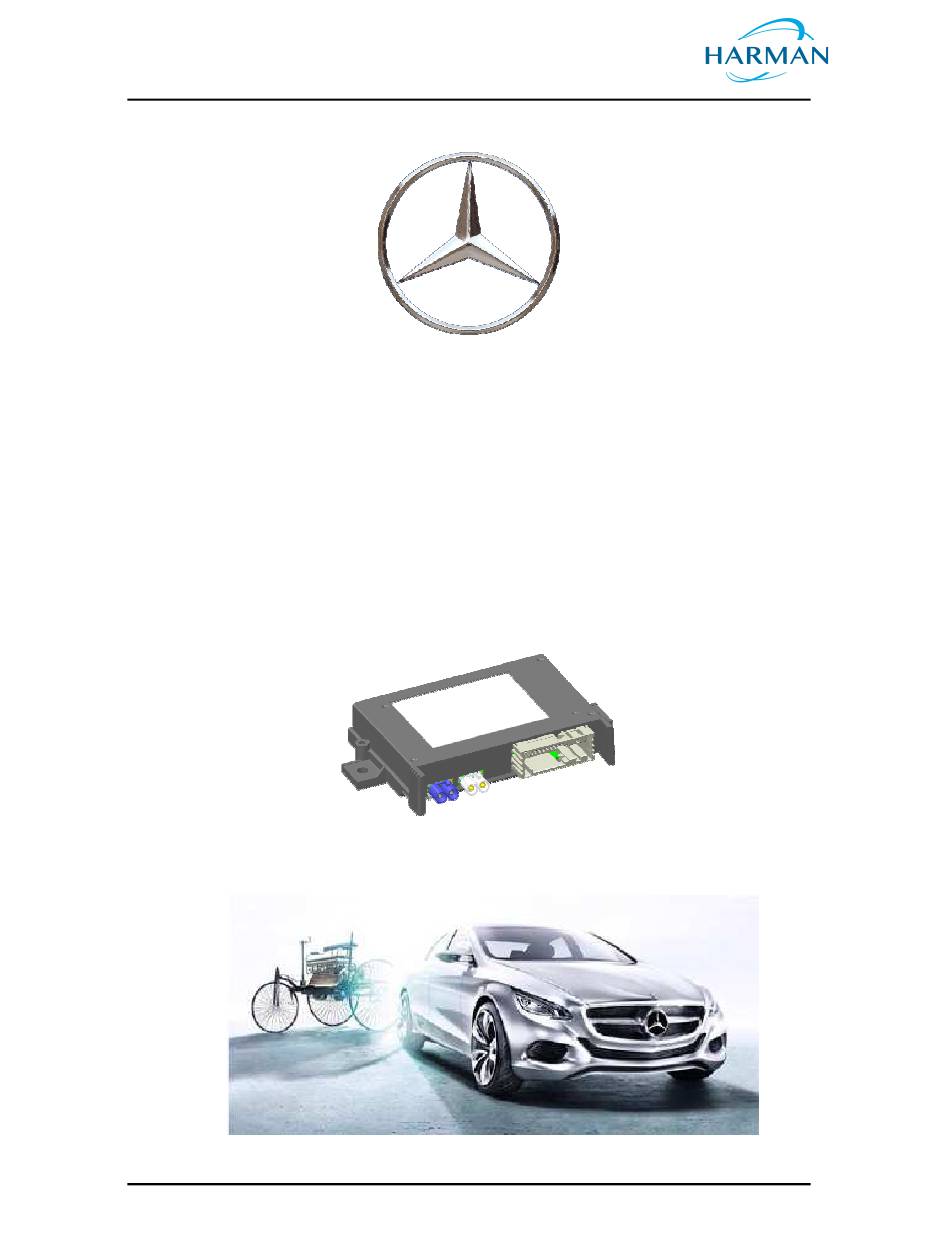

- Page 1 CPM-QE/ RCM HERMES 2.0 (“Hardware for Enhanced Remote-, Mobility- & Emergency Services”) Manual © HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH 2018-05-30 16:03:00 CONFIDENTIAL / ALL RIGHTS RESERVED Regulatory Compliance Management Manual Hermes page 1 of 18...
-
Page 2: Table Of Contents
CPM-QE/ RCM CONTENTS TECHNICAL DESCRIPTION ................3 1.1.1 Disclaimer........................... 3 INTRODUCTION HERMES ................. 4 SYSTEM DESCRIPTION ..................5 3.1.1 System features .......................... 5 3.1.2 Hermes Block Diagram ........................ 7 3.1.3 Audio ............................9 3.1.4 Diagnosis ..........................10 3.1.5 Operating States ........................10 3.1.6 HW-clocking table ........................ -
Page 3: Technical Description
CPM-QE/ RCM 1 Technical Description 1.1.1 Disclaimer The information contained in this document is the proprietary information of Harman Becker Automotive Systems GmbH (HBAS) in the Connected Car Division of HARMAN. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of HBAS, is strictly prohibit. -
Page 4: Introduction Hermes
CPM-QE/ RCM 2 Introduction HERMES The project name HERMES has the meaning “Hardware for Enhanced Remote-, Mobility- & Emergency Services” and thus describes the main features of this device. This unit was designed for automotive usage and contains the following features: GSM, UMTS, LTE , USB, Bluetooth, Wireless LAN. -
Page 5: System Description
CPM-QE/ RCM 3 System Description 3.1.1 System features The HERMES provides the following features: Calls: The different calls can either be triggered via Airbag interface (E-Call only), buttons or Headunit. EU E-Call: • Emergency Call to the PSAP in Europe (112 eCall); •... - Page 6 CPM-QE/ RCM Remote Diagnostics: • Run internal scripts for diagnosis of other components in the car and sent back diagnosis results to the Daimler backend. Remote Door Lock/Unlock: • Lock/Unlock door via customer app and backend. Flash Lights Sound Horn: •...
-
Page 7: Hermes Block Diagram
CPM-QE/ RCM 3.1.2 Hermes Block Diagram The following diagram shows the HERMES unit. The main functionalities of this box are: 1) Providing Network access for different telematic services 2) Providing E-Call (Emergency Call), R-Call (Road Service Call), I-Call (Information Call) HERMES The network access will be realised by connecting a headunit over USB, BT or WLAN to the HERMES Pass4G unit. - Page 8 CPM-QE/ RCM For Europe these predefined numbers are: PSAP test number: +49731184990 Automatic E-Call Primary: +4970317020076 Automatic E-Call Secondary: +4970317020076 Manual E-Call Primary: +4970317020076 Manual E-Call Secondary: +4970317020076 R-Call Primary (V_SC_PHONENUM_RA): +4953170222606 R-Call Secondary (V_SC_PHONENUM_RA2): +4953170222606 I-Call Primary (V_SC_PHONENUM_ICALL): +40721278485 I-Call Secondary (V_SC_PHONENUM_ICALL2): +40215294590 To cover different target markets the HERMES unit provides different NAD-modules.
-
Page 9: Audio
CPM-QE/ RCM 3.1.3 Audio The block diagram below shows the audio path: The HERMES provides the following audio connections: Microphone in (Connection for up to two external microphones (single ended ) ECall Speaker output (Connection for an external eCall speaker 10W (differential)) It is possible to configure the microphone inputs as single ended or differential. -
Page 10: Diagnosis
CPM-QE/ RCM 3.1.4 Diagnosis The Maincontroller of the HERMES is realised by a Renesas SH726B with 216MHz, 2MB Flash and 1,25MB RAM. In the following blockdiagram you can see the diagnosis ports from ant to the SH2 system controller. 3.1.4.1 Hermes 3.1.5 Operating States The following picture shows the possible HERMES operating states –... - Page 11 CPM-QE/ RCM 3.1.7 WLAN Interface Hermes 2.0, 2.1 Hermes 2.0 does not support any Bluetooth. The WLAN solution of Hermes 2.x based on CWM- 07/71 modules manufactured by WNC. CWM-07 and CWM-71 modules provide the same functionality are pin compatible but are base on different SoC. CWM-07 is based on Cypress SoC BCM89342 and CWM-71 on Cypress BCM89359.
-
Page 12: Connectors
CPM-QE/ RCM 3.1.8 Connectors The following picture shows the different Hermes connectors. 3.1.8.1 Hermes LTE2 LTE1 GNSS Systemconnector diversity antenna main antenna The pinning of the Systemconnector is as following: © HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH 2018-05-30 16:03:00 CONFIDENTIAL / ALL RIGHTS RESERVED Regulatory Compliance Management Manual Hermes page 12 of 18... -
Page 13: Pictures Hermes
CPM-QE/ RCM 3.1.9 Pictures Hermes © HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH 2018-05-30 16:03:00 CONFIDENTIAL / ALL RIGHTS RESERVED Regulatory Compliance Management Manual Hermes page 13 of 18... -
Page 14: Declaration Of Conformity (Doc In Short Form)
4.1.1 English: Hereby, Harman Becker Automotive Systems GmbH declares that the radio equipment type HERMES 2.0 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet Address: (*1) 4.1.2 Bulgarian: С... -
Page 15: Estonian
4.1.9 French: Le soussigné, Harman Becker Automotive Systems GmbH, déclare que l'équipement radioélectrique du type HERMES 2.0 est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: (*1) 4.1.10... -
Page 16: Maltese
UE de conformitate este disponibil la următoarea adresă internet: (*1) 4.1.20 Slovak: Harman Becker Automotive Systems GmbH týmto vyhlasuje, že rádiové zariadenie typu HERMES 2.0 je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: (*1) 4.1.21 Slovenian: Harman Becker Automotive Systems GmbH potrjuje, da je tip radijske opreme HERMES 2.0... -
Page 17: Finnish
CPM-QE/ RCM 4.1.22 Finnish: Harman Becker Automotive Systems GmbH vakuuttaa, että radiolaitetyyppi HERMES 2.0 on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: (*1) 4.1.23 Swedish: Härmed försäkrar Harman Becker Automotive Systems GmbH att denna typ av radioutrustning HERMES 2.0 överensstämmer med direktiv 2014/53/EU. -
Page 18: Fcc Compliance Statement, Usa
CPM-QE/ RCM 5 FCC Compliance statement, USA Federal Communications Commission (FCC) Compliance Statement – United States This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) the device must accept any interference received, including interference that may cause undesired operation.
