- Page 1 4-153-309-11(1) Digital Photo Printer Operating Instructions UP-DR80 © 2009 Sony Corporation...
- Page 2 Owner’s Record The model and serial numbers are located at the rear. Record these numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. ____________________ Serial No. ____________________...
-
Page 3: Table Of Contents
Table of Contents Introduction Features ...4 System Configuration ...4 Location and Function of Parts and Controls ...4 Front ...4 Rear ...5 Preparation Supplied Accessories ...6 Carrying the Printer ...6 Connections ...7 USB Port Connection ...7 Installing the Printer Driver ...7 Operation Before Printing ...8 Notes on Handling the Ink Ribbon and Paper ...8... -
Page 4: Introduction

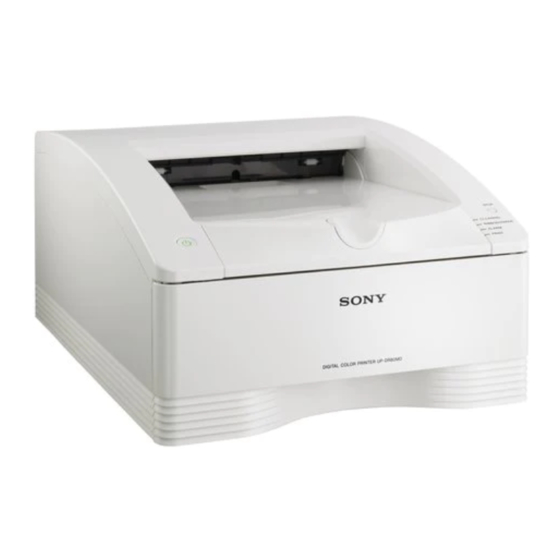

Introduction Features The UP-DR80 Digital Photo Printer is a dye sublimation thermal transfer printer providing high quality and high resolution printing of computer image data in full color (256 gradations process and 16.7 million colors). System Configuration Computer Controls the printer operations. -
Page 5: Rear
G Indicators The indicators are as shown below: A CLEANING indicator Lights while cleaning is in progress. B RIBBON/PAPER indicator Lights when an error involving the ink ribbon or paper occurs. C ALARM indicator Lights when an error such as a paper jam occurs. D PRINT indicator Lights while printing is in progress. -
Page 6: Preparation
Check that nothing is missing from your package. Paper holder Paper holder (pink) (1) (blue) (1) USB cable 1-824-211-41 (SONY) (1) Before Using this Printer (1) CD-ROM (1) Cleaning ribbon (1) Software License Agreement (1) Note Retain the original carton and packing materials in case you have to transport this unit in the future. -
Page 7: Connections
After connecting a USB connecting cable (supplied) to the printer and the computer, connect the power cord. For details about the printer connection, refer to the manuals for the computer or other peripheral devices. USB Port Connection UP-DR80 to ~AC IN connector Power cord to wall outlet Computer... -
Page 8: Operation
Operation Before Printing Once the printer is connected to the computer (page 7), before you can actually begin printing you must load the paper and the ink ribbon as described below. Notes on Handling the Ink Ribbon and Paper Compatible ink ribbon and paper •... -
Page 9: Loading The Ink Ribbon And Paper
Loading the Ink Ribbon and Paper When using the printer for the first time, it is necessary to first load the paper and ink ribbon. Make sure that the printer is not performing an operation, and then pull out the media tray. As shown in the figure below, hook your fingers under the bottom edge of the media tray and pull the tray out, using your other hand to support the media tray... - Page 10 Note Do not turn the selector beyond the range of the paper size marks when setting it. Doing so may result in damage. Insert the paper holders into the paper roll. A pink paper holder and a blue paper holder are provided with the printer.
- Page 11 2 Place the paper roll in the media tray so that the arrow on the label points toward the ink ribbon side. You can load the paper roll in the correct direction by matching the colors of the paper holders inserted into the paper roll with the colors on the media tray.
-
Page 12: Replacing The Ink Ribbon And Paper
Leading edge of paper Leading edge of paper If the ink ribbon becomes torn while still in use Cellophane tape, etc., can be used to repair a torn ink ribbon so that the remainder of the ribbon can be used. Replacing the Ink Ribbon and Paper Once the ink ribbon or paper have been used to print the specified number of sheets, follow the procedure described... -
Page 13: Printing
Printing Before printing • Is the printer connected to a computer? (page 7) • Has the printer driver been installed? (page 7) • Has the media tray been properly loaded? (page 9) 1 ON/STANDBY switch Paper outlet Paper cover Stopper STOP button Press the printer 1 ON/STANDBY switch to turn on the power of the printer. -
Page 14: Removing Scraps
When removing and then reloading a partially used paper roll If the paper roll is not tightly rolled, roll it up more tightly before reloading it. Note When removing a partially used paper roll, be sure to place the media tray on a stable surface before beginning. If you drop the media tray while it contains a paper roll, it could cause personal injury. - Page 15 Insert the empty paper cover horizontally to attach it. Note Be sure to insert the paper cover fully and attach it securely. Removing Scraps...
-
Page 16: Miscellaneous
• If the unit malfunctions or if a foreign body falls into the cabinet, disconnect the power immediately and consult your Sony service facility or your Sony dealer. Installation • Avoid placing the unit in a location subject to: –... -
Page 17: Roller Cleaning
Remove the ink ribbon. For details on how to remove the ink ribbon, see step 4 of “Replacing the Ink Ribbon and Paper” on page 12. Load the cleaning ribbon. For details on how to load the cleaning ribbon, see steps 2 and 3 of “Loading the Ink Ribbon and Paper”... - Page 18 Remove the paper that is ejected after thermal head cleaning is performed. Press and hold the STOP button, and release the button when the CLEANING indicator flashes. About 20 cm of paper is fed out of the printer from the paper outlet.
-
Page 19: Ink Ribbon And Paper
holder after cleaning is performed. In such cases, be sure to replace the paper roll. • If the cleaning sheet is not ejected despite sufficient paper, cut off the paper on which the cleaning sheet is attached from the paper holder, and repeat the procedure from step 2. -
Page 20: Specifications
UNIT OR ITS PRINTING MEDIA, ASSOCIATED SOFTWARE, EXTERNAL STORAGE, OR OTHER EXTERNAL DEVICE. • SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR... -
Page 21: Troubleshooting
If a problem appears, check the following troubleshooting guide first and perform whatever action is necessary to solve the problem. If the problem persists, turn off the printer and consult with your Sony dealer. Symptom Possible causes and remedies The printer does not •... -
Page 22: Explanation Of Indicators
Explanation of Indicators The meanings of the indicators on the printer when they are on or flashing are described below. Indicator Status Possible causes and remedies 1 ON/ The printer is turned on. STANDBY Flashing The printer is entering the standby (green) state. -
Page 23: If A Paper Jam Occurs
If a Paper Jam Occurs While the printer is printing, if the ALARM indicator lights and any of the following messages appears on the computer monitor, it is possible that a paper jam has occurred in the printer: “A paper jam has occurred. Remove the jammed paper.” “A paper jam has occurred. - Page 24 Sony Corporation...
