Electro-Voice PolarChoice Satellite Series Manual

Key Features:

• RF Shield provides superior RFI/GSM shielding.
• Free-standing weighted base for reliable stability.
• Accepts Telex & Electro-Voice bodypack transmitters
(RE-1, RE-2, RE-2Pro, REV, FMR-1000, FMR-500 &
Safe-1000).
• Dual Capsule Design with four polar patterns:
Omnidirectional, Cardioid, Supercardioid, and
Hypercardioid.
• Easy to use mute switch in either latching on/off or
momentary PTT or PTM modes.
• High visibility blue LED clearly displays mic status to the
user.
• Exceptional sound quality with EV's proven PolarChoice
design.
• Consistent microphone voicing across all four patterns.
• Available in three gooseneck lengths: 18", 12" or 5".
• Wireless system sold separately.

General Description:

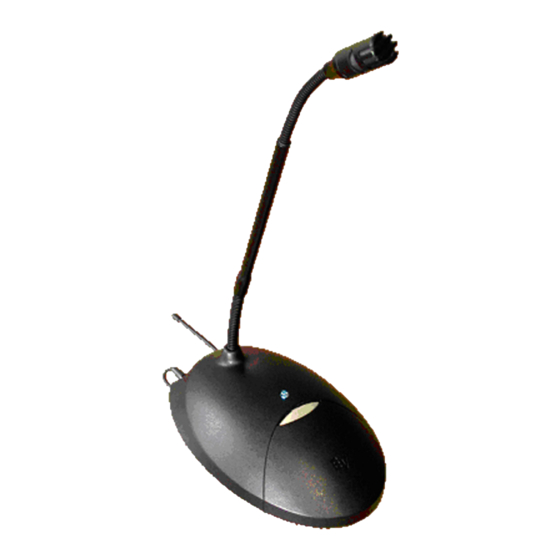

The PolarChoice Satellite is a free-standing gooseneck style
microphone, firmly anchored in place by its elegantly designed
base, and is highly-shielded from RFI/GSM thanks to EV's
exclusive RF Shield technology. This low-profile foundation
hides PolarChoice Satellite's most powerful feature - space
for a wireless transmitter. Turn the base over to reveal the
specially designed compartment for housing a Telex or
Electro-Voice bodypack transmitter. Connect the microphone
to the bodypack, set-up the wireless channel, and place PC
Satellite anywhere an easy-to-use microphone is required. No
longer do you have to cut holes in tables, run long cables, or
compromise the architectural integrity of an installation. With
the Polar Choice Satellite, anything is possible.
The PC-Satellite features an EV PolarChoice multi-pattern
microphone. The multi-pattern versatility of the PolarChoice
microphone makes it a true "problem solver". With one (1)
non-directional and three (3) directional polar patterns
available, the PolarChoice microphone is ideal for virtually any
installation. The PC-Satellite also includes a switchable high
pass filter that greatly reduces any vibration induced noise
pick-up.
PolarChoice Satellite
PC Sat-5/PC Sat-1 2/
Multi-Pattern Wireless
Free-Standing Microphone
Technical Specifications:
Generation Element: Dual condenser, back electret
Frequency Response: 50Hz to 20,000Hz (see chart)
Polar Patterns:
(see chart)
Switches and Controls: Top mounted momentary push-button
Sensitivity: Open Circuit Voltage, 1kHz: 15.8mV/Pascal
Clipping Level (1% THD): >130dB SPL
Equivalent Noise: <32dB SPL "A" weighted (0 dB=20 micropascals)
Dynamic Range: >98dB
Output Impedance, 1 kHz: 1000 Ohms
Power Requirements: 5 VDC, supplied by beltpack
Current Consumption: <1.5mA
Polarity: Pin 2 positive, referenced to pin 3,
Dimensions: Base (all mics):
Accessories Furnished: Windscreen Antenna Guide & Mounting Screw
Optional Accessories: WS-PC1 large windscreen
Color: Nonreflecting black
Net Weight: PC Satellite-5: 602 grams (21.2oz)
Shipping Weight: PC Desktop-5: 1080 grams (38.1oz)
PC Sat-18
Omnidirectional
Cardioid
Supercardioid
Hypercardioid
Push on/off, or PTT/PTM selector
Power up on/off selector
High-pass enable
4-position polar pattern selector
with positive pressure on the diaphragm
Length: 175mm (6.9in.)
Width: 117mm (4.6in.)
Height: 56mm (2.2in.)
Gooseneck Length:
PC Satellite-5: 175mm (6.9in.)
PC Satellite-12: 318mm (12.5in.)
PC Satellite-18: 470mm (18.5in.)
Maximum Head Diameter:
14.6mm (0.58in.)
Gooseneck Diameter:
PC Satellite-5, 12, & 18: 6.4mm (0.25in.)
PC Satellite-12, & 18 (lower section): 7.9mm
(0.31in.)
PC Satellite-12: 614 grams (21.7oz)
PC Satellite-18: 631 grams (22.3oz)
PC Desktop-12: 1102 grams (38.9oz)
PC Desktop-18: 1111 grams (39.2oz)
