- Page 1 For Professional Live Sound...
-
Page 2: Common Features
Critically designed polar patterns and sonic signatures were de- signed to meet this criteria. From small clubs to medium halls to super systems in arenas and at festivals, all PL Series models meet the needs and exceed the expectations of performers and live sound professionals. - Page 3 Should your application be a small club PA, a House of Worship praise band, a full-on festival- sized super system, or anywhere in between, there’s a PL Series vocal mic that is perfect for your style and needs.
- Page 4 The mid-entry level PL24 delivers all-around vocal clarity in any live sound application. With its balanced blend of controlled lows, palatable mid range, and smooth high frequency content, the PL24 is ideal for any vocal style, while its supercardioid polar pattern provides superb isolation and feedback rejection.
- Page 5 Element Type: Dynamic, Neodymium Magnet Structure Frequency Response: 80 Hz - 16,000 Hz Polar Pattern: Supercardioid Sensitivity, Open Circuit Voltage, 1 kHz: 2.2 mV/Pa (-53 dBV) Rated Impedance: 600 ohms Element Type: Dynamic, Neodymium Magnet Structure Frequency Response: 80 Hz - 18,000 Hz Polar Pattern: Supercardioid Sensitivity, Open Circuit Voltage, 1 kHz:...
- Page 6 The vocalist’s vocal microphone. There are singers—you know them—who sing a few songs and add harmonies when necessary, but are far more likely to brag about their gui- tar work than their voice. Then there are the true vocalists, the ones who’ve worked long and hard on their tone: breathiness, raspiness, throatiness...
- Page 7 Element Type: Self-Biased Condenser Frequency Response: 50 Hz - 20,000 Hz Polar Pattern: Cardioid Sensitivity, Open Circuit Voltage, 1 kHz: 3.5 mV/Pa (-49 dBV) Rated Impedance: 200 ohms...

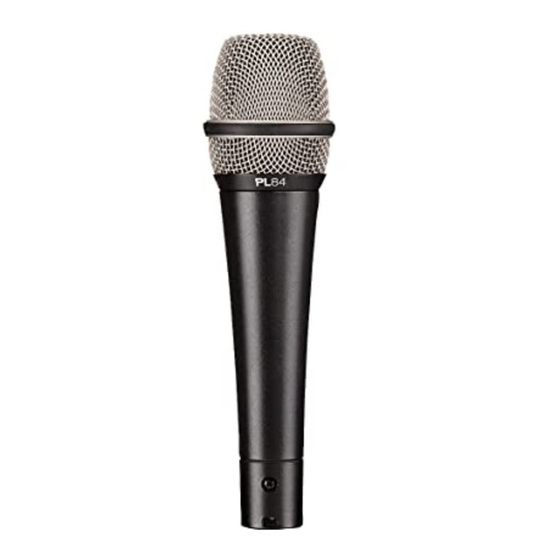

- Page 8 There was a time in the 1980’s when the #1 live performance vocal mic in the world was the Electro-Voice PL80. Revered by the Professional Live sound industry as premium-grade and the best choice for live sound applications, it was designed and built to deliver the “sound of the 80’s”...
- Page 9 Element Type: Dynamic, Neodymium Magnet Structure Frequency Response: 80 Hz - 16,000 Hz Polar Pattern Supercardioid Sensitivity, Open Circuit Voltage, 1 kHz: 2.2 mV/Pa (-53 dBV) Rated Impedance: 600 ohms...
- Page 11 The result? A unique lineup of world-class drum mics and kits that redefine sonic performance, durability, and value. Your drums will sound bet- ter, with more power and natural tones in the system than you’ve ever heard before. Although denoted PL for Professional Live, PL Series drum mics are designed to deliver excellent results in recording studio applications as well.
- Page 12 With its unique design, drum rim clamp, integrated swivel, and supercardioid polar pattern for isolation, the PL35 takes its place as a must-have microphone for outstanding live sound and recording studio performance. Part# PRD000164000 The PL37 small-diaphragm condenser overhead, hi-hat, and instrument microphone crisply captures all the detail and nuance of a percussive performance.
- Page 13 Element Type: Dynamic, Neodymium Magnet Structure Frequency Response: 50 Hz - 16,000 Hz Polar Pattern: Supercardioid Sensitivity, Open Circuit Voltage, 1 kHz: 2.2 mV/Pa (-53 dBV) Rated Impedance 600 ohms Element Type: Self-Biased Condenser Frequency Response: 50 Hz - 16,000 Hz Polar Pattern: Cardioid Sensitivity, Open Circuit Voltage, 1 kHz:...
- Page 14 Inside the front compartment is a tricot-covered dense foam stationary insert with precision cutouts for ten PL Series drum mics, capable of holding 1x PL33, 6x PL35’s, and 3x PL37’s. The rear zippered compartment also provides plenty of storage space for sticks and printed material.
- Page 15 Drum rim clamp for PL35. Conveniently mounts the PL35 to practically any brand steel drum rim. Microphone stand adaptor for all PL Series vocal microphones Microphone stand adaptor for PL 33. (also fits E-V models RE20, RE27 N/D and N/D868) Microphone stand adaptor for PL37 Rubber insulated to minimize mechanical vibrations transferred to microphone element.
- Page 16 PL24/24S PL44 Dynamic, Dynamic, Neodymium Element Type: Neodymium Mag- Magnet Struc- net Structure ture 80 Hz - 16,000 80Hz - Freq Response: 18,000Hz Polar Pattern: Supercardioid Supercardioid Sensitivity, Open Circuit Voltage, 2.2 mV/Pa (-53 dBV) 1 kHz: Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 Rated Impedance: 600 ohms 600 ohms...
