Summary of Contents for Electro-Voice PC Desktop-5
Page 1

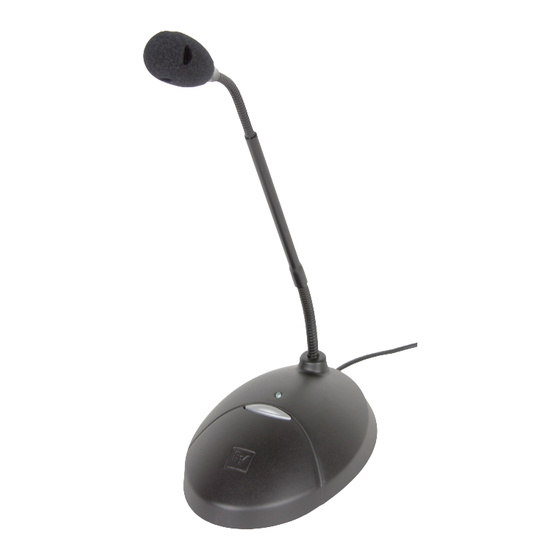

PolarChoice Desktop PC Desktop-5/PC Desktop-12/ PC Desktop-18 Multi-Pattern Desk Microphone with Automatic Mixer Logic Key Features: Multi-pattern versatility. Choose between omni, cardioid, supercardioid or hypercardioid to easily adapt to any situation. Consistent microphone voicing across all four patterns. Switch can be programmed to operate as either latching on/off or momentary push-to-mute/push- to-talk.
Page 2
PolarChoice PC Desktop-5/ PC Desktop-12/ PC Desktop-18 Microphones Microphone Setup: Figure 1: PC Desktop Figure 2: Figure 3: Controls Bottom View PC Board Detail...
Engineering Data Sheet Technical Specifications: EV Multi-Port Windscreen: Dimension Drawings: 6.9" [175mm], PC DESKTOP-5 12.5" [318mm], PC DESKTOP-12 18.5" [470mm], PC DESKTOP-18 9.1" [231mm], PC DESKTOP-5 14.7" [373mm], PC DESKTOP-12 20.7" [525mm], PC DESKTOP-18 6.9" [175mm]...
0-95%. Dimensions shall be 231 mm (9.1 in.) long (PC Desktop-5), 373 mm (14.7 in.) long (PC Desktop-12), and 526 mm (20.7 in.) long (PC Desktop-18) with a maximum head diameter of 14.6 mm (0.58 in). The PC Desktop-5 microphone shall include a 175 mm (6.9 in.) gooseneck.
