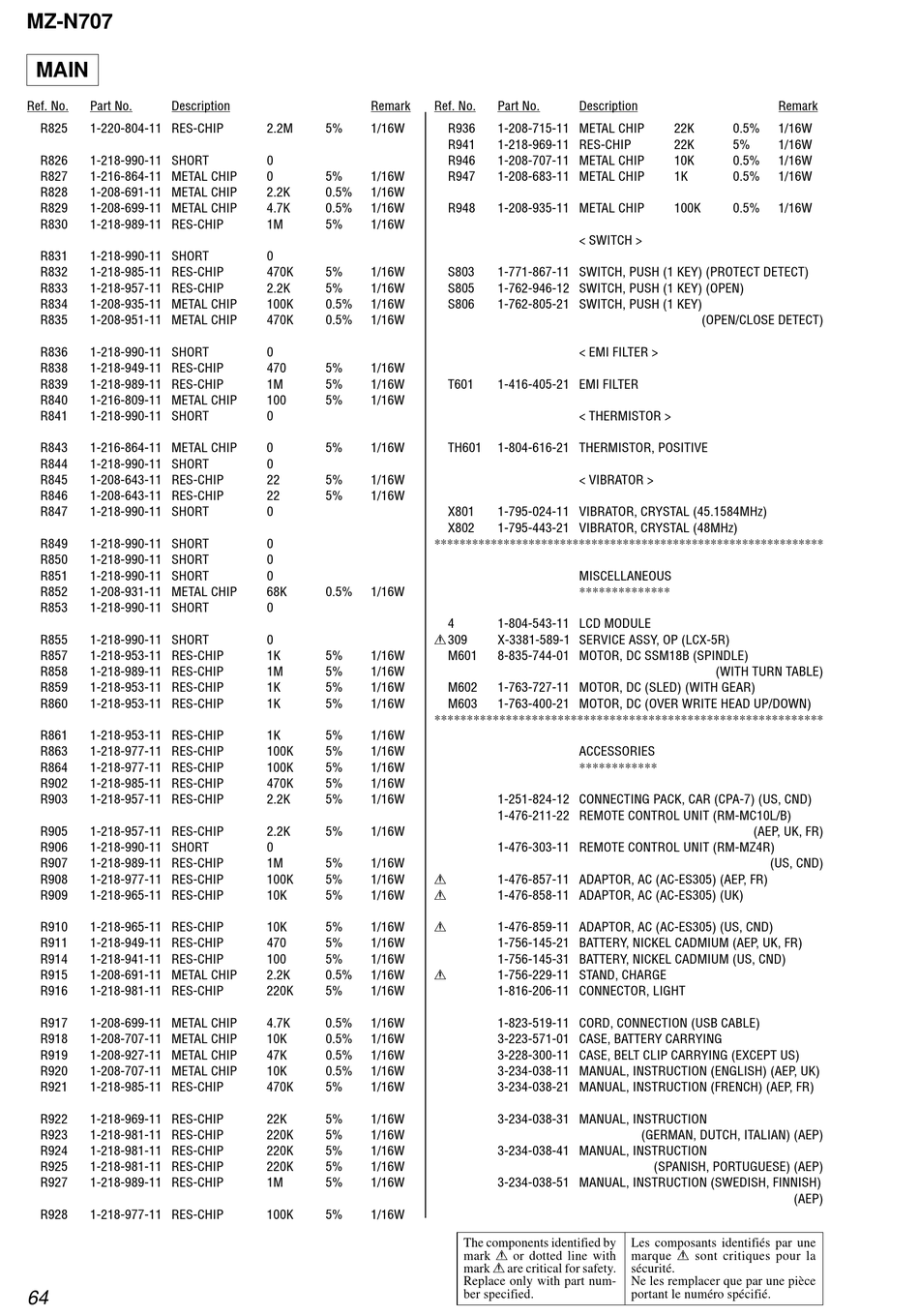

MZ-N707
MAIN
Ref. No.
Part No.
Description
R825
1-220-804-11 RES-CHIP
R826
1-218-990-11 SHORT
R827
1-216-864-11 METAL CHIP
R828
1-208-691-11 METAL CHIP
R829
1-208-699-11 METAL CHIP
R830
1-218-989-11 RES-CHIP
R831
1-218-990-11 SHORT
R832
1-218-985-11 RES-CHIP
R833
1-218-957-11 RES-CHIP
R834
1-208-935-11 METAL CHIP
R835
1-208-951-11 METAL CHIP
R836
1-218-990-11 SHORT
R838
1-218-949-11 RES-CHIP
R839
1-218-989-11 RES-CHIP
R840
1-216-809-11 METAL CHIP
R841
1-218-990-11 SHORT
R843
1-216-864-11 METAL CHIP
R844
1-218-990-11 SHORT
R845
1-208-643-11 RES-CHIP
R846
1-208-643-11 RES-CHIP
R847
1-218-990-11 SHORT
R849
1-218-990-11 SHORT
R850
1-218-990-11 SHORT
R851
1-218-990-11 SHORT
R852
1-208-931-11 METAL CHIP
R853
1-218-990-11 SHORT
R855
1-218-990-11 SHORT
R857
1-218-953-11 RES-CHIP
R858
1-218-989-11 RES-CHIP
R859
1-218-953-11 RES-CHIP
R860
1-218-953-11 RES-CHIP
R861
1-218-953-11 RES-CHIP
R863
1-218-977-11 RES-CHIP
R864
1-218-977-11 RES-CHIP
R902
1-218-985-11 RES-CHIP
R903
1-218-957-11 RES-CHIP
R905
1-218-957-11 RES-CHIP
R906
1-218-990-11 SHORT
R907
1-218-989-11 RES-CHIP
R908
1-218-977-11 RES-CHIP
R909
1-218-965-11 RES-CHIP
R910
1-218-965-11 RES-CHIP
R911
1-218-949-11 RES-CHIP
R914
1-218-941-11 RES-CHIP
R915
1-208-691-11 METAL CHIP
R916
1-218-981-11 RES-CHIP
R917
1-208-699-11 METAL CHIP
R918
1-208-707-11 METAL CHIP
R919
1-208-927-11 METAL CHIP
R920
1-208-707-11 METAL CHIP
R921
1-218-985-11 RES-CHIP
R922
1-218-969-11 RES-CHIP
R923
1-218-981-11 RES-CHIP
R924
1-218-981-11 RES-CHIP
R925
1-218-981-11 RES-CHIP
R927
1-218-989-11 RES-CHIP
R928
1-218-977-11 RES-CHIP
64
Remark
Ref. No.
2.2M
5%
1/16W
0
0
5%
1/16W
2.2K
0.5%
1/16W
4.7K
0.5%
1/16W
1M
5%
1/16W
0
470K
5%
1/16W
2.2K
5%
1/16W
100K
0.5%
1/16W
470K
0.5%
1/16W
0
470
5%
1/16W
1M
5%
1/16W
100
5%
1/16W
0
0
5%
1/16W
0
22
5%
1/16W
22
5%
1/16W
0
0
**************************************************************
0
0
68K
0.5%
1/16W
0
0
0 309
1K
5%
1/16W
1M
5%
1/16W
1K
5%
1/16W
1K
5%
1/16W
************************************************************
1K
5%
1/16W
100K
5%
1/16W
100K
5%
1/16W
470K
5%
1/16W
2.2K
5%
1/16W
2.2K
5%
1/16W
0
1M
5%
1/16W
0
100K
5%
1/16W
10K
5%
1/16W
0
0
10K
5%
1/16W
470
5%
1/16W
100
5%
1/16W
0
2.2K
0.5%
1/16W
220K
5%
1/16W
4.7K
0.5%
1/16W
10K
0.5%
1/16W
47K
0.5%
1/16W
10K
0.5%
1/16W
470K
5%
1/16W
22K
5%
1/16W
220K
5%
1/16W
220K
5%
1/16W
220K
5%
1/16W
1M
5%
1/16W
100K
5%
1/16W
Part No.
Description
R936
1-208-715-11 METAL CHIP
R941
1-218-969-11 RES-CHIP
R946
1-208-707-11 METAL CHIP
R947
1-208-683-11 METAL CHIP
R948
1-208-935-11 METAL CHIP
< SWITCH >
S803
1-771-867-11 SWITCH, PUSH (1 KEY) (PROTECT DETECT)
S805
1-762-946-12 SWITCH, PUSH (1 KEY) (OPEN)
S806
1-762-805-21 SWITCH, PUSH (1 KEY)
< EMI FILTER >
T601
1-416-405-21 EMI FILTER
< THERMISTOR >
TH601
1-804-616-21 THERMISTOR, POSITIVE
< VIBRATOR >
X801
1-795-024-11 VIBRATOR, CRYSTAL (45.1584MHz)
X802
1-795-443-21 VIBRATOR, CRYSTAL (48MHz)
MISCELLANEOUS
**************
4
1-804-543-11 LCD MODULE
X-3381-589-1 SERVICE ASSY, OP (LCX-5R)
M601
8-835-744-01 MOTOR, DC SSM18B (SPINDLE)
M602
1-763-727-11 MOTOR, DC (SLED) (WITH GEAR)
M603
1-763-400-21 MOTOR, DC (OVER WRITE HEAD UP/DOWN)
ACCESSORIES
************
1-251-824-12 CONNECTING PACK, CAR (CPA-7) (US, CND)
1-476-211-22 REMOTE CONTROL UNIT (RM-MC10L/B)
1-476-303-11 REMOTE CONTROL UNIT (RM-MZ4R)
1-476-857-11 ADAPTOR, AC (AC-ES305) (AEP, FR)
1-476-858-11 ADAPTOR, AC (AC-ES305) (UK)
1-476-859-11 ADAPTOR, AC (AC-ES305) (US, CND)
1-756-145-21 BATTERY, NICKEL CADMIUM (AEP, UK, FR)
1-756-145-31 BATTERY, NICKEL CADMIUM (US, CND)
1-756-229-11 STAND, CHARGE
1-816-206-11 CONNECTOR, LIGHT
1-823-519-11 CORD, CONNECTION (USB CABLE)
3-223-571-01 CASE, BATTERY CARRYING
3-228-300-11 CASE, BELT CLIP CARRYING (EXCEPT US)
3-234-038-11 MANUAL, INSTRUCTION (ENGLISH) (AEP, UK)
3-234-038-21 MANUAL, INSTRUCTION (FRENCH) (AEP, FR)
3-234-038-31 MANUAL, INSTRUCTION
3-234-038-41 MANUAL, INSTRUCTION
3-234-038-51 MANUAL, INSTRUCTION (SWEDISH, FINNISH)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Remark
22K
0.5%
1/16W
22K
5%
1/16W
10K
0.5%
1/16W
1K
0.5%
1/16W
100K
0.5%
1/16W
(OPEN/CLOSE DETECT)
(WITH TURN TABLE)
(AEP, UK, FR)
(US, CND)
(GERMAN, DUTCH, ITALIAN) (AEP)
(SPANISH, PORTUGUESE) (AEP)
(AEP)
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
