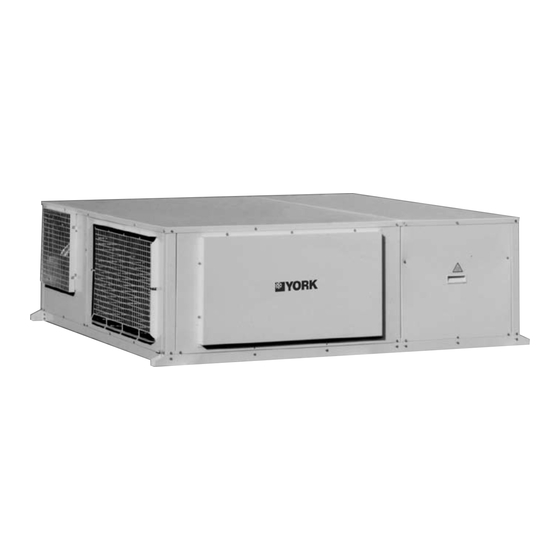

Packaged air conditioning unit
condensed by air model
RTC 07L to 30L
Technical information
����������
ER-0028/1991
� � � � � � � �
���������������������
Johnson Controls Manufacturing España, S.L. is participating in the EUROVENT
Certification Program.
Products are as listed in the EUROVENT Directory of Certified Products, in the
AC 1, AC2, AC3, LCP and FC .
program
The LCP program covers air condensed water chillers and heat pumps of up
to 600 kW.
Ref.: N-27656 1207

Advertisement

Table of Contents
loading

Summary of Contents for York RTC07L

  • Page 1 Packaged air conditioning unit condensed by air model RTC 07L to 30L Ref.: N-27656 1207 Technical information � � � � � � � � ��������������������� Johnson Controls Manufacturing España, S.L. is participating in the EUROVENT Certification Program. Products are as listed in the EUROVENT Directory of Certified Products, in the AC 1, AC2, AC3, LCP and FC .
  • Page 2: Table Of Contents

    Index Page Page General information Duct electric heaters for RTC & RTH07L to 30L - General description - Nomenclature - Technical specifications and general dimensions - General characteristics - Dimensions with packing and weights Technical specifications - Installation - Heater location - Mechanical specifications - Wiring diagram 20 - 21...
  • Page 3: General Information

    Equipped with a contactor and thermal protectors: automatic and manual reset. Thermostat The RTC07L to 30L units include, as standard equipment, the electromechanical DPC-1 thermostat. 21 A To connect the thermostat to the board, 10x0.22mm Technical specifications screened communication cable should be used.
  • Page 4: Physical Data

    Fan operation can be in continuous or automatic mode, off ���� ���� ���� �� � �� � � � � �� �� �� �� �� �� �� �� ���� ���� Physical data Model RTC07L RTC10L RTC15L RTC20L RTC25L RTC30L Amount Type Scroll Compressor Nominal power Power supply V.ph.Hz. 230.1.50 400.3.50...
  • Page 5: Limits Of Use

    Limits of use Voltage limits Air intake temperature to the Air intake temperature to outdoor coil DB the indoor coil Nominal at 230 V Nominal at 400 V Maximum Minimum Maximum Minimum Maximum °C Minimum °C Maximum °C Minimum °C Notes: WB - wet bulb.
  • Page 6: General Dimensions

    1- The solid arrows indicate the standard air intakes and outlets. The dotted arrows are the intakes and outlets that can be obtained at job site. Model RTC07L 480 1102 1055 1150 117 302 136 425 262 72,5 60 300 425 347 597 505 165 120 305 342...
  • Page 7: General Dimensions

    General dimensions mm RTC25L and 30L ������� ������� ��������� ��������� ��� ��� � � � � � � ��� ��� � � ��� � �� � ������� ���������� ����������������� ��������� � ����������� � ������������������ � � ���������������� ��������������� ���������� ���������� ����������...
  • Page 8: Nominal Capacities

    Nominal capacities Unit Cooling capacity W Consumption W RTC07L 7 600 3 100 RTC10L 9 900 4 200 RTC15L 14 600 5 800 RTC20L 19 900 9 000 RTC25L 22 200 10 700 RTC30L 27 000 12 800 Test conditions Outdoor temp.
  • Page 9: Sensible Cooling Capacities

    5 080 5 947 7 247 7 600 2.19 8 436 2 608 3 475 4 775 5 641 2.26 RTC07L 19.5 7 600 3 959 4 826 6 126 6 993 2.38 6 992 4 355 5 221 6 521 6 992 2.50...
  • Page 10: Sensible Cooling Capacities

    Sensible cooling capacities Sensible capacity (W) Compressor Total Dry tempera- Humid tempe- Dry intake air temperature to coil. °C (DB) absorbed capacity ture. outdoor rature. Model power air intake. °C (DB) °C (WB) 23 880 7 359 9 869 13 635 16 150 5.72 19.5...
  • Page 11: Characteristics Of The Indoor/Outdoor Fan On Pulley Models

    0.52 78.4 1 053 0.29 2 055 0.57 58.8 1 204 0.33 78.4 2 219 0.62 39.2 1 355 0.37 RTC07L 58.8 2 360 0.65 24.5 1 490 0.41 RTC07L 2 420 0.67 19.6 1 517 0.42 39.2 2 501 0.69...
  • Page 12: Control Board

    (unit) (K curve) section (unit) (unit) Power Nominal Start Power Nominal Nominal supply intensity intensity supply intensity intensity V.ph.Hz V.ph.Hz RTC07L 230.1.50 10.7 230.150 14.3 RTC10L 400.3.50 230.150 12.5 RTC15L 400.3.50 230.150 11.6 RTC20L 400.3.50 13.5 400.3.50 RTC25L 400.3.50 400.3.50 RTC30L 400.3.50...
  • Page 13: Wiring Diagram

    Wiring diagram, RTC07L, 230.1.50 ��������������� ������������� �������� ����� �������������� ��������������� ������ ����� ������������� ������������ ����� ����� ���������������� ������������� ����� ����� ������������� ����������� ������������ ����������������� ����������� ������������������� ���������������� ����������� ����������� ������������������� ���������������� ���������� ������������������ ����������������...
  • Page 14 Wiring diagram, RTC10L and 15L, 400.3.50 ��������������� ������������� �������� ����� �������������� ��������������� ������ ����� ������������� ������������ ����� ����� ���������������� ������������� ����� ����� ������������� ����������� ������������ ����������������� ����������� ������������������� ���������������� ����������� ����������� ������������������� ���������������� ���������� ������������������ ����������������...
  • Page 15: Wiring Diagram

    Wiring diagram, RTC20L, 25L and 30L, 400.3.50 ��������������� ������������� �������� ����� �������������� ��������������� ������ ����� ������������� ������������ ����� ����� ���������������� ������������� ����� ����� ������������� ����������� ������������ ����������������� ����������� �������������� ���������������� ����������� ����������� �������������� ���������������� ���������� ������������������ ����������������...
  • Page 16: Microswitches Configuration

    Microswitches configuration, failures and incidents...
  • Page 17: Accessories

    Accessories on steatite supports. - Power supply contactor with a 24 VAC. Duct electric heaters for RTC and - Two thermal switches located at the top of the heater. The RTH07L to 30L first, with automatic reset, disconnects the heater when a temperature of 77°C is reached.
  • Page 18: General Characteristics

    General characteristics Automatic Power Front Pressure Power supply Power Consumption Stages switch (1) supply cable furface drop (3) section (2) Model V.ph.Hz RTC and RTH07L 230.1.50 0.12 RTC and RTH07L to 10L 400.3.50 0.12 RTC and RTH07L to 10L 400.3.50 0.12 RTC and RTH15L to 30L 400.3.50...
  • Page 19: Heater Location

    Heater location RTC and RTH07L to 30L ��������������� ���������� ���������������� ���������� �������������� ��������� ������� ������ ��� ���������� ������ �������������������� ���������������������������� ������ ��� ������ ������� ���������� ���������������� ���������� ������������������������ ���������������������������� �������������� ������������������������� ����������...
  • Page 20: Wiring Diagram

    Wiring diagram Heater 5kW, 230.1.50 RTC and RTH07L ����������� ������������������ �� �� �� �� �� �� � �� �� ������ �� ���� ������������������ �� � ��������������������������������� ���������������������������������������� ���� � ������������������������������������������� ���������������� ���������������������� ����������������������������������������� �� � �� ��� ������ ����� � ����...
  • Page 21: Wiring Diagram

    Wiring diagram Heater 5, 10, 15kW, 400.3.50 RTC and RTH07L to 30K ���������������� ����� ��������������������� �� �� �� � � ��� �� �� �� ��� �� �� � ������������������ �� �� �� ����������� � ������ �� �� �� ������������������ �� ��...
  • Page 22: Low Ambient Kit For Rtc-7L, 10L And 15L

    Low Ambient Kit for RTC-7L, 10L and sure there are no leaks. Check correct operation. Set maximum fan output regula- tion (LAK) and disconnect the magneto thermal switch General information of the compressor (F1). Connect power supply to the The condensation control accessory (Low Ambient Kit) is unit with switch Q1.
  • Page 23: Location Of Components

    Location of components ���������������������������� ������������������������� ��������������� ���������������� ���������������� ��� Fig. 1 Connection of hoses at electric box ������������ � ��� ������������������������ ������������������������ ���������� �� �� �� �� � � � ������������� ����������������� ��� ��� ��� �������� ����������������� ��������������� ������������� Fig. 2...
  • Page 24 �� ���� ���� �� �� �� � � � � � � �� �� �� �� �� �� � � � � � � � � � � � � � � �� ��� ��� ��� ��� ��� �� �� ��...
  • Page 25 Wiring diagram for RTC 07L, 10L and 15L ����������������� ���������������� � ��� � � � ��� �� � � � ���� �� ����� ��� � �� �� ������������ ����������������������� ����������� ��������������������� ���������������������� ��������������������������� �� �� � � � �� �� ����...
  • Page 26: General Information

    LAK condensing pressure control for - In standby mode, displays pressure switch 1 value. - In programming mode, it is used to move on to the next RTC-20L, 25L and 30L units parameter and to increase the values of same. General information key: In the summer cycle, this accessory controls the condensing...
  • Page 27: Horizontal Air Discharge Assembly

    ent "Cxx" parameters, and then use to access and of the clamps supplied along with the existing wiring ��� cables. validate the values and the keys to modify these 11.- Insert the pressure switch hose through the hole on the parameters in accordance with the above tables.
  • Page 28: Location Of Components

    Location of components RTC 20L ÷ 30L RTH 20L ÷ 30L ����������� ����������� ����������� ������ ����� �������������� ������ �������������� ��������������������������� ������������������������� Fig. 6 ����������� ����������� � �� �� �� ���� ������ � � � � � � ������ ����������� �������������� ��������...
  • Page 29 �� �� �� �� �� �� �� �� �� ��� ��� ���� ��� ���� ���� � � � � � � � � � �� �� �������������� ������������ ����� ����� ��� ����� ��� Fig. 9 ����������������� ���������������� ����� ����� ����� ����...
  • Page 30: Wiring Diagrams For Rtc-20L, 25L And 30L

    Wiring diagrams for RTC 20L, 25L and 30L ��������������� ����������������� � �� ���� ��� �� �� �� ��� ���� �� �� ����� ����� ����� � ��� �� �� ��� ���� � ����������������� � � ���� � �������������������� ���� �� ������������ �����...
  • Page 32 www.johnsoncontrols.com...
