Summary of Contents for Sony KDF-42E2000

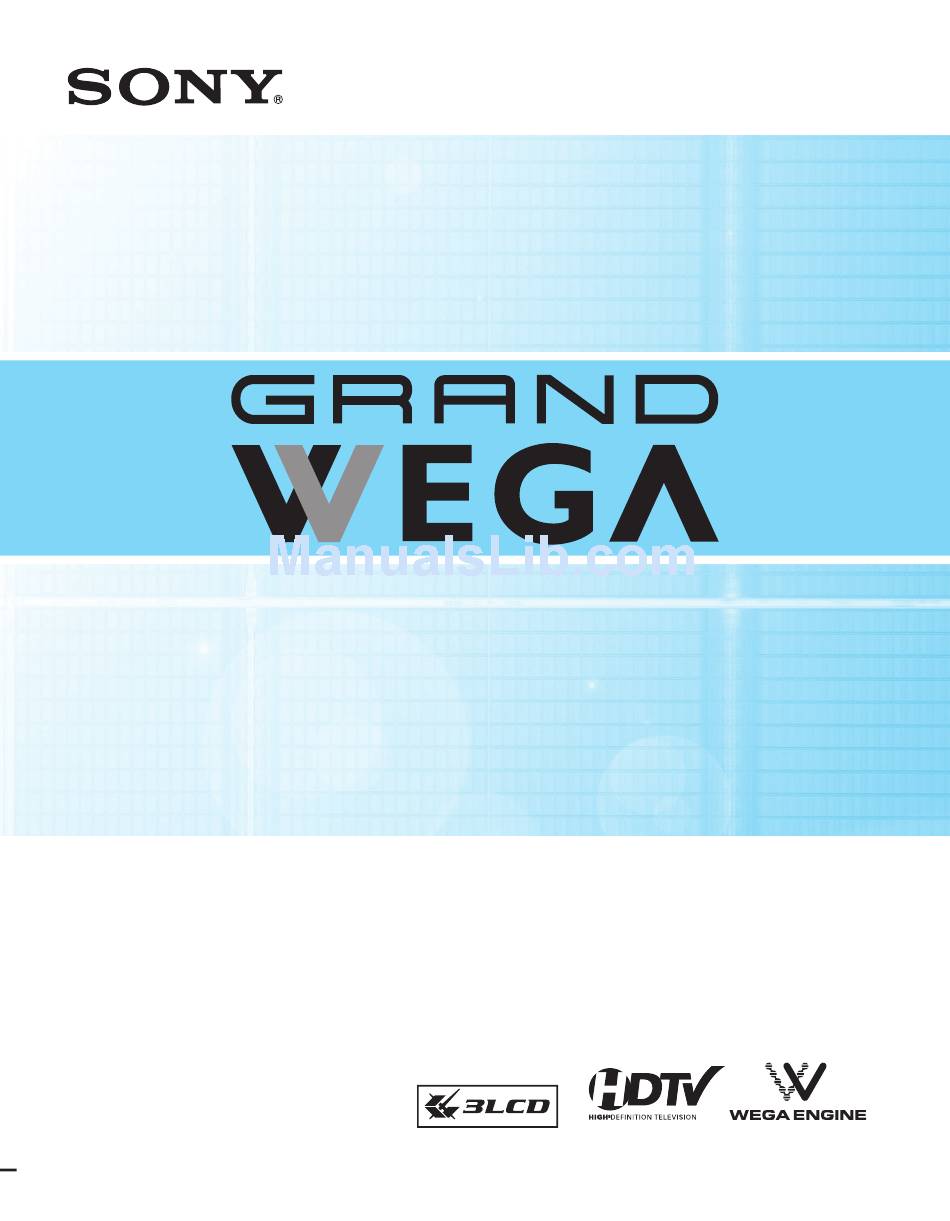

- Page 1 LCD Projection TV HD-TV Operating Instructions KDF-42E2000 KDF-46E2000 KDF-50E2000 KDF-55E2000 © 2006 Sony Corporation 2-681-559-13(1) ™ ™...
- Page 2 8:00 AM - 10:00 PM (EST) Mon - Fri 10:30 AM - 7:15 PM (EST) Sat - Sun Sony will work to resolve your questions more quickly than your retailer or place of purchase. Please Do Not Return the Product to the Store...
- Page 3 See pages 13 and 14 for more information on the installation. CAUTION Use the following Sony appliance(s) only with the following TV STAND. SONY APPLIANCE MODEL NO. KDF-42E2000 KDF-46E2000...
-
Page 4: Trademark Information
U.S.A and other countries. Blu-ray Disc is a trademark. WEGA, Grand WEGA, Steady Sound, Digital Reality Creation and CineMotion are registered trademarks of Sony Corporation. This TV is manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. -
Page 5: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce... -
Page 6: For Safety
Antenna Grounding According to the NEC Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding. Ground clamp Electrical service equipment Ground clamps Power service grounding electrode system (NEC Art NEC: National 250 Part H) Electrical Code Cleaning Clean the rear cover area of the TV regularly. Dust in the rear cover area may cause a problem with the cooling system of the TV set. -
Page 7: Table Of Contents
Contents Introducing the TV Welcome ...9 Package Contents...9 Features...9 Enjoying Your TV...11 Notes on the TV ...11 Screen...11 Indicators ...12 Projection Lamp ...12 Installing the TV ...13 Carrying Your TV ...13 Take Precaution during Installation...13 Preventing the TV from Toppling Over ...14 When Installing Your TV against a Wall...14 Recommended Viewing Area ...15 TV Controls and Connectors ...16... - Page 8 Viewing Blocked Programs ...69 Selecting Custom Rating Options ...69 Accessing the Setup Settings ...71 Selecting Setup Options ...71 Programming Caption Vision (CC)...74 Other Information Overview...75 Contacting Sony ...75 Replacing the Lamp...76 How to Replace the Lamp...76 Troubleshooting ...80 Remote Control...80 Picture...81 Sound...82 Channels...82...
-
Page 9: Introducing The Tv
Introducing the TV Welcome Thank you for purchasing this Sony’s HD LCD projection TV. This manual is for models KDF-42E2000 (US model only), KDF-46E2000, KDF- 50E2000 and KDF-55E2000. Package Contents Along with your new TV, the packing box contains a remote control and two AA (R6) batteries. - Page 10 computer can be connected to this TV with HDMI Input (see page 35). HDMI supports enhanced, or high-definition video, plus two-channel digital audio. ❑ Component Video Inputs: Offers a high-quality video for DVD (480p, 480i) and digital set-top box (1080i, 720p, 480p, 480i) connections. ❑...
-
Page 11: Enjoying Your Tv
Enjoying Your TV To enjoy your TV for years to come and maintain its original picture quality, you should perform periodic maintenance. Notes on the TV To enjoy clear picture ❑ ❑ When not using the TV for a long period of time ❑... -
Page 12: Indicators
❑ When the projection lamp wears out, the screen goes dark. Replace the lamp with a new Sony XL-2400 replacement lamp (not supplied). ❑ After lamp is replaced, please set the “Lamp Replacement” option in the Setup Settings (see page 76 and 73). -
Page 13: Installing The Tv
Installing the TV Carrying Your TV Carrying the TV requires at least two people. Do not hold by the pedestal or the front panel of the TV. Doing so may cause these parts to break off. When moving the TV, place one hand in the hole on the lower portion of the TV while grasping the top with the other hand, as shown in the illustration below. -
Page 14: Preventing The Tv From Toppling Over
As a protective measure, secure the TV as follows. Using the TV stand with support belts ❑ Sony strongly recommends using the TV stand SU-RG11S (for KDF- 42E2000)/SU-RG12S (for KDF-46E2000)/SU-RG12L (for KDF- 50/55E2000) with a support belt designed for your TV. -
Page 15: Recommended Viewing Area
Never install the TV as follows ✍ Do not install the TV near any ventilation, as it may affect the Recommended Your viewing position may affect the picture quality. Viewing Area For the best picture quality, install your TV within the areas shown below. Model KDF-42E2000 KDF-46E2000... -
Page 16: Tv Controls And Connectors
TV Controls and Connectors Front Panel PUSH OPEN MENU TV/VIDEO VOLUME PUSH OPEN TIMER LAMP POWER/STANDBY POWER MENU TV/VIDEO VOLUME CANNEL TIMER CHANNEL To open the panel To open the front panel of your TV, push up the panel door just under the “PUSH OPEN” mark. LAMP POWER POWER... - Page 17 Lights up in green when the TV is turned on. If the LED blinks in red continuously, this may indicate the display unit needs servicing (see contacting Sony information on page 2). When the red LED blinks only three times, the lamp door of the lamp unit or the lamp itself is not securely attached (see page 78).
-
Page 18: Side And Rear Panel
Side and Rear Panel VHF/UHF S VIDEO VIDEO CABLE (MONO) AUDIO HD/DVD IN VIDEO IN (1080i/720p/480p/480i) AUDIO DIGITAL AUDIO (OPTICAL) OUT PCM/DOLBY DIGITAL PUSH OPEN TIMER LAMP POWER/STANDBY POWER MENU TV/VIDEO VOLUME CANNEL AUDIO VAR/FIX SERVICE ONLY... - Page 19 Jack Description 1 HD/DVD IN 2 Connects to your equipment’s component video (YP (1080i/720p/ provides better picture quality than the S VIDEO (4 of rear panel) or the composite video 480p/480i) (6 of rear panel) connections (see page 19).When Auto is selected for the Video 2 (Component) option in the Setup settings, the component video function will be the default stream when present (see page 73).
-
Page 20: Connecting The Tv
Connecting the TV Overview For optimum picture performance, your new LCD Projection TV is capable of receiving high definition programming through its integrated tuner. It is also capable of receiving HDTV content from a cable or satellite box via the video inputs (HDMI and YP To display clear, crisp pictures, your TV must be connected properly. -
Page 21: About Using Hdmi To Dvi Adapter
About Using HDMI If you are connecting equipment with DVI connector with this TV, you will to DVI Adapter need to use an adapter. You can use an HDMI-to-DVI cable or an HDMI adapter (not supplied). Both are available from your local electronics store. When you use the adapter, you will also need to use separate audio cables for sound as DVI connector is for video signals only. -
Page 22: Basic Connections
Basic Connections The way in which you connect your TV will vary, depending on how your home receives a signal (antenna and satellite; cable and cable box) and whether or not you plan to connect a VCR. If You Are Connecting Cable System and/or VHF/UHF Antenna System HD Cable Box/ HD Satellite Box... -
Page 23: Cable System And/Or Vhf/Uhf Antenna System
Cable System Connecting a cable system and/or an external VHF/UHF antenna to the and/or VHF/UHF VHF/UHF input and or CABLE will allow you to enjoy high definition and standard definition digital programming (if available in your area) along Antenna System with the standard definition analog programming ✍... -
Page 24: Hd Cable Box/Hd Satellite Box
HD Cable Box/ HD Satellite Box z The HDMI jack provides both video and audio signals, so it is not necessary to connect an audio cable. You can also enjoy high definition programming by subscribing to high definition cable service or high definition satellite service. For the best possible picture, connect these components to your TV via the HDMI or component video (with audio) input on the back of your TV. -
Page 25: Equipment With Dvi Connection
Equipment with DVI Disconnect all power sources before making any connections. Connection If you are connecting with DVI-HDTV output, you can connect to the TV’s HDMI IN (Video 6) jack by using an HDMI-to-DVI cable or an adapter (both not supplied). Cables are often color-coded to connectors. -
Page 26: Satellite Receiver And Cable/Antenna
Satellite Receiver and Cable/Antenna Coaxial cable ❑ SAT signals are selected by the SAT Box connected to the VIDEO INPUT. TV signals are selected from the signal connected to the CABLE input. Disconnect all power sources before making any connections. Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack. -
Page 27: Equipment With Digital Audio (Optical)
Equipment with Disconnect all power sources before making any connections. Digital Audio You can use the TV's DIGITAL AUDIO (OPTICAL) OUT jack to connect a (Optical) digital audio device that is PCM/Dolby Digital compatible, such as an audio amplifier. Using an optical audio cable, connect the device's OPTICAL IN jack to the TV's DIGITAL AUDIO (OPTICAL) OUT jack. -
Page 28: Setting Up The Channel List
Setting Up the Channel List Using Initial Setup After you finish connecting the TV, you can run the Initial Setup to create a list of available analog and digital channels. The Initial Setup screen appears when you turn on the TV for the first time after hooking it up. If you choose to set up the channels at a later time, select the Auto Program option to scan available channels (see page 66). -
Page 29: Connecting Optional Equipment
Connecting Optional Equipment You can connect a variety of optional equipment to your TV. This section provides some of the individual connections you can make. For multiple connections, please refer to the Quick Setup Guide. If You Are Connecting VCR and Cable VCR and Cable Box DVD Player with Component Video Connectors DVD Player with S VIDEO and Audio Connectors... -
Page 30: Vcr And Cable
VCR and Cable Coaxial cable Cables are often color-coded to connectors. Connect red to red, white to white, etc. Use this hookup if: ❑ You have cable TV that does not require a cable box. Disconnect all power sources before making any connections. Connect the CATV cable to the single (input) jack of the splitter. -
Page 31: Vcr And Cable Box
(pay channels vs. regular cable channels) and you need to use a cable box. Use the TV’s remote control to change channels on your cable box when the signal is scrambled. To program your Sony remote control to operate your cable box, see “Programming the Remote Control” on page 41. - Page 32 Coaxial cable CATV cable Splitter Rear of TV VHF/UHF S VIDEO AUDIO VIDEO CABLE VAR/FIX (MONO) AUDIO HD/DVD IN VIDEO IN (1080i/720p/480p/480i) VIDEO VIDEO AUDIO-L AUDIO-L AUDIO-R AUDIO-R A/V cable A/V cable Coaxial cable Cables are often color-coded to connectors. Connect red to red, white to white, etc.
-
Page 33: Dvd Player With Component Video Connectors
DVD Player with Use this hookup if: ❑ Component Video Connectors Disconnect all power sources before making any connections. ✍ DVD player color-coded to connectors. ✍ Your DVD player has component (YP Use a component video cable to connect the DVD player’s YP to the TV’s YP jacks. -
Page 34: Dvd Player With S Video And Audio Connectors
✍ To watch a DVD, press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the illustration). If you have a non-Sony DVD player and want to set up the TV remote control to operate it, you must program the remote control. See “Programming the Remote Control”... -
Page 35: Personal Computer
Personal Computer If you want to use your TV as your computer monitor, you can connect your PC to the TV. To connect a PC (personal computer) You have a choice of connecting PC to the TV's HDMI 6 Input or HDMI 7 Input (only with HDMI connection). -
Page 36: Camcorder Or Video Game Equipment
Camcorder or Video Game Equipment Rear of TV S VIDEO VIDEO (MONO) AUDIO VIDEO IN You can connect a camcorder or Video Game Equipment to your TV. For easy connection, use VIDEO IN 2 on the left side of the TV. To use the S VIDEO jack instead of the VIDEO jack (yellow), use VIDEO IN 1 on the rear panel of the TV. -
Page 37: Audio Receiver
Audio Receiver For improved sound quality, you may want to play the TV’s audio through your stereo system (see page 63). Disconnect all power sources before making any connections. Using an audio cable, connect the TV’s AUDIO OUT (VAR/FIX) jacks to the audio receiver’s audio LINE IN jacks. -
Page 38: Watching The Tv
Watching the TV Overview The table on the next page describes the buttons on the remote control. Topic Inserting Batteries into the Remote Control Button Descriptions Programming the Remote Control Manufacturer’s Codes Using Other Equipment with Your Remote Control Special Buttons on the Remote Control Inserting Batteries into the Remote Control Insert two size AA (R6) batteries (supplied) by matching the e and E on the batteries to the diagram inside the battery compartment. -
Page 39: Button Descriptions
Button Descriptions SLEEP TV/VIDEO POWER TV POWER 1 TV/VIDEO DVR/VCR SAT/CABLE BD/DVD FUNCTION 2 SLEEP 3 FUNCTION JUMP FREEZE MODE SURROUND SOUND PICTURE WIDE 4 0-9, ENT 6 JUMP MENU PREV REPLAY ADVANCE NEXT 7 ANT PLAY VISUAL SEARCH PAUSE STOP 8 SURROUND 9 SOUND... - Page 40 TV/VIDEO SLEEP POWER TV POWER BD/DVD DVR/VCR SAT/CABLE FUNCTION JUMP FREEZE MODE SURROUND SOUND PICTURE WIDE MENU PREV REPLAY ADVANCE NEXT PLAY VISUAL SEARCH PAUSE STOP MUTING REC PAUSE REC STOP BD/DVD TOP MENU MENU Button Description qd VISUAL To be used only with your connected external equipment with visual search function.
-
Page 41: Programming The Remote Control
Programming the Remote Control The remote control is preset to operate Sony brand video equipment. Sony Equipment BD (Blu-ray Disc)/DVD TV/VIDEO SLEEP POWER TV POWER DVR/VCR SAT/CABLE BD/DVD DVR/VCR SAT/CABLE FUNCTION Follow the steps below to program your TV’s remote control to operate non- Sony video equipment. - Page 42 Sony Dish Network Echostar General Electric Hitachi Hughes Mitsubishi Panasonic Philips RCA/PROSCAN 802, 808 Toshiba 806, 807 Samsung * If an Aiwa VCR does not work even though you enter the code for Aiwa, enter the code for Sony instead.
-
Page 43: Using Other Equipment With Your Remote Control
Using Other Equipment with Your Remote Control To operate other equipment connected to your TV, first turn to page 42 and program the necessary code. For operating video equipment, press TV/VIDEO repeatedly until you see the video input on the screen for your connected equipment. - Page 44 POWER Turn on/off Play Stop Pause X (press again to resume normal playback) Operating a 5.1ch DVD AV System (Sony DAV) To Do This ... Press ... Activate the remote control to operate BD/DVD (FUNCTION) the DVD Turn on/off POWER...
-
Page 45: Operating An Av Receiver
To Do This ... Press ... Pause Search the picture forward or backward M or m during playback Move highlight (cursor) V v B b and select Operating a DVR To Do This ... Press ... Activate the remote control to operate DVR/VCR (FUNCTION) the DVR Turn on/off... -
Page 46: Special Buttons On The Remote Control
Special Buttons on the Remote Control Using the TOOLS Button Using the TOOLS Button in PC Mode This TV comes with convenient features that can be either accessed directly by pressing their buttons on your remote control or pressing the TOOLS button to display most commonly used functions. -
Page 47: Using The Jump Button
Using the JUMP channel and the last channel that was selected. Button Using the FREEZE You can use this feature to write down information such as phone numbers, Button recipes, etc. To cancel again. button allows you to jump back and forth between the current JUMP JUMP button allows you to temporarily capture a program’s picture. -
Page 48: Using The Guide Button
Using the GUIDE Button Press on the TV's remote control to display the Program Guide. GUIDE The Program Guide lets you review program information if it is available from the broadcaster in the information banner. Channel number, call letters, etc. Information Banner Provide channel Make Way for Ducks! -
Page 49: Using The Wide Button
Using the WIDE Wide screen mode lets you watch 4:3 normal broadcasts in several wide Button screen modes (16:9 aspect ratio). ✍ z When the TV receives a 720p or 1080i signal that is 4:3 aspect ratio picture with a black bar at each side, Full returns the picture to its original size. -
Page 50: Using The Wide Button In Pc Mode
Using the WIDE Button in PC Mode z You can also access the PC Wide Mode settings in the Screen settings. For details, see page z Depending on the signal from your PC, your TV will display black frame around the picture in various width. -
Page 51: Using The Wide Button In Pc Mode Continued
Using the WIDE Button in PC Mode continued Resolution higher than 1152 x 648 WIDE PC Wide Mode : Full 2 PC Wide Mode : Zoom Resolution higher than 1152 x 648 Less than 16:9 PC format 16:9 or more than 16:9 PC format Incoming PC signal This mode is... -
Page 52: Using The Menus
Using the Menus Overview of MENU MENU provides one button access for controlling your TV. It enables you to perform a variety of tasks intuitively with a control panel on the screen rather than a variety of remote control button presses. When you press the External Inputs, Favorites, Cable, Antenna or adjust TV settings. - Page 53 The MENU screen gives you access to the following items: Icon Description The External Inputs feature lets you select equipment that is connected to your TV, such as a DVD player. You can assign a label to your equipment or skip unused inputs conveniently.
-
Page 54: Navigating And Selecting Items
Navigating and Selecting Items Use your remote control to navigate through MENU and the settings. Using External Inputs in MENU Using Favorites in MENU The External Inputs feature lets you view from a selected external input connected to your TV. You can assign a label or skip over unused inputs by selecting Edit Video Labels. -
Page 55: Using Cable In Menu
Using Cable in MENU The Cable feature displays the most recently viewed channel on the cable input. Highlight Cable from the MENU control panel and press ✍ Using Antenna in MENU The Antenna feature displays the most recently viewed channel on the antenna input. -
Page 56: Using Settings In Menu
Using Settings in MENU The Settings feature lets you enter to the settings screen where most of advanced settings and adjustments are performed. See “Overview ” on page Navigating Through Settings The Settings screen provides access to the features: Press Select Highlight the item: Picture, Sound, Screen, Channel, Parental Lock, Setup. -
Page 57: Using The Settings
Using the Settings Overview The Settings give you access to the following features: The on-screen menu color shown in the manual is different from the default setting (translucent) of your TV, see "Menu Color" on page 73. (Depending on the signal tuned, you may see a different Setting options on your screen. - Page 58 Settings Channel Antenna Channel Exit: MENU Favorite Channels Digital Channels Auto Program Show/Hide Channels Label Channels Diagnostics Parental Lock Antenna Parental Lock Exit: MENU Password Setup Antenna Setup Exit: MENU Caption Vision (CC) Info Banner Label Video Inputs Clock/Timers Language English Video 2 (Component) Off Menu Color...
-
Page 59: Accessing The Picture Settings
Accessing the Picture Settings Press MENU... Select Settings... Highlight... Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Picture, press Selecting Picture The Picture settings include the following options: Options Option Picture... - Page 60 Option Description Auto 2: Recommended option for viewing programs High With this option, the screen has maximum level of brightness. It is suitable for TV viewing in a brightly lit room. Medium With this option, the brightness is about the standard level.
- Page 61 Option Description DRC Palette Custom Allows you to customize the level of detail (Reality) and smoothness (Clarity). Press the arrow buttons to highlight Custom then press The DRC palette appears. DRC Palette Press Press the arrow buttons to adjust the position of the marker (z).
-
Page 62: Accessing The Sound Settings
Accessing the Sound Settings Press MENU... Select Settings... Highlight... 4. Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Sound, press Selecting Sound Options z Sound Mode settings are independent of settings in the Treble/Bass options. - Page 63 Option Description Stereo Select for stereo reception when viewing a program broadcast in stereo. Enjoy stereo, bilingual and Auto SAP Select to automatically switch to second audio mono programs when a signal is received. (If no SAP programs signal is present, the TV remains in Stereo mode.) Mono Select for mono reception.
-
Page 64: Accessing The Screen Settings
Accessing the Screen Settings Press MENU... Select Settings... Highlight... 4. Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Screen, press Selecting Screen Options z Wide Mode is unavailable while in Freeze (page 47). - Page 65 Option Auto Wide z If 4:3 Default is set to 4:3 Default anything but Off, the Select the default Wide Mode setting screen mode to changes only for the use for 4:3 current channel. When sources. you change channels (or inputs), Wide Mode is automatically replaced with the 4:3 Default setting.
-
Page 66: Accessing The Channel Settings
Accessing the Channel Settings Press MENU... Select Settings... Highlight... 4. Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Channel, press Selecting Channel Options z Channels that you set to Hidden can only be accessed with the 0-9 buttons. - Page 67 Option Description ✍ If you select to hide or show a major digital channel, all the sub- channels are automatically hidden or shown. To show or hide an individual sub-channel within a digital channel, you must individually select that sub-channel to show or hide. ✍...
-
Page 68: Accessing The Parental Lock Settings
Accessing the Parental Lock Settings Press MENU... Select Settings... Highlight... 4. Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Parental Lock, press The Parental Lock setting allows you to set up the TV to block programs according to their content and rating levels. -
Page 69: Viewing Blocked Programs
Option z The Digital Rating option is only available if digital ratings exist in the broadcasts received by your TV, and if the Country setting is U.S.A.. Unrated z If you select Block, be (available only in U.S.A.) aware that the following programs may be blocked: news, sports, Change Password... - Page 70 Option Description TV Rating Age-Based Options Block programs TV-Y All children. by their rating, TV-Y7 Directed to children age 7 and older. content or both TV-G General audience. TV-PG Parental guidance suggested. TV-14 Parents strongly cautioned. TV-MA Mature audience only. Content-Based Options Fantasy violence.
-
Page 71: Accessing The Setup Settings
Accessing the Setup Settings Press MENU... Select Settings... Highlight... 4. Press to select... To highlight an option and to change settings, press V v B b. Press to confirm the selection. To exit the Setup, press Selecting The Setup settings include the following options: Setup Options Option Caption Vision... - Page 72 Option Description ✍ If you select Skip, your TV skips the selected connection when you press TV/VIDEO. Clock/Timers Select to set the clock and to program your TV to turn on and off at two scheduled viewing times. Once the options are set, TIMER LED lights up in orange.
- Page 73 Option z If you choose to use the Video 2 composite connection (Component) for Video 2 (Component), be sure to select Off to activate for composite use. Menu Color CineMotion Cooling Mode Lamp Replacement Product Information Description Auto Select to switch automatically between the component video jacks , AUDIO L (MONO)/ AUDIO R) and the composite video...
-
Page 74: Programming Caption Vision (Cc)
Programming Caption Vision (CC) If you selected the option under Program you can change the following settings: Option Description Basic Allows you to select analog* closed caption options. CC1, CC2, Displays a printed version of the dialog or sound effects of a program. -
Page 75: Other Information
Optional accessories Index Contacting Sony If, after reading these operating instructions, you have additional questions related to the use of your Sony television, please contact our Customer Information Services Center. Visit Canada Before calling Sony customer support, please write down the model and serial numbers of your TV. -
Page 76: Replacing The Lamp
Lamp maintains its brightness will vary depending upon your usage and environmental conditions. To maintain the quality of your viewing experience, Sony recommends that you replace the Lamp (1) after approximately 8,000 hours of use (the TV will display a message reminding you to replace the lamp);... - Page 77 Remove the outside lamp cover. Remove the lamp door. Turn the knob counterclockwise to OPEN and pull out the cover. Pull out the lamp. Hook a finger through the loop of the lamp handle and pull the handle upwards. Then pull the lamp straight out. ✍...
- Page 78 Put the outside lamp cover back in its place. Select the Lamp Replacement option (MENU > Settings > Setup menu) and follow the on-screen procedure. ✍ Consult your Sony dealer for a Sony XL-2400 replacement lamp. ✍ Take great care when replacing the lamp or plugging in/unplugging the connecting cords.
- Page 79 The used lamp For customers in the United States: This product contains mercury. Disposal of this product may be regulated if sold in the United States. For disposal or recycling information, please contact your local authorities or the Electronics Industry Alliance (http://www.eiae.org).
-
Page 80: Troubleshooting
Troubleshooting If you have additional questions, service needs, or technical assistance related to the use of your Sony TV, please visit our website or call one of the following numbers: http://www.sony.com/TVsupport 1-800-222-SONY(7669) for US 1-877-899-SONY(7669) for Canada Remote Control Problem Possible Remedies ❏... -
Page 81: Picture
If your TV does not turn on and a red light keeps flashing, your TV may need service. Call your local Sony Service Center. Make sure the power cord is plugged in. Press POWER on the front of the TV. -
Page 82: Sound
Sound Problem Possible Remedies ❏ Good picture, no sound ❏ ❏ ❏ ❏ Audio noise ❏ ❏ ❏ Cannot gain enough volume when using a cable box ❏ Sound seems weak or insufficient ❏ Cannot raise the volume on external speakers ❏... -
Page 83: General
If the message still appears after the dust or obstacles are removed, the TV may need servicing. Call your local Sony Service Center. The TV cools down its projection lamp when the power is turned off. It takes up to two minutes for the picture to come back after the TV is turned on again. - Page 84 Problem Possible Remedies ❏ Image left on the screen (image retention) White spot on the screen when If screen is exposed to direct sunlight or strong ambient light, part of the screen may appear white even when TV is power off. This is due to the strong light reflecting off powered off the TV screen and reflections coming behind the screen.
-
Page 85: Pc Input Signal Compatibility Chart
PC Input Signal Compatibility Chart Resolution Signals Horizontal (Dot) SVGA XGA** 1024 1024 1024 WXGA** 1280 1280 1152 *: Corresponding to the VGA signal **: These signals do not support Normal display mode. ***: Coordinated Video Timing. ✍ This TV does not support Sync on Green or Composite Sync. ✍... -
Page 86: Specifications
Specifications Projection System LCD Panel Projection Lens Antenna Lamp Television System Visible Screen Size (Picture measured diagonally) Channel Coverage Number of Inputs/Outputs HDMI IN Video (IN) S Video (IN) Audio (IN) Component Video Input AUDIO (VAR/FIX) OUT RF Inputs Digital Audio Optical Output (PCM/Dolby Digital) Speaker output Power requirement... - Page 87 Dimensions (W/H/D) Mass Supplied Accessories Remote Control AA (R6) Batteries Operating Instructions Quick Setup Guide Warranty Card Product Registration Card Design and specifications are subject to change without notice. Non-metric weights and measures are approximate. Optional accessories: ❑ HDMI cable ❑...
-
Page 88: Index
Index 0-9 buttons 39 4:3 Default 65 5.1 Channel DVD using with remote control 44 A/V Sync 63 Adding channels to the channel list 66 Adjusting audio, Steady Sound Advanced Iris 59 Advanced Settings 61 Alternate Audio 63 ANT button 39 AUDIO (L/R) jacks, described Audio Out 63 AUDIO OUT jack, described 19... - Page 89 MENU 52 MENU button 17, 43 Menu Color 73 Movie Rating 69 MTS 63 MUTING button 40 Noise Reduction 60 Off, turning off the TV 17 On, turning on the TV 17 P, Q Parental Control, described 9 Parental Lock settings 58, 68 Password, changing 69 PC Wide Mode 64 Personal Computer...
- Page 92 8:00 AM - 10:00 PM (EST) Mon - Fri 10:30 AM - 7:15 PM (EST) Sat - Sun Sony will work to resolve your questions more quickly than your retailer or place of purchase. Please Do Not Return the Product to the Store...
