Page 1

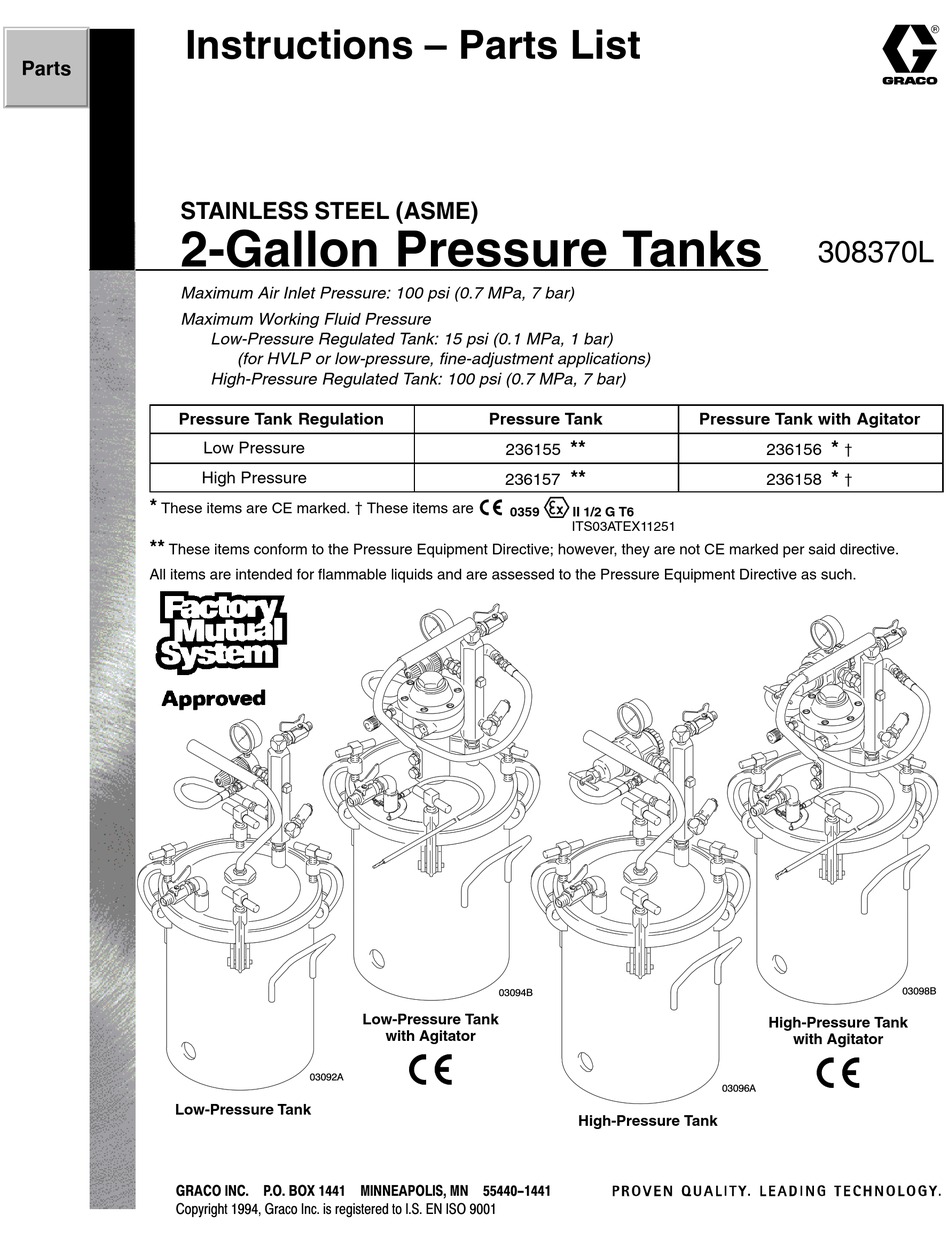

All items are intended for flammable liquids and are assessed to the Pressure Equipment Directive as such. 03098B 03094B Low-Pressure Tank High-Pressure Tank with Agitator with Agitator 03092A 03096A Low-Pressure Tank High-Pressure Tank GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1994, Graco Inc. is registered to I.S. EN ISO 9001...
D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts.
WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 5. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
Reference numbers and letters in parentheses in the text refer to references in the illustrations and the parts drawings. See page 18 for Accessories that are available from Graco. Be sure that all accessories are properly sized to withstand the pressures in the system.
Installation Grounding WARNING Check your local code for detailed grounding FIRE AND EXPLOSION HAZARD instructions for your area and type of equipment. Be Always maintain a minimum of 1 in. sure to ground the pressure tank by connecting one clearance between rotating agitator parts end of a 12 awg (1.5 mm@) minimum ground wire to and container to prevent sparks from the pressure tank and the other end of the wire to a...
Page 6
Installation Recommended Hose Sizes (general purpose) Fluid For runs of: Use: For runs of: Use: 0 to 35 ft (0 to 11 m) 3/8” ID 0 to 50 ft (0 to 15 m) 5/16” ID 35 to 100 ft (11 to 30 m) 1/2” ID 50 to 100 ft (15 to 30 m) 3/8”...
Operation WARNING CAUTION Do not operate the agitator at a high speed for a long PRESSURIZED EQUIPMENT HAZARD period of time. Excessive agitator speed can cause This is a pressurized tank. Always follow the Pres- foaming of fluid (making the fluid unusable), vibra- sure Relief Procedure on page 5 before opening tion, and increased wear on the parts.
If air motor still doesn’t operate properly, contact an 9. Remove the solvent from the system and wipe the authorized Graco service representative. Do not inside of the tank and the rest of the equipment attempt to service it yourself.
Page 10
Parts Drawing Low-Pressure Stainless Steel (ASME) Tank Model 236155 Tank assembly includes tank (24), gasket (25), cover (26), and plug (27). 03091A 308370...
Page 11
Parts List Low-Pressure Stainless Steel (ASME) Tank Model 236155 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 110476 ADAPTER, union, straight swivel; 2 236086 TANK; 2-gal. size; sst, 3/8 npt(m) to 1/4 npsm(f) 117572 GASKET; Santoprener 176184 GRIP, handle COVER, tank;...
Page 12
Parts Drawing Low Pressure Stainless Steel (ASME) Tank w/Agitator Model 236156 See page 9 for agitator parts Tank assembly includes tank (26), gasket (27), cover (28), and plug (29). 03093B 308370...
Page 13
Parts List Low Pressure Stainless Steel (ASME) Tank w/Agitator Model 236156 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 110476 ADAPTER, union, straight swivel; 1 236086 TANK; 2-gal. size; sst 3/8 npt(m) to 1/4 npsm(f) 117572 GASKET; Santoprener 100840 ELBOW, street;...
Page 14
Parts Drawing High-Pressure Stainless Steel (ASME) Tank Model 236157 Tank assembly includes tank (24), gasket (25), cover (26), and plug (27). 03095A 308370...
Page 15
Parts List High-Pressure Stainless Steel (ASME) Tank Model 236157 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 155665 UNION, adapter; 236086 TANK; 2-gal. size; sst 3/8 npt(m) to 3/8 npsm(f) 117572 GASKET; Santoprener 176184 GRIP, handle COVER, tank; sst 100840 ELBOW, street;...
Page 16
Parts Drawing High-Pressure Stainless Steel (ASME) Tank w/Agitator Model 236158 See page 9 for agitator parts Tank assembly includes tank (26), 03097B gasket (27), cover (28), and plug (29). 308370...
Page 17
Parts List High-Pressure Stainless Steel (ASME) Tank w/Agitator Model 236158 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 155665 UNION, adapter; 171937 REGULATOR; 2 to 125 psi 3/8 npt(m) to 3/8 npsm(f) (0.01 to 0.8 MPa, 0.1 to 9 bar) 100840 ELBOW, street;...
Accessories Strainer 202271 Nylon Fluid Supply Hose 300 psi (2.1 MPa, 21 bar) Maximum Working Pressure 300 psi (2.1 MPa, 21 bar) Maximum Working Pressure Install at the tank air inlet to remove dirt and moisture 3/8“ ID; cpld 3/8 npsm(fbe) swivel; neoprene cover from the air supply, or at the tank fluid outlet to remove 205160 15 ft (4.6 m) long particles from the paint which could clog the spray gun...
Dimensions 13.125 in. (333 mm) With agita- tor: 26.0 in. (660 mm) tank shown without cover Without agitator: 25.4 in. (645 mm) 14.5 in. (368 mm) 10.438 in. (265 mm) 9.25 in. (235 mm 03094A 03190A Technical Data Agitator Motor Wetted Parts 1/2 HP, 3000 RPM 304 or 316 stainless steel, Polypropylene, SantopreneR...
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
