S 500 & S 600 Canister Vacuums
Technical Information

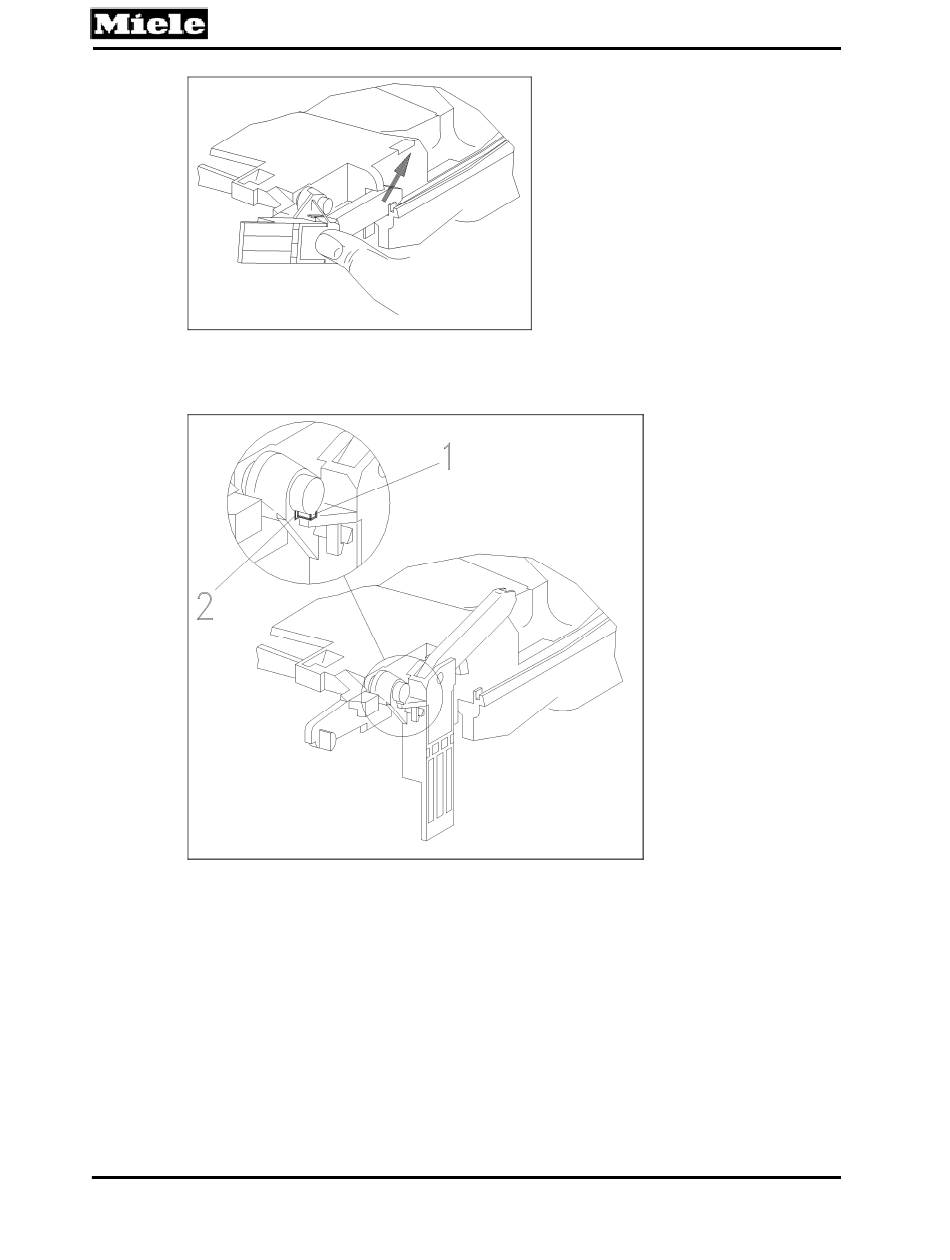

Figure 020-18: Removing the Cover Strip from Its Guide

8. Turn the hinge so that the locking tab (Figure 020-19, Item 1) lines up with
the hinge slot (Figure 020-19, Item 2). Remove the hinge.

Figure 020-19: Hinge Removal

9. Remove the cord guide with cover from the hinge; see Figure 020-20.
38
