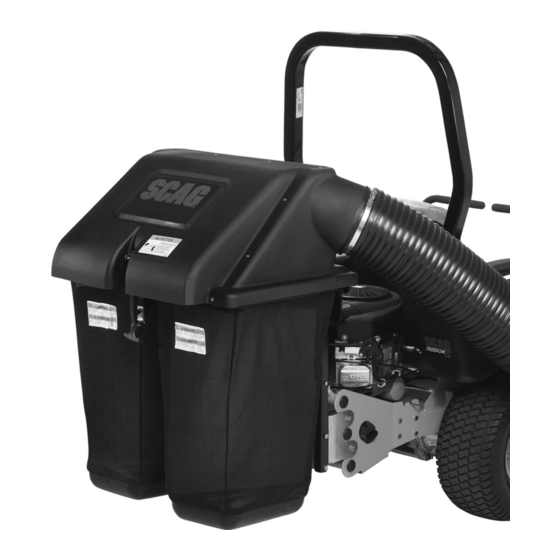

Fabric 2-bag grass catcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

This manual contains the operating instructions and safety information for your
Scag mower accessory. Reading this manual can provide you with assistance
in maintenance and adjustment procedures to keep your mower accessory
performing to maximum efficiency. The specific models that this book covers
are listed on the inside cover. Before operating your machine, please read all
the information enclosed.
© 2017
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
FABRIC 2-BAG

GRASS CATCHER

Model:
GC-2B
PART NO. 03416
PRINTED 1/2017
PRINTED IN USA

Advertisement

Table of Contents
loading

Related Manuals for Scag Power Equipment GC-2B

Summary of Contents for Scag Power Equipment GC-2B

  • Page 1: Grass Catcher

    The specific models that this book covers are listed on the inside cover. Before operating your machine, please read all the information enclosed. © 2017 PART NO. 03416 Scag Power Equipment PRINTED 1/2017 Division of Metalcraft of Mayville, Inc. PRINTED IN USA...
  • Page 2 CONCERN, PRUDENCE, AND PROPER TRAINING OF THE PERSONNEL INVOLVED IN THE OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EQUIPMENT. This manual covers the operating instructions and illustrated parts list for: GC-2B with a serial number of M6300001 to M6399999 Always use the entire serial number listed on the serial number tag when referring to this product.

  • Page 3: General Information

    Section 1 GENERAL INFORMATION 1.1 INTRODUCTION A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power This manual has been prepared to provide the Equipment, Service Department at P.O. Box 152, Mayville, information you need to correctly assemble, operate, and WI 53050.

  • Page 4: Blade Removal

    Section 2 2.1 DISCHARGE CHUTE AND CUTTER 4. Remove the original cutter blades from the cutter deck. To remove the cutter blades from the spindles, BLADE REMOVAL install a 1" open-end wrench onto the flats provided on the spindle shaft. This will allow you to hold - NOTE - the spindle in place and prevent it from rotating as you remove the blade mounting bolt (use optional...
  • Page 5 Section 2 3/8-16 ELASTIC 3/8-16 ELASTIC STOP NUT STOP NUT 3/8 FLATWASHER 3/8 FLATWASHER 5/16-18 x 1” FILLER PLATE 3/8-16 x 1” 3/8-16 x 1” 5/16 FLATWASHER 5/16-18 CENTER MARK AND DRILL 61” FILLER PLATE LOCK NUT USING 11/32” BIT AND DECK SHOWN MOUNTING HOLE NOT USED...

  • Page 6: Assembly Instructions

    Section 2 -NOTE- BACK SIDE BLOWER 52 Blower mounting post shown below for IDLER PULLEY PULLEY reference. BOLT, 3/8-16 x 1-1/4” FLATWASHER LOCKWASHER SPINDLE FRONT SIDE PULLEY IDLER PULLEY FLATWASHER Figure 2-9. Belt Routing ELASTIC STOP 18. Install the new belt covers supplied and secure. See items number 5 and number 14 identified on Figure 2-7.
  • Page 7 Section 2 3. Install the left and right side upright mounting tubes to the grass catcher hood assembly. Secure using (4) 3/8-16 x 2-1/4" hex head bolts and (4) 3/8-16 elastic stop nuts. See Figure 2-11. HOSE 6-1/2” CLAMP ADAPTER Figure 2-12.
  • Page 8 Section 2 2.4 ASSEMBLY INSTRUCTIONS - FRONT 6. Install the hose to the hood assembly and secure with (1) 6-1/2" clamp included with this grass WEIGHT COMPONENTS catcher. See Figure 2-14. 1. Remove the front (2) serrated flange nuts securing -NOTE- the foot plate to the machine.
  • Page 9 Section 2 1/2” FLATWASHER 1/2-13 x 1-1/4” 1/2-13 SERRATED FLANGE NUT 1/2” FLATWASHER 1/2-13 x 1-1/4” WEIGHT ASSEMBLY (1X) Figure 2-16. SPZ Front Weight Bar Installation...
  • Page 10 Section 3 3.1 GRASS CATCHER REMOVAL INSTRUCTIONS Prepare the machine so there is easy and safe access to the work area. Park the machine on a flat, level surface and apply the parking brake. Remove the ignition key and disconnect the positive and negative cables from the battery.
  • Page 11 Section 3 HIGH LIFT SECURE WITH CLEVIS PINS AND RUE COTTER PINS CUTTER BLADE FLATWASHER LOCKWASHER 5/8-11 x 1-1/2" BOLT Figure 3-5. Reinstalling the Discharge Chute 8. Lower the machine. Figure 3-3. Remove High Lift Blades 9. Remove the weight from the weight support bar. 6.
  • Page 12 Section 4 MAINTENANCE 4.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 Procedure Comments (First 10) Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags *Check screen in hopper Remove debris from screen Inspect hose and adapter Inspect fabric bags...

  • Page 13: Illustrated Parts List

    Section 5 ILLUSTRATED PARTS LIST 5.1 SCAG APPROVED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine.
  • Page 14 Section 5 GC-2B HOOD AND DISCHARGE ASSEMBLY...
  • Page 15 Section 5 GC-2B HOOD AND DISCHARGE ASSEMBLY Part No. Description Part No. Description 462932 Hood Assembly (incl. screen & seal) 43546 Bushing, Hopper Pivot 482409 Latch 04001-135 Bolt, Hex Head 3/8-16 x 1-3/4" 04001-08 Bolt, Hex Head 5/16-18 x 3/4"...
  • Page 16 Section 5 GC-2B BAG SUPPORT COMPONENTS...
  • Page 17 Section 5 GC-2B BAG SUPPORT COMPONENTS Ref. No. Part No. Description 04090-02 Pop Rivet, 3/16 x .652 483589 Seal, GC Hood 424753 Retainer, Seal 04021-02 Nut, Center Lock 1/4-20 04021-10 Nut, Elastic Stop 5/16-18 482567 Bag Assembly 451959 Frame Weldment, Bag Support 04001-01 Bolt, Hex Head 1/4-20 x 3/4"...
  • Page 18 Section 5 SPZ 52"/61" BLOWER HOUSING ASSEMBLY...
  • Page 19 Section 5 SPZ 52"/61" BLOWER HOUSING ASSEMBLY Ref. Part No. Description 461778 Blowing Housing Assembly w/Fan 04024-02 Nut, Push-On 04041-07 Flatwasher, 3/8-.391 x .938 x .105 04021-05 Nut, Center Lock 3/8-16 424367 Dust Shield 483209 Pulley, 4" Idler 04066-04 Quick Pin 482300 04030-04 Lockwasher, 3/8"...
  • Page 20 Section 5 SPZ 52"/61" BLOWER MOUNTING COMPONENTS RIGHT SIDE OF 61” CUTTER DECK SHOWN 2017 GC-2B BMC...
  • Page 21 Section 5 SPZ 52"/61" BLOWER MOUNTING COMPONENTS Ref. Part No. Description 04064-15 Clevis Pin, 5/16 x 1-1/2" 04069-03 Pin, Rue Cotter 5/16" 461387 Adapter w/Strap 481625-01 Knob w/Stud 427345 Belt Cover - 52 427344 Belt Cover - 61 04112-06 Nut, 3/4-16 Spriral Lock 485824 Pulley, Double Groove - 52 485816...
  • Page 22 Section 5 GC-2B CUTTER DECK AND FRONT WEIGHT COMPONENTS...
  • Page 23 Section 5 GC-2B CUTTER DECK AND FRONT WEIGHT COMPONENTS Ref. No. Part No. Description 04003-12 Bolt, Carriage 5/16-18 x 3/4" 424745 Baffle, LH - 52" Deck 425267 Baffle, LH - 61" Deck 485172 Pin, Weight Retention 04003-23 Bolt, Carriage 3/8-16 x 1"...
  • Page 24 Section 5 GC DECALS Molded In Decal 482733 Molded In Decal 483573 483392 483392 483391 483391 483393 483393...
  • Page 25 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
