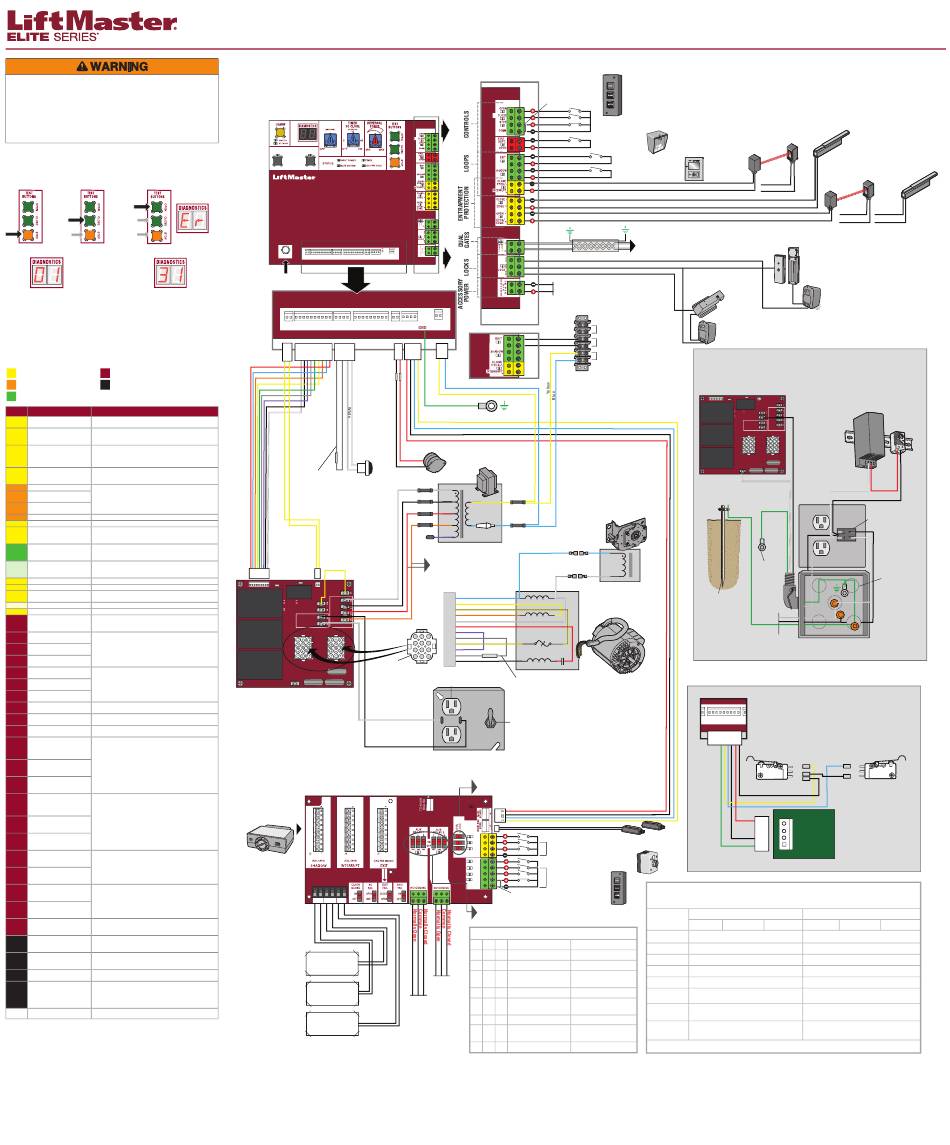

Chamberlain Elite Series Wiring Diagrams

To reduce the risk of INJURY or DEATH:
• DISCONNECT power BEFORE installing or servicing operator.
• Replace ONLY with fuse of same type and rating.
• To be compliant with UL325 and industry safety guidelines, qualified monitored
external entrapment protection devices such as photoelectric sensors or edge
sensors are required to be installed with this operator at each entrapment zone.
Use ONLY LiftMaster approved entrapment protection devices (refer to the
accessory page of manual).
• See manual prior to servicing regarding maintenance and required safety testing.
Diagnostic Codes
TO VIEW THE CODES:
Press and hold ...then press and ...then press and hold OPEN
STOP... hold CLOSE... until "Er" shows.
The operator will show the code sequence number followed by the code number:
A SECOND LATER....
CODE SEQUENCE NUMBER CODE NUMBER
The first number shown is the most recent The second number shown after the code
code (example: "01"). The display will show sequence number is the code itself
the sequence of codes that occurred starting (31-99, example" "31").
with "01" and going up to code "20".
TO SCROLL THROUGH THE SAVED CODES:
Press the OPEN button to cycle to the most recent code ("01"). Press the CLOSE button
to cycle to the oldest code (up to "20").
CODE COLOR KEY:
LiftMaster System External Entrapment Protection
Installed System Inherent Entrapment Protection
Informational
MEANING SOLUTION
Main control board has Disconnect all power, wait 15 seconds, then reconnect power
31
experienced an internal failure. (reboot). If issue continues, replace main control board.
Max-Run-Time Exceeded Error Attempt to run and review for duration and obstructions. Max-
35 Run-Time can be re-measured by saving one or both of the limits
again.
Product ID Error Was the control board just replaced? If so, erase limits, enter limit
setup mode and set limits. If not, disconnect all power, wait 15
36
seconds, then reconnect power before changing product ID
harness.
Product ID Failure Unplug product ID harness then plug back in. Disconnect all
37 power, wait 15 seconds, then reconnect power before replacing
product ID harness.
43 Failure or missing EXIT loop Check loop wiring throughout connection. May be a short in the
loop, or an open connection in the loop (LiftMaster Plug-in Loop
Failure or missing SHADOW
44
Detector only).
loop
Failure or missing INTERRUPT
45
loop
46 Wireless edge battery low Replace batteries in wireless edge.
47 Power board fault Relay fault detected in the power board. Replace the power board.
Run-Distance Error Limits are less than 4 feet apart or longer than what was learned.
50 Check limit positions and proper switch function. Run-distance
can be re-learned by setting the handing again.
Brownout occurred AC/DC board supply dipped below allowable level. Review power
53 supply and wiring. If rebooting, ensure enough time for discharge
of power to force a fresh boot.
Wireless Second Operator Check the second operator for power. If OFF, restore power and
54 Communication Error try to run the system. If powered, deactivate the wireless feature
and then re-learn the second operator.
55 System AC Overvoltage Call utility.
56 System AC Undervoltage Check wiring and wire gauge to operator.
Limit Error - Stuck Switch Check switch for proper operation. Check harness for shorts.
57
Replace if defective.
58 Limit Error - Wrong Switch Check motor wiring.
59 Missing Power Board Check harness for shorts. Check for presence of power board.
Minimum number of monitored Review monitored entrapment protection device connections.
60 entrapment protection devices Slide gate operators require a minimum of two external safety
not installed. devices; one in the close and one in the open direction
CLOSE EYE/INTERRUPT held Check wired input on main board; check for alignment or
61
more than 3 minutes obstruction.
CLOSE EDGE held more than 3
62
minutes
OPEN EYE/EDGE held more than
63
3 minutes
CLOSE EYE/INTERRUPT held Check wired input on expansion board; check for alignment or
64
more than 3 minutes obstruction.
CLOSE EYE/EDGE held more
65
than 3 minutes
OPEN EYE/EDGE held more than
66
3 minutes
Wireless edge triggered more Check wired input for wiring issue or obstruction.
67
than 3 minutes
Wireless edge loss of Check wireless edge inputs.
68
monitoring
Wireless edge triggered IF an obstruction occurred, no action required. If an obstruction
69
did NOT occur, check inputs and wiring.
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an obstruction
triggered, causing reversal, did NOT occur, check alignment, inputs, and wiring on main
70
preventing close, or resetting board.
TTC
CLOSE EDGE triggered, causing
71 reversal, preventing close, or
canceling TTC
OPEN EYE/EDGE triggered,
72 causing reversal or preventing
opening
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an obstruction
triggered, causing reversal, did NOT occur, check alignment, inputs, and wiring on expansion
73
preventing close, or resetting board.
TTC
CLOSE EYE/EDGE triggered,
74 causing reversal and preventing
close or canceling TTC
OPEN EYE/EDGE triggered,
75 causing reversal or preventing
opening
Close input (EYE/EDGE) Check inputs and communication method between operators,
80 communication fault from other either wired bus or radio. Ensure operator is powered. May have
operator to erase the wireless communication and reprogram the two
operators.
Open input (EYE/EDGE)
81 communication fault from other
operator
Close input (EYE/EDGE) Check the connections between the main board and the expansion
82 communication fault (expansion board.
board)
Open input (EYE/EDGE)
83 communication fault (expansion
board)
Non-monitored device detected Non-monitored contact closure devices are not supported. Make
84 on the wireless safety system sure connected devices are monitored. Check edges for proper
orientation and resistive end cap connection.
Force Reversal Look for obstruction, if no obstruction, check that the mechanical
91 assembly is engaged and free to move. Refer to manual for Limit
and Force Adjustment, and Obstruction Test.
RPM / STALL Reversal Check for obstruction. If no obstruction, check the operator cable
93 wiring and that the operator arm is engaged and free to move.
Replace RPM assembly.
AC motor no start condition Motor failed to start. Check for an obstructed gate or binding
95
mechanism. Check start capacitor connections and condition.
Current Sensor Fault A fault was detected on the current sensor. Make sure the current
sensor is connected to the main control board. Check the current
96 sensor harness for an open or short. The operator will need a
power cycle to resume operation after correcting the fault. If the
fault continues, replace the power board.
Normal Operation No action required
99
CONTROL BOARD
BIPART
DELAY
4
2 6
8
OPEN OPEN
LEFT RIGHT
HANDING
MOTOR DRIVE RPM & LIMITS ALARM EXP. 24 VAC IN
ANTENNA CURRENT
SENSOR ID RESET BOARD
ANTENNA
MOTOR DRIVE RPM & LIMITS ALARM EXP.
CURRENT
ID RESET
SENSOR BOARD
2 1 4 3 2 1
2 1 10 9 8 7 6 5 4 3 2 1 4 3 2 1
Red
Blue
Orange
Yellow
Green
Gray
Purple
Black
White
RESET
BUTTON
Red
Black
PRODUCT ID
SL585UL - Blue
SL595UL - Black
Yellow
Yellow
Yellow
1 2 3 4 5 6 7 8 9 1 2
J8
J10
CURRENT
SENSOR SWITCH
(ORANGE)
White
COMM
(WHITE)
Black
SWITCH
(YELLOW) 120V
(BLACK) Red
PWR IN HOT
(BLACK) 208V
(RED)
Orange
(BLACK)
120V 240V
(ORANGE)
OUTLET
(WHITE)
TRANSFORMER
120V 240V
3
J11 J12
12
120V 240V MOTOR
HARNESS
PWR IN
NEUTRAL
(WHITE) J1
POWER BOARD
SINGLE PHASE
White
Black
EXPANSION BOARD
PLUG-IN LOOP DETECTOR
Model LOOPDETLM
SHADOW INTERUPT EXIT
INTERRUPT LOOP
SHADOW LOOP
AUXILIARY
RELAY 1
EXIT LOOP
Jumper
N.C.
FIRE DEPARTMENT
N.F.
COM
N.O.
ACCESSORY POWER
24VOC 0.5A Maximum
24 VAC IN
OPTIONAL ACCESSORY
WIRING
EXIT
ACCESSORY POWER
24VAC 2.2 AMPS MAX
Connect external radios to DC control board
accessory power only.
Blue
Yellow
Blue
Black
Red
ALARM
COM
120
208
24 VAC SOLENOID BRAKE
240
3.15A FUSE
480
TRANSFORMER
Blue
To configure the motor for
208V, swap the orange and
red wires and plug motor
White
into the 240V position.
Blue
12
Yellow RUN 1
11
Yellow/Black
10
Orange
9
White
RUN 2
8
Red
7
Purple
6
1
5
Yellow/Black
4
Purple
3 THERMAL SWITCH
2
10
Black
1
START
HORSE POWER ID
ACCESSORY POWER OUTLET
1/2 HP - Yellow
1 HP - Purple
Attach to 1 1/2 HP - Blue
metal chassis
AC POWER SWITCH
These switches determine if the corresponding
photoelectric sensor or edge sensor will function
for the OPEN or CLOSE cycle.
POWER
WIRELESS EDGE KIT Model LMWEKITU
EYE ONLY
1
PHOTOELECTRIC SENSORS
EYE/EDGE
2
PHOTOELECTRIC SENSORS
EYE/EDGE
3
or EDGE SENSORS
COM
SINGLE BUTTON CONTROL STATION
SBC
OPN
3-BUTTON CONTROL
CLS
STP
STATION
N.C.
COM
Jumper
These switches control how the Auxiliary Relays will function.
SWITCH SETTINGS
RELAY 1 RELAY 2
1 2 3
OFF OFF OFF Relay always off Relay always off
OFF OFF ON Energizes at open limit Energizes at open limit
OFF ON OFF Energizes when not at Energizes when not at
AUXILIARY
close limit close limit
RELAY 2
OFF ON ON Energizes when motor is on Energizes when motor is on
Energizes 3 seconds prior Energizes 3 seconds prior
ON OFF OFF
and during gate motion and during gate motion
ON ON OFF Not used Not used
ON OFF ON Energizes when gate is Energizes when gate is
tampered with tampered with
ON ON ON LEDs will blink cycle count Not used
SINGLE PHASE WIRING DIAGRAM
3-BUTTON CONTROL STATION
INTERRUPT LOOP
or
PHOTOELECTRIC SENSORS
for CLOSE cycle
ACCESS
CONTROL
DEVICE
EXIT LOOP
OR
SHADOW LOOP
Shielded Twisted Pair Cable
(Primary/Secondary link to other
gate operator) Ground the shield of
the cable to the chassis ground of
each operator.
SOLENOID LOCK
(Optional)
OR
(Not Provided)
Power Wiring
POWER BOARD
Single Phase
J8
J10
CURRENT
SENSOR SWITCH
(ORANGE)
COMM
(WHITE)
SWITCH
120V
(YELLOW)
(BLACK)
PWR IN HOT
Yellow (BLACK)
208V
(RED)
120V (BLACK)
240V
OUTLET (ORANGE)
(WHITE)
TRANSFORMER
120V 240V
J11 J12
120V 240V
PWR IN
NEUTRAL
(WHITE) J1
White
Attach to
metal
chassis
Earth Ground Rod
MOTOR
NEUTRAL
HOT
GROUND
INCOMING POWER
CONTROL BOARD
RPM & LIMITS ALA
SET
8 7 6 5 4 3 2 1
9
CLOSE
Limit Switch
Black
Yellow
Red
4
3
Black
2
Green
1
RED/GREEN LIGHT FUNCTIONALITY
Red light wired to AUX RELAY 1.
AUX RELAY 1 SWITCHES
GATE STATE
1 OFF 2 OFF 3
Red light OFF*
CLOSED
OPENING Red light ON/FLASH
Red light OFF
OPEN
CLOSING Red light ON/FLASH
Defined Mid Stop
n/a
Undefined Mid
Red light ON
Stop
Timer more than
Red light OFF
5 seconds
Timer less than
Red light ON/FLASH
5 seconds
* For red light ON when gate is closed, set switch 1 on AUX RELAY 1 to ON
Models SL585UL and SL595UL
EDGE SENSOR
for CLOSE cycle
PHOTOELECTRIC
EDGE SENSOR
SENSORS
for OPEN cycle
OR
MAGLOCK
(Optional)
(Not Provided)
HEATER
(Optional Accessory)
Black
White Red
Black
AC POWER SWITCH
Attach to
metal
chassis
White
Black
Green
JUNCTION BOX
Limit Switch Wiring
OPEN
Limit Switch
Blue
NF NF
NO
NO
Black
C
C
4
3
RPM BOARD
2
1
Green light wired to AUX RELAY 2.
AUX RELAY 2 SWITCHES
OFF 1 ON 2 ON 3 ON
Green light OFF
Green light OFF
Green light ON
Green light OFF
n/a
Green light OFF
Green light ON
Green light OFF
LiftMaster.com
© 2018, LiftMaster
All Rights Reserved
01-39240-6
