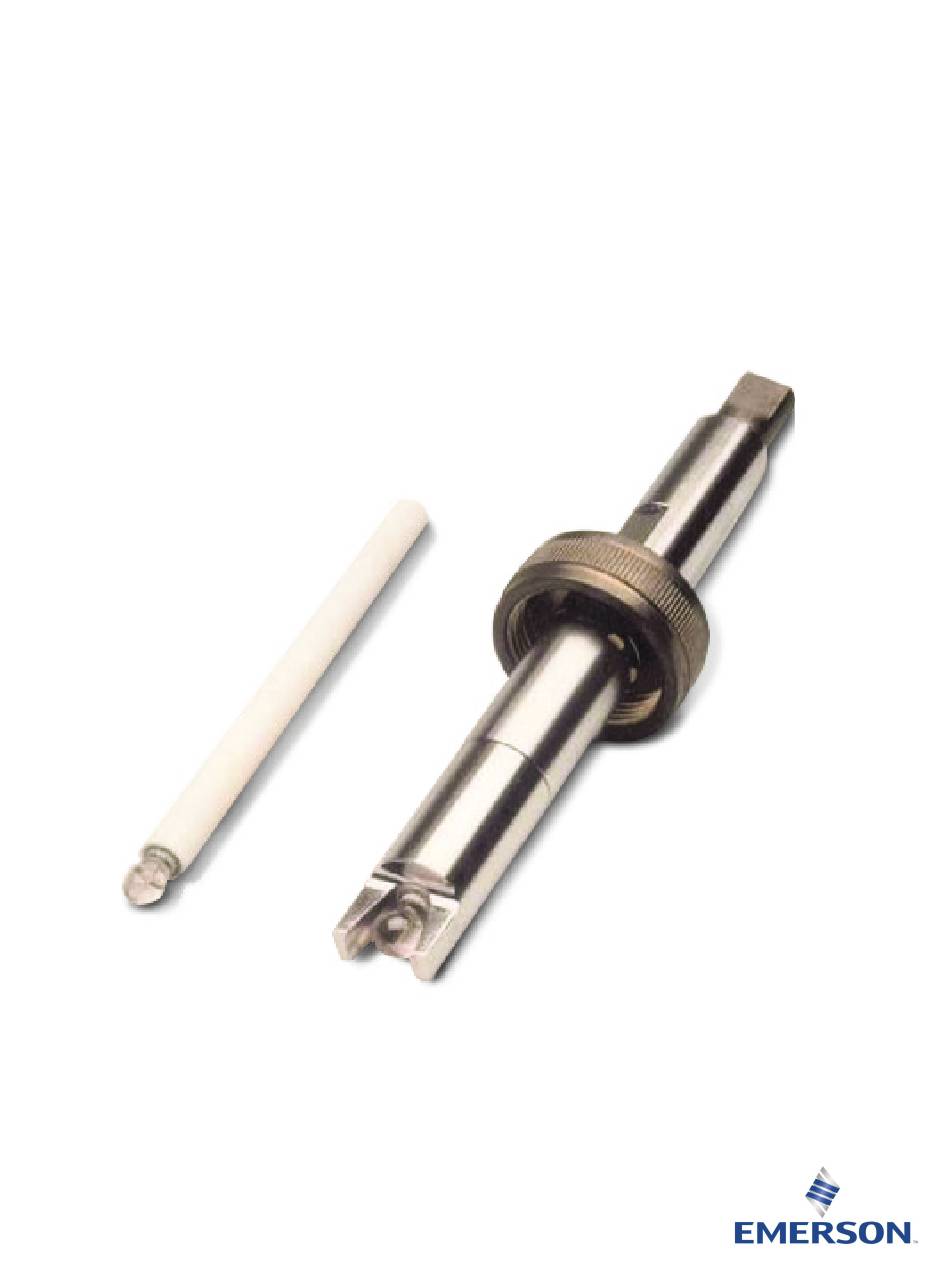

Essential Instructions Read this page before proceeding! Emerson designs, manufactures and tests its products to meet many national and international stan- dards. Because these sensors are sophisticated technical products, you MUST properly install, use, and maintain them to ensure they continue to operate within their normal specifications. The following instructions MUST be adhered to and integrated into your safety program when installing, using, and maintaining Rosemount products.
Specifications Reference Manual February 2019 00809-0100-3328 Product Certifications Please see online certificates for further details. IECEx Ex ia IIC T4 Ga (-20 °C ≤ Ta ≤ +60 °C) Per standards IEC60079-0 : 2011, IEC 60079-11 : 2011 ATEX II 1 G Ex ia IIC T4 Ga (-20˚C ≤ Ta ≤ +60 °C) Per standards EN 60079-0: 2012+A11:2013, EN 60079-11:2012 Intrinsically Safe for use in Class I, II, and III, Division 1, Groups A, B, C, D, E, F, and G;...
Reference Manual Installation 00809-0100-3328 February 2019 Section 2: Installation Unpacking and Inspection Inspect the outside of the carton for any damage. If damage is detected, contact the carrier immediately. Inspect the instrument and hardware. Make sure all items in the packing list are present and in good condition.
Installation Reference Manual February 2019 00809-0100-3328 Installation Procedure (With Holder Assembly) Note: A preamplifier is required for all applications using a Rosemount transmitter. Locate kit containing sensor O-rings, (1) O-ring, spacer and lube package. Lube small O-rings and position, with spacer, on sensor as illustrated in Figure 2-1. Note: Do not allow O-ring grease to come in contact with glass electrode bulb.
Page 11
Reference Manual Installation 00809-0100-3328 February 2019 Figure 2-2: Dimensional Drawing for Rosemount 328A and Optional Mounting Adapter Hard- ware Kit (PN 22924-00) Installation...
Page 12
Installation Reference Manual February 2019 00809-0100-3328 Installation...
Reference Manual Wiring 00809-0100-3328 February 2019 Section 3: Wiring Wiring for Rosemount 328A For other wiring diagrams not shown below, please refer to the Liquid Transmitter Wiring Diagrams. Figure 3-1: Rosemount 328A Sensor Wiring to Rosemount 1056/56 Transmitters Wiring...
Page 14
Wiring Reference Manual February 2019 00809-0100-3328 Figure 3-2: Rosemount 328A Sensor Wiring to Rosemount 1057 Transmitter Wiring...
Page 15
Reference Manual Wiring 00809-0100-3328 February 2019 Figure 3-3: Rosemount 328A Sensor Wiring to Rosemount 1066 Transmitter Figure 3-4: Rosemount 328A Sensor Wiring to Rosemount 5081 Transmitter Wiring...
Page 16
Wiring Reference Manual February 2019 00809-0100-3328 Wiring...
Reference Manual Maintenance 00809-0100-3328 February 2019 Section 4: Maintenance Maintenance Performance of electrode will decrease with age and use. Sluggishness, offsets, noisiness, and erratic reading may indicate that electrode needs cleaning and soaking. To remove oil deposits, clean electrode measuring tip with mild, non-abrasive, detergent. To remove scale deposits, soak electrode’s measuring tip for 20-30 minutes in 10% hydrochloric acid.
Page 18
Maintenance Reference Manual February 2019 00809-0100-3328 Maintenance...
Reference Manual EC Declaration of Conformity 00809-0100-3328 February 2019 EC Declaration of Conformity Note: Please see website for most recent Declaration. EC Declaration of Conformity...
Page 20
EC Declaration of Conformity Reference Manual February 2019 00809-0100-3328 EC Declaration of Conformity...
Page 21
Reference Manual EC Declaration of Conformity 00809-0100-3328 February 2019 EC Declaration of Conformity...
Page 22
China RoHS Table Reference Manual February 2019 00809-0100-3328 China RoHS Table...
