Original Instructions
Installation, Operation
& Maintenance Manual
Saf-T-Vise STV-HP1
Insertable Tool Holders
S-CM-IOM-00506-1 03-19

Advertisement

Table of Contents
loading

Related Manuals for Sentry Saf-T-Vise STV-HP1

Summary of Contents for Sentry Saf-T-Vise STV-HP1

  • Page 1 Original Instructions Installation, Operation & Maintenance Manual Saf-T-Vise STV-HP1 Insertable Tool Holders S-CM-IOM-00506-1 03-19...
  • Page 2 Copyright © 2019 by Sentry Equipment Corp . All rights reserved . All product and company names are property of their respective owners . This document contains proprietary information . No part of this document may be photocopied or reproduced without the prior written consent of Sentry Equipment Corp .

  • Page 3: Table Of Contents

    Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Saf-T-Vise STV-HP1...

  • Page 4: Safety Information

    . Â NOTE Information that requires special emphasis . Â TIP Alternate techniques or clarifying information. SHALL: This word is understood to be mandatory . SHOULD: This word is understood to be advisory . Sentry Equipment Corp...

  • Page 5: General Safety Precautions

    High pressures! This equipment may contain fl uids at very high pressures . Prior to installing, removing or maintaining this equipment, ensure that the equipment is isolated from all connecting piping, the equipment is depressurized, the contents have been drained, and the equipment is cool . Saf-T-Vise STV-HP1...

  • Page 6: General Description

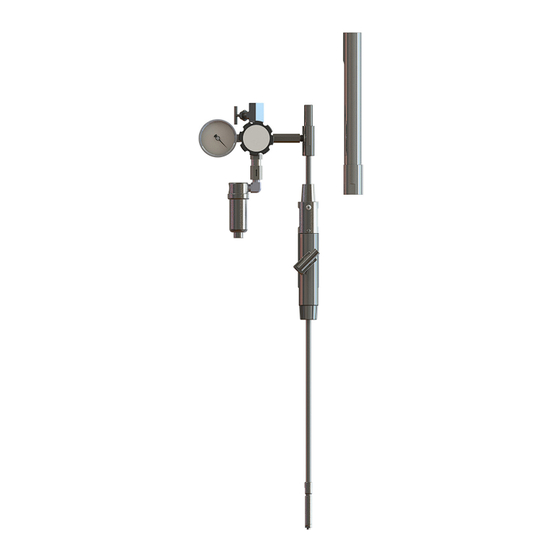

    General Description The Sentry® Saf-T-Vise SVT-HP1 insertable tool holders are Indicator multi-functional tools that can be equipped to monitor button pipeline corrosion, inject chemical into the process, or sample the pipeline medium . The holders are engineered Safety cap to specific site applications with a variety of materials and connection styles and sizes .

  • Page 7: Maintenance

    5. Slide the rod/shaft to the fully retracted position and repeat the steps above to clean the remaining rod/shaft . 6. When the rod/shaft is thoroughly clean, wipe the rod/shaft with Molykote 55 lubricant or other fine viscosity lubricant . Saf-T-Vise STV-HP1...

  • Page 8: Changing A Rod/Shaft And Replacing A Seal

    3. Replace the seal . a. With the upper body removed, use a pick or small screwdriver to gently pick out the old seal . b. Clean the seal body of the holder with a clean rag . Sentry Equipment Corp...
  • Page 9 . Be careful not to lose collet . Â NOTE Each insertion collet assembly is unique to each retrieval tool . Be sure to keep the removed assembly with the specific tool retractor . Saf-T-Vise STV-HP1...

  • Page 10: Changing A Coupon/Checking Probe End

    2. Remove old coupon or inspect the rod/shaft as needed . 3. Clean the rod/probe shaft . 4. If using a coupon holder, attach the new coupon . 5. Reinstall the tool holder into the pipeline by following instructions for specific insertion tool . Sentry Equipment Corp...

  • Page 11: Troubleshooting

    . Bleeder Valve Leaks If the holder leaks from the bleeder valve outlet or bleeder valve stem, the bleeder valve is damaged and should be replaced . Contact the factory to order a replacement valve . Saf-T-Vise STV-HP1...

  • Page 12: Locking Collet

    . Standard Warranty Sentry Equipment Corp (“Seller”) warrants products manufactured by it and supplied hereunder (“Products”) to be free from defects in workmanship and, to the extent materials are selected by Seller, to be free from defects in materials, in...

  • Page 13: Customer Support

    ƒ Field Service & Retrofi ts—When a problem needs immediate attention . ƒ Replacements Parts & Consumables—Order your replacement parts and consumables . ƒ Sentry ProShield Services—Select from four ProShield Guardian service plans providing diff erent levels of support to protect your large system investments with regularly scheduled maintenance .
  • Page 14 This page is intentionally left blank . Sentry Equipment Corp...
