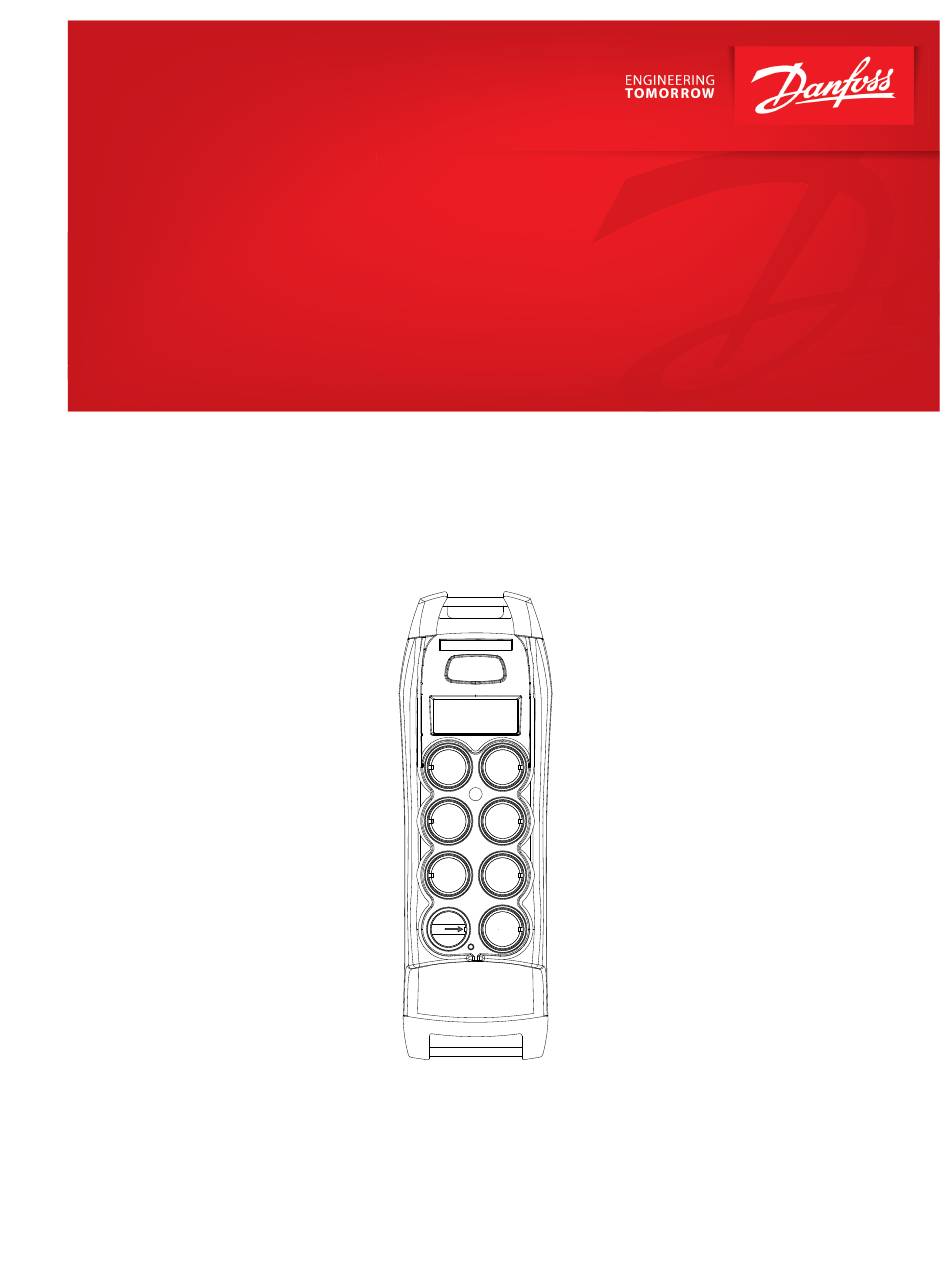

- Page 1 User Manual Remote Control T70 1 Transmitter www.danfoss.com...
- Page 2 User Manual T70 1 Transmitter Revision history Table of revisions Date Changed March 2019 Rebranded to Danfoss Power Solutions 0101 © Danfoss | March 2019 BC300870271580en-000101...
-
Page 3: Table Of Contents
User Manual T70 1 Transmitter Contents Safety instructions General safety....................................4 Safety warnings....................................4 Technical description Dimensions and identification..............................6 Start up.........................................7 Maintenance Maintenance tips....................................9 Troubleshooting....................................9 Charger and battery Technical specifications................................10 Setting up the CB70 battery charger............................10 CB70 status LEDs.................................... 11 Battery charging tips..................................11... -
Page 4: Safety Instructions
• Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. © Danfoss | March 2019 BC300870271580en-000101... - Page 5 User Manual T70 1 Transmitter Safety instructions Quick reference precautions © Danfoss | March 2019 BC300870271580en-000101 | 5...
-
Page 6: Technical Description
User Manual T70 1 Transmitter Technical description T70 1 dimensions and identification The illustration and list below describe dimensions, buttons, LEDs and labels of the T70 1 transmitter. Dimensions in mm Label for crane identification Option: LCD Display Maneuver push button... -
Page 7: Start Up
User Manual T70 1 Transmitter Technical description T70 1 start up Use the information below to properly turn the transmitter ON (OPERATION mode). 1. Place a charged battery in the transmitter. The charge must be done following the instructions of the Battery Chargers' Manual. - Page 8 User Manual T70 1 Transmitter Technical description 4. Press the start button. The green LED will now light to indicate the transmitter is transmitting. Once the Tx is connected, press any maneuver button and its corresponding relay will be activated. Check to make sure all other maneuvers work in a coherent way with the expected movements.
-
Page 9: Maintenance
User Manual T70 1 Transmitter Maintenance T70 1 maintenance tips This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these tips to maximize the lifespan of the product. • Use the hook/belt provided with the transmitter to prevent the transmitter from falling •... -
Page 10: Charger And Battery
User Manual T70 1 Transmitter Charger and battery CB70 and BT06K specifications CB70 battery charger Specification Value Standard AC power supply 230 Vca ± 10%, 50 Optional AC power supply 115 Vca, 60 Hz DC power supply From 10.5 V to 35V... -
Page 11: Cb70 Status Leds
User Manual T70 1 Transmitter Charger and battery 2. Place the batteries in the compartments of the battery charger. 3. Optional: If charging multiple batteries, wait at least 5 seconds before placing the second battery in the other compartment. Possible damage to battery! Be sure to charge batteries in environments with temperatures over 0°... -
Page 12: Cb70 Battery Charger Dimensions
User Manual T70 1 Transmitter Charger and battery CB70 battery charger dimensions Dimensions in mm 131.60 34.50 12 | © Danfoss | March 2019 BC300870271580en-000101... - Page 13 User Manual T70 1 Transmitter © Danfoss | March 2019 BC300870271580en-000101 | 13...
- Page 14 User Manual T70 1 Transmitter 14 | © Danfoss | March 2019 BC300870271580en-000101...
- Page 15 User Manual T70 1 Transmitter © Danfoss | March 2019 BC300870271580en-000101 | 15...
- Page 16 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
