Makita LH1040 Technical Information

Makita LH1040 Technical Information

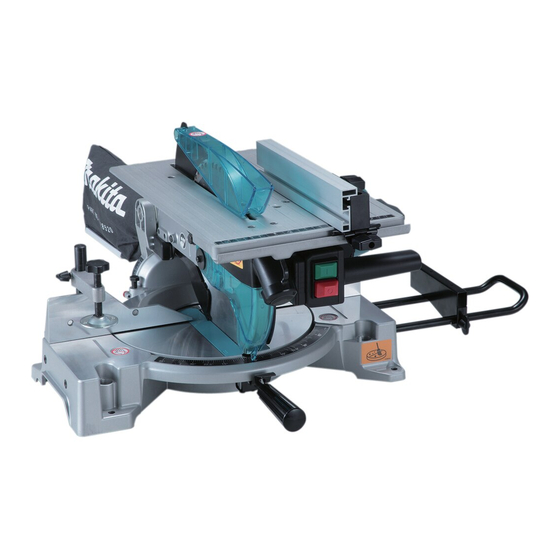

Table top miter saw 260mm (10-1/4")
Hide thumbs Also See for LH1040:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Models LH1040 and LH1040F have been
developed as multi-purpose miter saws.
Installation of a table on Model LS1040
has enabled miter saw and table saw to be
packed in one tool for great versatility.
LH1040F features LED built-in job light
for accurate tracing of ink line in dark places.
S
pecification
Voltage (V)
110
120
220
230
240
Model No.
No load speed: min-
Saw blade: mm (")
Capacity: mm (")
(with 260 mm saw)
Protection against electric shock
Electric brake
LED job light
Cord length: m (ft)
Net weight: kg (lbs)
Cutting capacity as Miter Saw
Bevel angle
Miter angle
90°
45° Left
45° Right
S
tandard equipment
TCT saw blade 260mm .......... 1 pc
Dust bag ................................. 1 pc
Holder set ............................... 1 pc
Sub plate ass'y ........................ 1 pc
Note: The standard equipment listed above may differ from country to country.
O
ptional accessories
Vertical vise
Horizontal vise
LH1040, LH1040F
Table Top Miter Saw 260mm (10-1/4")
Current (A)
Cycle (Hz)
15
50 / 60
15
50 / 60
7.9
50 / 60
7.5
50 / 60
7.2
50 / 60
= rpm.
1
Diameter
Hole diameter
Table saw
Miter saw
90°
69mm x 130mm (2-3/4" x 5-1/8")
93mm x 95mm (3-5/8" x 3-3/4")
69mm x 85mm (2-3/4" x 3-3/8")
93mm x 67mm (3-5/8" x 2-5/8")
69mm x 85mm (2-3/4" x 3-3/8")
93mm x 67mm (3-5/8" x 2-5/8")
Socket wrench 13 ....................... 1 pc
Ring 16 (adaptor for saw blades
with 25mm hole diameter) ......... 1 pc
Triangular rule ............................ 1 pc
Holder set
Assorted TCT saw blades
Dimensions: mm (")
Length (L)
530 (20-7/8)
Width (W)
476 (18-3/4)
Height (H)
535 (21)
Continuous Rating (W)
Input
1,650
1,650
1,650
1,650
1,650
LH1040
4,800
255 - 260 (10 - 10-1/4 )
15.88 (5/8) 30.0 ( for European countries)
40 (1-9/16 )
See the table below.
Double insulation
Yes
No
2.5 ( 8.2 )
13.7 (30.2 )
L
Max. Output(W)
Output
1,000
1,000
1,000
1,000
1,000
LH1040F
Yes
45° Left bevel
35mm x 130mm (1-3/8" x 5-1/8")
53mm x 95mm (2-1/16" x 3-3/4")
35mm x 65mm (1-3/8" x 2-9/16")
49mm x 42mm (1-15/16" x 1-5/8")
35mm x 91mm (1-3/8" x 3-5/8")
49mm x 67mm (1-15/16" x 2-5/8")
Set plate ................................... 1 pc
Blade cover .............................. 1 pc
Push stick ................................. 1 pc
Guide rule rule ........................ 1 pc
PRODUCT
P 1 / 20
H
W
2,300
2,300
2,300
2,300
2,300

Advertisement

loading

Related Manuals for Makita LH1040

Summary of Contents for Makita LH1040

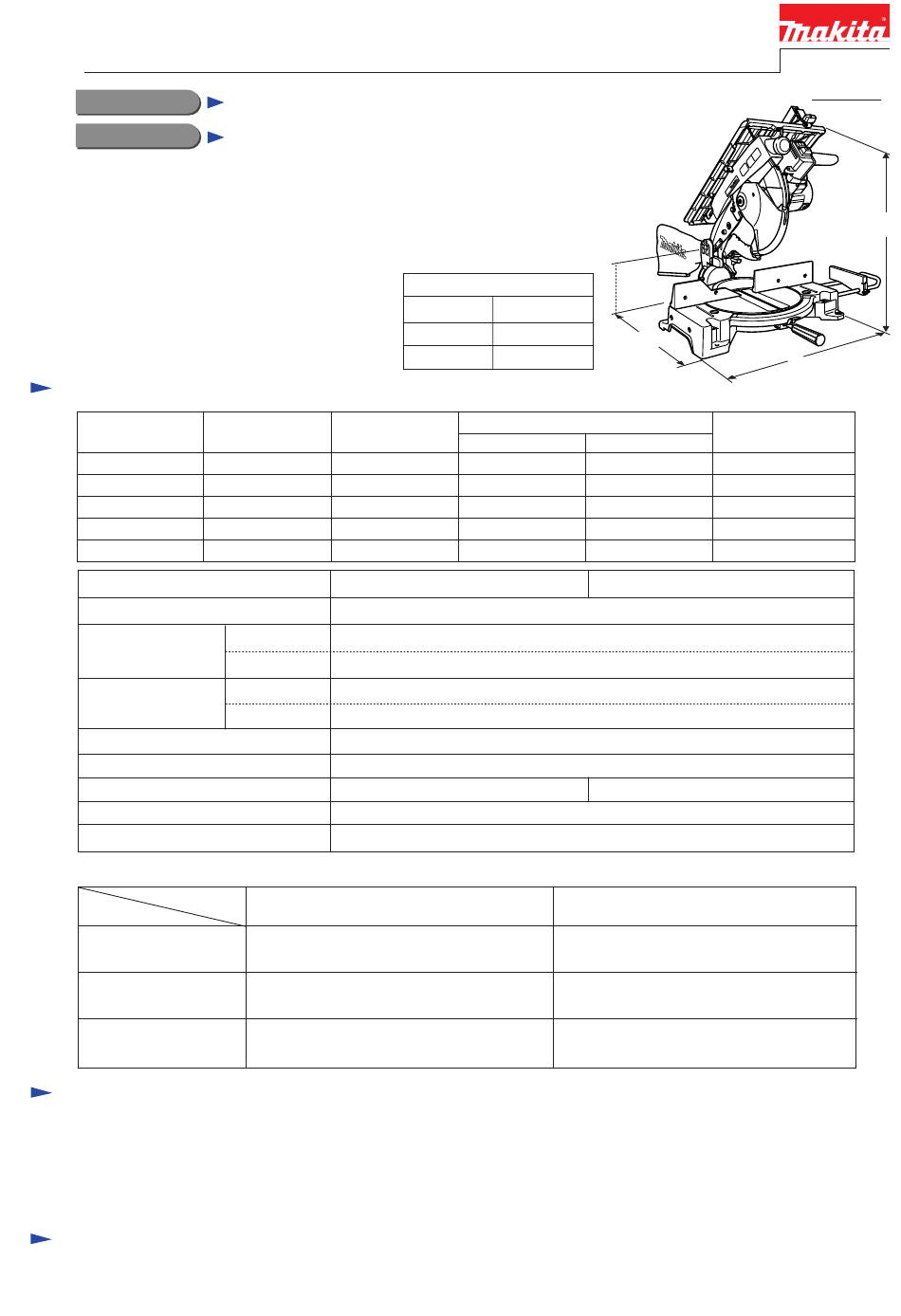

  • Page 1 LH1040, LH1040F Description Table Top Miter Saw 260mm (10-1/4") ONCEPT AND MAIN APPLICATIONS Models LH1040 and LH1040F have been developed as multi-purpose miter saws. Installation of a table on Model LS1040 has enabled miter saw and table saw to be Dimensions: mm (")
  • Page 2 2) Apply an appropriate amount of Makita grease N No.1 to each of the listed below. Although these slide surfaces are factory-greased with Makita grease N No.1, you apply other type of grease such as Makita grease N No.2 or the like.
  • Page 3 P 3 / 20 epair [2] LUBRICATION Position Parts item Portion to be lubricated Hex bolt M10 Threaded portion Rod 16 The surface where (127) Arm Complete contacts. The portion where (145) turn base contacts, when arm complete pivoting. Arm complete Accepting portion for pivoting (1) Blade Case Stopper pin The groove to which O ring 5 is mounted.
  • Page 4 4. Remove 8 M5x16 countersunk head screws. Then, table can be removed from blade case. See Fig.2-2. And remove compression spring 27 from blade case. See Fig.2-2. (In case of model LH1040 without fluorescent job light) 4A. While lifting up the table, remove light circuit from the table. Then, table can be removed from blade case.
  • Page 5 P 5 / 20 epair < 5 > Removing blade case section 1. Remove living knife. See Fig.3-1. 2. Remove lever 54, support plate and pipe 9-126. See Fig.3-1. The pipe 9-126 removed in this step, is used as a jig for removing rod 16 which functions as a pivot for blade case. 3.
  • Page 6 P 6 / 20 epair < 5 > Removing blade case section 7. Lower the blade case section to the possible lowest position, and lock it at the same position with stopper pin. See Fig.3-6. 8. While further pressing the blade case section, insert two screwdrivers into the side hole of blade case. See Fig.3-7.
  • Page 7 P 7 / 20 epair < 5 > Removing blade case section Ring Spring Removing Jig" 11. Put the removed blade case section on the turn base of arbor press, And set 1R306 " between the two screwdrivers, inserted in the step of Fig.3-7. See Fig.3-9. 12.
  • Page 8 P 8 / 20 epair < 5 > Mounting blade case section 1. Take the reverse step of removing, while paying attention to the following matters. A. Scrape off the scratched portion of rod 16 with file, before mounting. Mount rod 16 from the side of hex socket head bolt M6x10 . See Fig.4-1. B.
  • Page 9 P 9 / 20 epair < 8 > Disassembling motor section 1. Remove carbon brush. See FIg.6-1. And then, remove table from blade case section as illustrated in Fig.2-1 and Fig.2-2. 2. Remove lever 54 and support plate. See Fig.6-2. 3.
  • Page 10 P 10 / 20 epair < 10> Disassembling safety block mechanism 1. Lock the blade case section at the possible highest position, with stopper pin. 2. Remove lock lever by unscrewing 2 M4x10 pan head screws. Then, lock lever can be removed from lock pin. See Fig.8-1.
  • Page 11 P 11 / 20 epair <11> Assembling safety block mechanism 4. Adjust the position of lock lever so that the distance between lock lever and safety cover is approx. 1mm. See Fig.9-4. And then, finally tighten lock lever with 2 Mx10 pan head screws. Fig.9-4 Lock lever Safety cover...
  • Page 12 P 12 / 20 epair <12> Removing turn base 3. Remove hex lock nut M8x13 and flat washer 8. Now turn base can be removed from base. See Fig.10-3. Fig.10-3 Hex lock nut M8x13 Socket wrench 13 which comes with the product. Turn base Flat washer 8 Base...
  • Page 13 P 13 / 20 epair <15> Squaring adjustment of guide fence 1. Set the bevel angle 90°. 2. Provisionally tighten M8x30 hex bolt (B) into the smaller screw hole on the left side of guide fence when viewed from operator's position. 3.
  • Page 14 P 14 / 20 ircuit diagram (1) LH1040F with fluorescent job light for * High voltage area in Europe, * High voltage area in Saudi Arabia * Cyprus * Kuwait * Bhutan Color index of lead wires' sheath Black Blue White Purple Brown...
  • Page 15 P 15 / 20 ircuit diagram (2) LH1040F with fluorescent job light for Low voltage in Great Britain Color index of lead wires' sheath Black Blue White Purple Brown Orange Yellow Noise suppressor Light switch box Switch for light Light circuit Line filter Varnish tetron tube...
  • Page 16 P 16 / 20 ircuit diagram (1) LH1040 without fluorescent job light, for * High voltage area in Europe, * High voltage area in Saudi Arabia * Cyprus * Kuwait * Bhutan Color index of lead wires' sheath Black Orange...
  • Page 17 P 17 / 20 ircuit diagram (2) LH1040 without fluorescent job light for Low voltage in Great Britain Color index of lead wires' sheath Black Blue White Purple Brown Orange Yellow Noise suppressor Line filter Varnish tetron tube Terminal block...
  • Page 18 P 18 /20 iring diagram under Housing Cover Terminal block Insulated connector Motor housing Housing cover Lead wire of soft start circuit Punched hole Do not push insulated connector into motor housing through the punched hole. Lead holder Soft start circuit Lead wire of soft start circuit has to be held with the lead holder.
  • Page 19 P 19 /20 iring diagram Under clamp plate Clamp plate Rib A Field lead wire Before securing clamp plate, (orange) put the lead wires between rib A and B. Soft start lead wire (Purple) Rib B Put line filter in the space illustrated Line filter above.
  • Page 20 P 20 / 20 iring diagram Light Switch Box Cord of light circuit Light switch box Switch for light circuit Put lead wires in the lead holder. Lead holder Insulated connector Put insulated terminal in the space shown in the above illustration.

This manual is also suitable for:

Lh1040f
