Panasonic SA-DT300E Service Manual

Av control receiver, remote control transmitter, colour silver type
Hide thumbs Also See for SA-DT300E:
Table of Contents

Advertisement

Quick Links

AD0203066C2
AV Control Receiver
SA-DT300E
SA-DT300EB
SA-DT300EG
Colour
(S)...........Silver Type
SPECIFICATIONS
1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-DT300E

Summary of Contents for Panasonic SA-DT300E

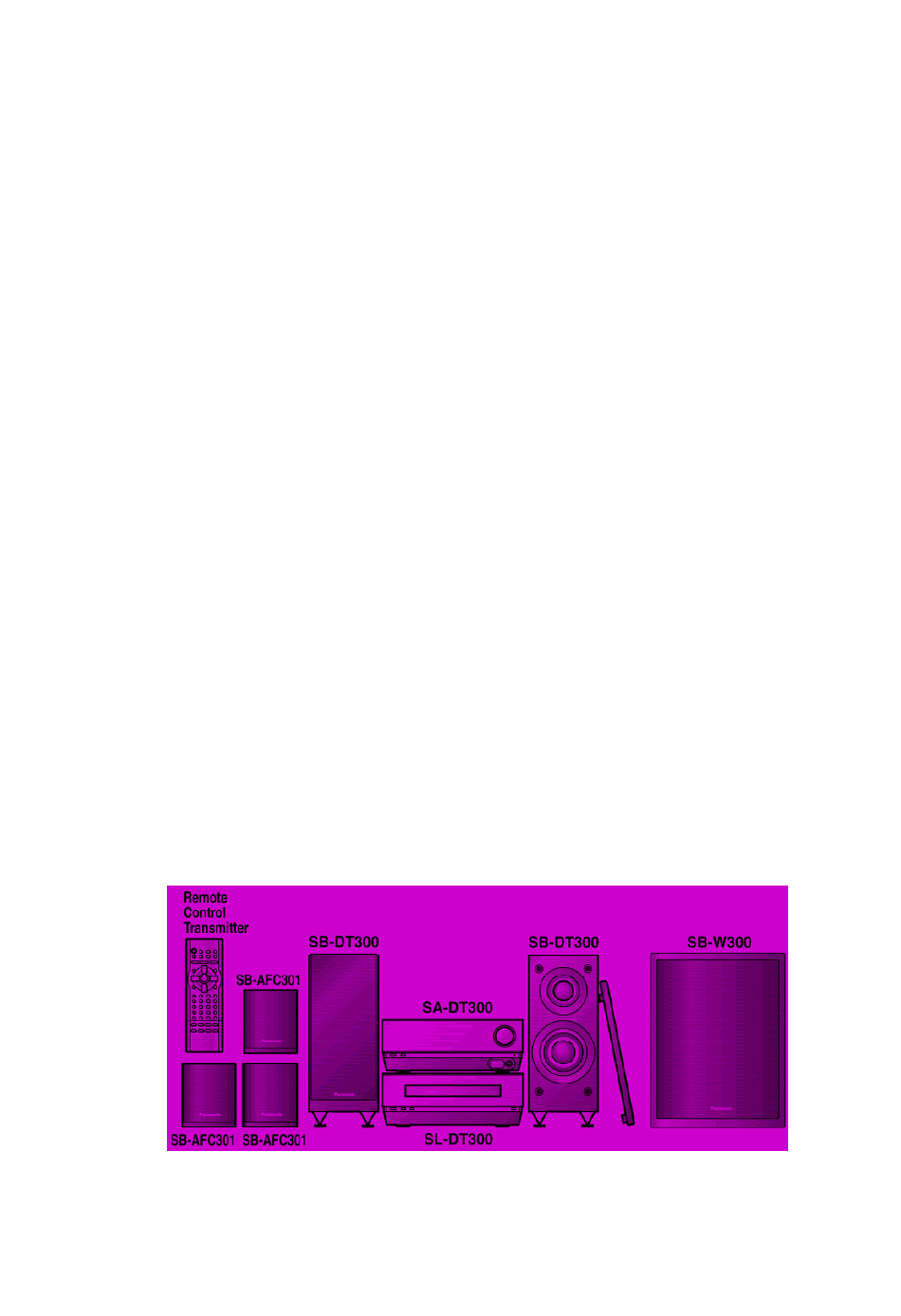

  • Page 1 AD0203066C2 AV Control Receiver SA-DT300E SA-DT300EB SA-DT300EG Colour (S)...Silver Type SPECIFICATIONS...
  • Page 2 1. Before Repairs...

  • Page 3: Protection Circuitry

    2. Determine the cause of the problem and correct it. 3. Switch ON the power once again. Note: When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again. 3. Accessories AC mains lead for SA-DT300E, SA-DT300EG (RJA0019-2X)........1 pc.
  • Page 4 AC mains lead for SA-DT300EB (RJA0053-3X)........1 pc. AM loop antenna (REK0063)........1 pc. FM indoor antenna (RSA0007)........1 pc. Video cable...
  • Page 5 (RJL1P019B15)......1 pc. Speaker cables (REX1129)........2 pcs. Remote control transmitter (N2QAJB000049)......1 pc. Remote control batteries (R6/LR6, “AA”, UM-3).....2 pcs. Note: These are available on sales route.
  • Page 6 Antenna plug adaptor for SA-DT300EB only (SJP9009)........1 pc. RCAJ adaptor (VFA0151-2)........1 pc. Cleaning cloth for main unit (RFE0088-1)........1 pc. Sheet of speaker-cord stickers (RQCA0950)........1 pc.

  • Page 7: Caution For Ac Mains Lead

    Sheet of speaker feet*1 (small, 25 feet).........1 pc. Sheet of speaker feet*1 (large, 10 feet)........1 pc. Spikes*1..........4 pcs. Sheet of speaker pads*1 (8 pads).........1 pc. Note: The accessories (indicated *1) are packed with SB-DT300. 4. Caution for AC Mains Lead...

  • Page 8: Location Of Controls

    5. Location of Controls...

  • Page 9: Self-Diagnostic Function

    6. Self-Diagnostic Function This unit is equipped with a self-diagnostic function which, in the event of a malfunction, automatically displays a code indicating the nature of the malfunction. Use this self-diagnostic function when servicing the unit. 6.1. To display the malfunction code U70 DVD: Automatically displays on the AV control receiver when a malfunction occurs.
  • Page 10 6.2. To return to the normal display 1. For U70 DVD - Press some operation buttons on the AV control receiver. - To re-display the code, switch the power off (Standby/on button), and then switch power back on again. 2. For F61 - If F61 is displayed, the power will automatically be switched off and the standby indicator will light up.

  • Page 11: Operation Checks And Component Replacement Procedures

    2. Breakage of flat cable. (Check and replace.) 3. If the problem is not corrected by items 1 and 2 above, this indicates a faulty IC. SA-DT300: IC941 (C2CBHG000095) SL-DT300: IC402 (C2BBFD000350) Check these ICs and replace. 6.3.2. F61 Problem or condition When the Standby/on switch is switched on, it automatically switches back off, making it impossible to switch power on.
  • Page 12 Check the digital amp P.C.B. (A side) as shown below.
  • Page 13 Check the digital amp P.C.B. (B side) as shown below.
  • Page 14 7.2. Checking for the FL P.C.B. Follow the (Step 1) , (Step 2) of item 7.1. Check the FL P.C.B. as shown below.
  • Page 15 7.3. Checking for the main P.C.B. Follow the (Step 1) - (Step 7) of item 7.1.
  • Page 18 Check the main P.C.B. as shown below.
  • Page 19 7.4. Replacement for the FL P.C.B., headphone P.C.B. and operation P.C.B. Follow the (Step 1) , (Step 2) of item 7.1. Follow the (Step 1) , (Step 2) of item 7.2.
  • Page 22 8. How to replace IC (TAS5100) with reading terminal block IC (TAS5100) used in the digital amp P.C.B. has a radiating plate on its backside (the side in contact with the P.C.B.), the radiating terminal block having been...
  • Page 23 soldered to the pattern part of the P.C.B.. For the replacement of the IC,the following instructions should be observed. IC001 - IC006 shown in the drawing below are ICs each equipped with a radiating terminal block. [Disassembly] 1. Use a blower and heat the IC (about 20 seconds).
  • Page 24 2. In about the 20 seconds, the legs of the IC begin fusing. Then remove the IC by use of a pair of tweezers.
  • Page 25 [Reassembly] 1. Put solder-paste thinly and evenly over the radiating plate on the bottom of a new IC for replacement. 2. Clean out the former solder that has been sticking to the pattern part on the base plate. 3. Place the IC on the pattern part of the base plate. (Make the IC legs and pattern part meet completely.) 4.

  • Page 26: To Supply Power Source

    5. Use the blower and heat the IC (about 20 seconds). 9. To Supply Power Source...

  • Page 27: Schematic Diagram Notes

    This unit is designed to operate on power supplied from system connected. When a component requires service, use the system connections to supply power source. For system connections, refer to Fig.9-1. Fig. 9-1. 10. Schematic Diagram Notes This schematic diagram may be modified at any time with the development of new technology.

  • Page 28: Schematic Diagram

    safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high- quality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacturer´s specified parts shown in the parts list. The supply part number is described alone in the replacement parts list. Voltage and signal line : Positive voltage line : Negative voltage line...
  • Page 29 12. Printed Circuit Board Diagram 13. Type Illustration of ICs, Transistors and Diodes...

  • Page 30: Wiring Connection Diagram

    14. Wiring Connection Diagram 15. Block Diagram 16. Terminal Function of ICs 16.1. IC941(C2CBHG000095): System Control Function Terminal Name 1 FL SCK Clock signal output for IC901 FL CS Chip select signal output for IC901 3 FL RST Reset signal output for IC901 Data signal output for DSP DATA Clock signal output for DSP...
  • Page 31 Function Terminal Name DSP1 DSP chip select signal output 19 MUTE Muting signal output for Front F&SW speakers, Sub woofer 20 MUTE Muting signal output for Center, C&S Surround speakers Not used, open Not used Not used DOUT DVD& DVD communication data signal output D OUT 25 DVD D...
  • Page 32 Function Terminal Name Latch signal output for IC501 LTCH 44 E2P DIO Not used, connected to GND 45 E2P CLK Not used, connected to GND 46 E2P CE Not used, connected to GND Headphone connecting detect signal input 48 VR ATT Volume attenuator signal output CR timer signal input TIMER...

  • Page 33: Replacement Parts List

    <IA>: German, Italian, French <IB>: Swedish, Netherlands, Danish <IC>: English <ID>: Spanish, Polish, Czech The parenthesized indications in the Remarks columns specify the areas. (E): SA-DT300E (EB): SA-DT300EB (EG): SA-DT300EG The marking in Ref No. indicate as follow. *2: FL circuit The marking [RTL] indicates the retention time is limited for this item.
  • Page 34 All parts are supplied by MESA. Ref. No. Part No. Part Name & Description Remarks XTB3+8JFZ SCREW REM0106 FAN UNIT REZ1446 RGK1508-K BOTTOM COVER RGN2248-K NAME PLATE (EG) RGN2249-K NAME PLATE (EB) RGN2250-K NAME PLATE RGR0329B-A1A REAR PANEL RHD30078 SCREW RKA0137-K RUBBER RMA1538...
  • Page 35 Ref. No. Part No. Part Name & Description Remarks RJA0019-2X AC MAINS LEAD (E,EG) RJA0053-3X AC MAINS LEAD (EB) REK0063 AM LOOP ANTENNA RQCA0950 SPEAKER-CORD STICKERS RQCB0169 SERVICE CENTER LIST RQT6385-D OPERATING <IA>(EG) INSTRUCTIONS RQT6386-H OPERATING <IB>(EG) INSTRUCTIONS RQT6387-B OPERATING <IC>(E,EB) INSTRUCTIONS RQT6388-R...
  • Page 36 Ref. No. Part No. Part Name & Description Remarks C101,02 ECJ1VB1C104K 16V 0.1U C103,04 ECUV1H101JCV 50V 100P F1H1H101A004 C105,06 ECJ1VB1C104K 16V 0.1U C107,08 ECUV1H101JCV 50V 100P F1H1H101A004 C109,10 ECJ1VB1C104K 16V 0.1U C111,12 ECUV1H101JCV 50V 100P F1H1H101A004 C121-32 ECJ1VB1C104K 16V 0.1U C133-36 ECUV1H180JCV 50V 18P...
  • Page 37 C342,43 ECST1CY105 16V 1U...
  • Page 38 Ref. No. Part No. Part Name & Description Remarks C344 ECUV1H101JCV 50V 100P F1H1H101A004 C345 ECUV1H220JCV 50V 22P ECJ1VC1H220J C346 ECJ1VB1C104K 16V 0.1U C347 ECUV1H220JCV 50V 22P ECJ1VC1H220J C348 ECUV1H101JCV 50V 100P F1H1H101A004 C349,50 ECUVNH103KBV 50V 0.01U F1H1H103A748 C351,52 ECUV1H101JCV 50V 100P F1H1H101A004 C353...
  • Page 39 C609 ECUVNH103KBV 50V 0.01U F1H1H103A748 Ref. No. Part No. Part Name & Description Remarks C610 ECJ1VC1H050C 50V 5P C611 ECUVNE223KBV 25V 0.022U F1H1E223A050 C612 ECJ1VC1H120J 50V 12P C613 ECUVNJ105KBV 6.3V 1U F1H0J105A002 C614 ECUVNH103KBV 50V 0.01U F1H1H103A748 C615 ECA0JAK101XB 6.3V 100U C616 ECJ1VB1C104K 16V 0.1U...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks C745,46 ECQE1104KF3 100V 0.1U C747 ECJ1VB1H102K 50V 1000P C748 F1J1H104A679 50V 0.1U C749 ECJ3YB1E105K 25V 1U C750 ECES1VV472T 35V 4700U C751 F1J1H104A679 50V 0.1U C752 ECUVNH103KBV 50V 0.01U F1H1H103A748 C753 ECA1CAK470XB 16V 47U C754 F1J1H104A679 50V 0.1U...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks CN904 K1KA07B00051 CONNECTOR(7P) CP301 RJT100W11 CONNECTOR(11P) K1KA11A00093 CP702 RJT100W07 CONNECTOR(7P) K1KA07A00082 D001-04 B0ACCK000005 DIODE D051,52 MA8120M DIODE MAZ81200M D301-04 MA2J11100L DIODE D451 MA2J11100L DIODE D453 MA2J11100L DIODE D456 MA2J11100L DIODE D457 RL1N4003N02 DIODE B0AAMM000009...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks IC011-13 C0ZBZ0000650 IC014-16 C0JBAZ001870 IC017 C0JBAD000153 IC018,19 C0JBAB000423 IC020 C0JBAF000162 IC022,23 C0FBAJ000009 IC024 C0FBAK000008 IC051 C0DAZZC00003 IC201 NJU7313AMT2 C0JZAS000002 IC202 NJM4558MTE1 C0ABBB000109 IC301 BU4053BCFE2 IC302 M62456FPE1 C1BB00000389 IC303,04 NJM4558MTE1 C0ABBB000109 IC305 M5218AP C0AABB000055 IC501...
  • Page 43 Ref. No. Part No. Part Name & Description Remarks Q051 B1DEGL000004 TRANSISTOR Q301-05 B1GFGCAA0001 TRANSISTOR Q306,07 UN5115TX TRANSISTOR UNR511500L Q309,10 UN5115TX TRANSISTOR UNR511500L Q311 B1ABGC000001 TRANSISTOR Q314,15 UN5115TX TRANSISTOR UNR511500L Q451 UNR521100L TRANSISTOR Q452 UN5115TX TRANSISTOR UNR511500L Q453 2SD1819A0L TRANSISTOR Q454 2SB12190WL TRANSISTOR...
  • Page 44 R123 26 ERJ3GEYJ133V 1/16W 13K...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks R127,28 ERJ3GEYJ100V 1/16W 10 R129-31 ERJ6GEYJ220 1/10W 22 R132 ERJ3GEYJ4R7V 1/16W 4.7 R134 ERJ3GEYJ4R7V 1/16W 4.7 R136 ERJ3GEY0R00V CHIP JUMPER R137 ERJ3GEYJ105V 1/16W 1M R138 ERJ3GEYJ102V 1/16W 1K R139 ERJ3GEYJ105V 1/16W 1M R140 ERJ3GEYJ102V 1/16W 1K...
  • Page 46 R355 ERJ3GEYJ473V 1/16W 47K D0GB473JA002...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks R356 ERJ3GEYJ272V 1/16W 2.7K R357 ERJ3GEYJ332V 1/16W 3.3K D0GB332JA002 R358 ERJ3GEYJ223V 1/16W 22K D0GB223JA002 R359 ERJ3GEYJ104Z 1/16W 100K R360 ERJ3GEYJ102V 1/16W 1K R362 ERJ3GEYJ272V 1/16W 2.7K R363 ERJ3GEYJ332V 1/16W 3.3K D0GB332JA002 R364 ERJ3GEYJ223V 1/16W 22K...
  • Page 48 R442 ERJ3GEYJ332V 1/16W 3.3K D0GB332JA002...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks R451 ERJ3GEYJ472V 1/16W 4.7K R452 ERJ3GEYJ103Z 1/16W 10K R453,54 ERJ3GEYJ472V 1/16W 4.7K R465 ERJ3GEYJ101V 1/16W 100 R466 ERJ3GEYJ683V 1/16W 68K D0GB683JA002 R467 ERJ3GEYJ104Z 1/16W 100K R468 ERG1SJ220 1W 22 R471,72 ERJ3GEY0R00V CHIP JUMPER R502 ERJ3GEYJ223V...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks R723 ERJ3GEYJ101V 1/16W 100 R725 ERJ3GEYJ393V 1/16W 39K D0GB393JA002 R727 ERJ3GEYJ333V 1/16W 33K D0GB333JA002 R728 ERJ3GEYJ392V 1/16W 3.9K R729 ERJ3GEYJ472V 1/16W 4.7K R730 ERQ16NKW2R2E 1/6W 2.2 R731 ERJ3GEYJ332V 1/16W 3.3K D0GB332JA002 R732 ERJ3GEYJ222V 1/16W 2.2K...
  • Page 51 R929,30 ERJ3GEYJ102V 1/16W 1K...
  • Page 52 Ref. No. Part No. Part Name & Description Remarks R931 ERJ3GEYJ101V 1/16W 100 R932 ERJ3GEYJ102V 1/16W 1K R933 ERJ3GEYJ223V 1/16W 22K D0GB223JA002 R935,36 ERJ3GEYJ223V 1/16W 22K D0GB223JA002 R937 ERJ3GEYJ103Z 1/16W 10K R938 ERJ3GEYJ562V 1/16W 5.6K D0GB562JA002 R939 ERJ8GEYJ103V 1/8W 10K R941,42 ERJ3GEYJ223V 1/16W 22K...

  • Page 53: Cabinet Parts Location

    RJ51,52 ERJ3GEY0R00V CHIP JUMPER Ref. No. Part No. Part Name & Description Remarks RJ53 ERJ8GEY0R00V CHIP JUMPER D0YFR0000002 RJ54,55 ERJ3GEY0R00V CHIP JUMPER RJ56 ERJ8GEY0R00V CHIP JUMPER D0YFR0000002 RJ72-74 ERJ8GEY0R00V CHIP JUMPER D0YFR0000002 RJ501-04 ERJ6GEY0R00V CHIP JUMPER RJ601 ERJ3GEY0R00Z CHIP JUMPER RL702 RSY0040M-0 RELAY...
  • Page 54 F020300000YM/KH 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
