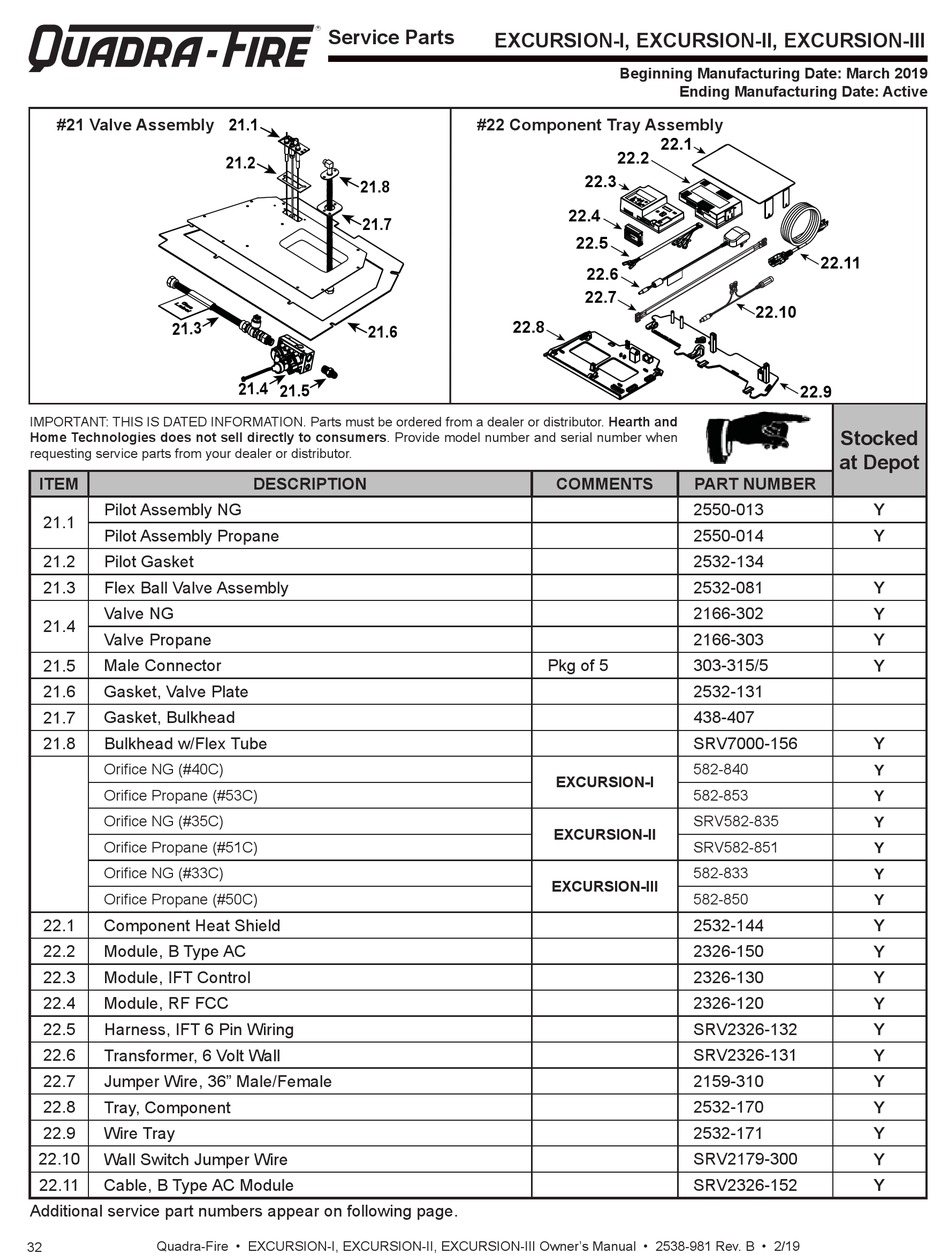

Quadra-Fire EXCURSION-I Owner's Manual page 32

#21 Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
ITEM
Pilot Assembly NG
21.1
Pilot Assembly Propane
21.2 Pilot Gasket
21.3 Flex Ball Valve Assembly
Valve NG
21.4
Valve Propane
Male Connector
21.5
Gasket, Valve Plate
21.6
21.7 Gasket, Bulkhead
21.8 Bulkhead w/Flex Tube
Ori ce NG (#40C)
Ori ce Propane (#53C)
Ori ce NG (#35C)
Ori ce Propane (#51C)
Ori ce NG (#33C)
Ori ce Propane (#50C)
22.1 Component Heat Shield
22.2 Module, B Type AC
22.3 Module, IFT Control
22.4 Module, RF FCC
22.5 Harness, IFT 6 Pin Wiring
22.6 Transformer, 6 Volt Wall
22.7
Jumper Wire, 36" Male/Female
22.8 Tray, Component
22.9 Wire Tray
22.10 Wall Switch Jumper Wire
22.11 Cable, B Type AC Module
Additional service part numbers appear on following page.
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Owner's Manual • 2538-981 Rev. B • 2/19
