Summary of Contents for Britax Steelcraft Sprint

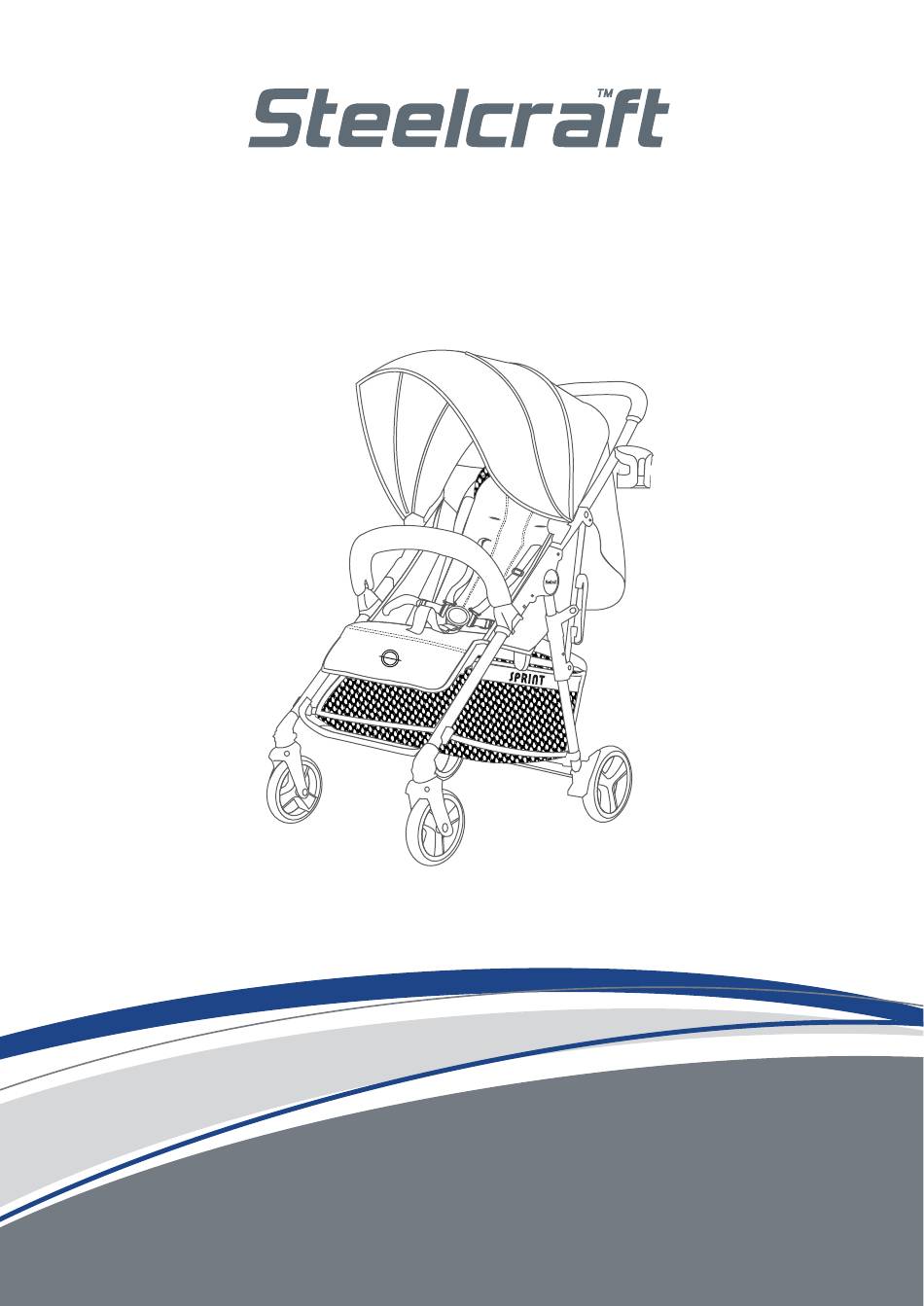

- Page 1 SPRINT LAYBACK STROLLER KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE www.britax.com.au Series SG1009...
- Page 2 IMPORTANT NOTES IMPORTANT NOTES: ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. • USE GREAT CARE WHEN USING THE STROLLER ON STAIRS, ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
- Page 3 • MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE STROLLER. • DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED FOR USE WITH THIS STROLLER BY BRITAX. • IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH THIS STROLLER.
-
Page 4: Manual Handling Techniques
MANUAL HANDLING TECHNIQUES The SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •... -
Page 5: Opening The Stroller
ASSEMBLING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES. • RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE FRAME. • WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS. -
Page 6: Assembling The Stroller
ASSEMBLING THE STROLLER OPENING THE STROLLER B Lift the handle upwards until the stroller is fully opened & locked in position. Push down on the the handle to confirm the frame is locked. ATTACHING THE SWIVEL WHEELS A Take each swivel wheel and push it down firmly into each of the wheel mouldings until you hear a ‘click ’... -
Page 7: Important Note
ASSEMBLING THE STROLLER REMOVING THE SWIVEL WHEELS A Locate the metal latch underneath the swivel wheel fork and press in to release & remove the swivel wheel. ATTACHING THE REAR WHEEL ASSEMBLY IMPORTANT NOTE: BEFORE ATTACHING THE REAR WHEEL ASSEMBLY TO THE STROLLER, FASTEN THE BASKET SNAPS TOGETHER TO SECURE THE BASKET TO THE STROLLER FRAME. - Page 8 ASSEMBLING THE STROLLER ATTACHING THE REAR WHEEL ASSEMBLY A Tip the frame over to install the rear wheel assembly. B Lower the rear wheel assembly onto the rear legs of the stroller frame and then push down until the locking pins on the stroller frame are fastened securely through the holes on the rear wheel assembly.
- Page 9 ASSEMBLING THE STROLLER ATTACHING THE REAR WHEEL ASSEMBLY...
- Page 10 ASSEMBLING THE STROLLER ATTACHING THE CANOPY IMPORTANT NOTE: The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN. The canopy on this product will not give your child total protection from the harmful rays of the sun. A Slide the canopy mouldings onto the canopy mounting brackets on both sides of the stroller frame until they connect together.
-
Page 11: Attaching The Arm Bar
ASSEMBLING THE STROLLER ATTACHING THE ARM BAR CAUTION: WHEN A CHILD IS IN THE STROLLER IT IS RECOMMENDED THAT THE ARM BAR BE ATTACHED TO THE STROLLER AT ALL TIMES. A Push the arm bar clips onto each side of the stroller frame until they snap into place. -
Page 12: Stroller Operation
STROLLER OPERATION ATTACHING THE CUP HOLDER WARNING: DO NOT PLACE HOT LIQUIDS IN THE CUP HOLDER. PLEASE NOTE: The maximum weight placed in the cup holder should not exceed 0.50kg A Line the cup holder mounting pin with the cup holder bracket on the handle and push the cup holder downwards until it locks into the bracket. -
Page 13: Using The Brakes
STROLLER OPERATION USING THE BRAKES WARNING: ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY. A To lock the rear wheels, press the red brake lever down. Push the stroller backwards and forwards to confirm brakes are locked. B To unlock the rear wheels, push the red brake lever up. -
Page 14: Using The Swivel Wheels
STROLLER OPERATION USING THE SWIVEL WHEELS PLEASE NOTE: Always lock the swivel wheels when using the stroller on rough surfaces as this will minimise wheel wobble. The swivel wheels should only be locked when the wheels are in the trailing position (wheels under frame). A To lock the front wheels into the fixed position, press the swivel lock up until you hear a ‘click’... -
Page 15: Adjusting The Leg Rest
STROLLER OPERATION ADJUSTING THE LEG REST IMPORTANT NOTES: • THE LEG REST FEATURE IS PROVIDED FOR YOUR CHILD'S COMFORT. • THE LEG REST IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT. • DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG REST. IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED. -
Page 16: Adjusting The Backrest
STROLLER OPERATION ADJUSTING THE BACKREST WARNINGS: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN LESS THAN 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE. - Page 17 STROLLER OPERATION ADJUSTING THE BACKREST B To raise the backrest, hold the backrest along the bottom edge and lift to select a more upright seating position.
-
Page 18: Adjusting The Canopy
STROLLER OPERATION ADJUSTING THE CANOPY A To adjust the canopy, open by pulling canopy forward, or close by pushing the canopy backward. B To open the canopy window, pull the canopy window flap away from the canopy. Roll the canopy window flap up and secure with the elastic loop and toggle. -
Page 19: Using The Harness
STROLLER OPERATION USING THE HARNESS WARNING: USE THE HARNESS AT ALL TIMES. • ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED HARNESS. • THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD. • NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE STROLLER, BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY POSE A STRANGULATION HAZARD. - Page 20 STROLLER OPERATION USING THE HARNESS A Always apply the brakes. Place child in seat. Slip one shoulder strap over each shoulder. Position crotch strap between legs. Push the buckle tongues (A) on waist straps through the tongue guides (B) on shoulder straps.
- Page 21 STROLLER OPERATION USING THE HARNESS C Press in and hold the centre crotch buckle button and insert the waist buckle tongues into the crotch buckle assembly. IMPORTANT: Pull on each waist buckle tongue to make sure they are locked into the crotch buckle assembly. If not, repeat above procedure.
- Page 22 STROLLER OPERATION USING THE HARNESS E Tighten or loosen the waist straps, hold and lift the 4 bar harness adjuster and pull the harness strap to adjust to the desired fit. The waist strap needs to fit firmly around the child. 4 bar harness adjuster...
- Page 23 STROLLER OPERATION USING THE HARNESS G The stroller seat has 3 sets of harness slots at different heights to accommodate the child. The shoulder straps must be positioned near the child’s shoulders. To change the shoulder harness height, push the shoulder harness tongue out of the current harness slot and through the back of the seat and then pull the shoulder harness buckle tongue through the desired slot.
-
Page 24: Using The Tether Strap
STROLLER OPERATION USING THE TETHER STRAP WARNINGS: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY. • THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES AND USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE STROLLER ROLLING AWAY OR TIPPING OVER. - Page 25 STROLLER OPERATION USING THE STROLLER PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • Always ensure you bend your knees where appropriate and take due care when lifting the frame. • With your hand through the wrist tether strap loop, push the stroller holding the handle.
- Page 26 STROLLER OPERATION FOLDING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • REMOVE THE CHILD FROM THE STROLLER BEFORE COMMENCING ANY FOLDING OPERATION. • FOLD THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE YOUR HANDS. •...
-
Page 27: Folding The Stroller
STROLLER OPERATION FOLDING THE STROLLER F Locate the backrest recline lever (1) on the back of the stroller. Pull the recline lever up and push the backrest forwards. G Hold the Pull strap (3 “Pull to fold) located under the backrest recline lever. - Page 28 STROLLER OPERATION FOLDING THE STROLLER H Locate the folding lever, (2 “Lift to fold”) on the side of the stroller and lift the Pull strap (3 “Pull to fold) and the folding Lever (2 ”Lift to fold”) upwards at the same time. CAUTION CAUTION...
- Page 29 STROLLER OPERATION FOLDING THE STROLLER I The stroller will start to fold. Continue to lift the pull strap (3 “Pull to fold) until the stroller has fully folded. J The frame lock will automatically engage when the stroller is fully folded.
-
Page 30: Lifting And Carrying The Stroller
STROLLER OPERATION LIFTING AND CARRYING THE STROLLER CAUTION... -
Page 31: Care And Maintenance
CARE AND MAINTENANCE • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight for extended periods of time. • Removable fabric covers and trims may be cleaned using warm water with household soap or mild detergent. - Page 32 CUSTOMER SERVICE 1300 303 330 - Australia 0508 688 822 - New Zealand Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia.
